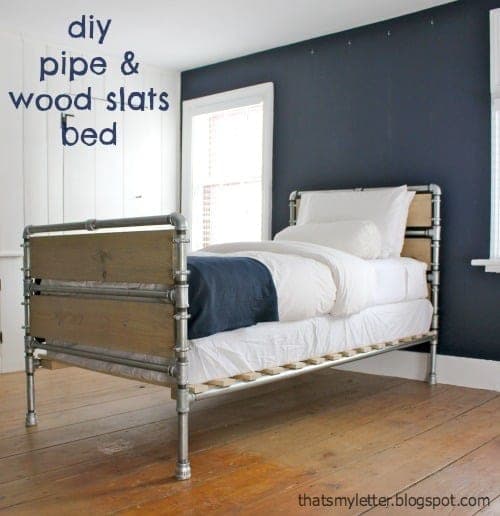

This is more plumbing than carpentry: a bed frame assembled entirely from threaded galvanized pipe and fittings, with pine slats suspended between the horizontal pipe rails using split-ring pipe hangers. The look is unmistakably industrial, and the beauty of it is that nothing is welded — it all threads together, so you can take it apart to move it.
The honest truth from the build is that pipe assembly is fiddly: no glue or thread sealant on the connections, hand-tighten only, and expect to screw and unscrew things several times to get every piece landing where it should. Pipe threads mean the two ends of a rail tighten in opposite directions, so there's a give-and-take — the standard advice is to run a horizontal pipe fully into the completed leg first, then connect the other end. Have your hardware store cut and thread the long 1" pipes to length; that's not a home job.
The wood is simple: cut the slats, predrill 1-1/2" in from each outer edge, and screw a split-ring hanger there, making sure each hanger is perpendicular to the board. Slats hang off the horizontal pipes and get centered with even spacing before you tighten the hangers with equal pressure on both screws. Build the mattress platform from the 2x4 supports and furring strips separately to carry the mattress. Because it mixes fasteners, tolerances, and a lot of trial fitting, budget patience.
| Item | Qty |
|---|---|
| 1x8 board, 8 ftWood slats. | 2 each |
| 1x8 board, 6 ft | 1 each |
| 2x4 stud, 8 ftMattress platform supports. | 2 each |
| 1x3 furring strip, 8 ftMattress support slats. | 8 each |
| 1" galvanized pipe, 75" (cut/threaded at store) | 2 each |
| 1" galvanized pipe, 18" | 4 each |
| 3/4" galvanized pipe, 36"Horizontal supports. | 5 each |
| 1" galvanized nipple, 8" | 14 each |
| 1" galvanized close nipple | 4 each |
| 1" threaded tee | 14 each |
| 1" 90-degree elbow | 4 each |
| 1" x 1-1/4" coupling (feet) | 4 each |
| 1" threaded coupling | 2 each |
| 1" x 3/4" bushing | 10 each |
| 1" split-ring pipe hanger | 20 each |
| Wood screws, 1-1/2" and 2" | 60 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Wood slats1x8 | 5 | 3/4" × 7 1/4" × 37 3/4" |
| Platform supports2x4 | 2 | 1 1/2" × 3 1/2" × 74" |
| Mattress support slats1x3 furring | 16 | 3/4" × 2 1/2" × 41 1/4" |
Buy 13 boards at 8 ft.
2 boards
3 boards
8 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Use no glue or sealant on any pipe or pipe-to-wood connection. Hand-tighten only until you're confident of placement — expect to screw and unscrew repeatedly to get everything aligned. Have the store cut and thread the long 1" pipes to length; that's not a job to do at home.
Assemble only one leg of the footboard, screwing the fittings together until snug. Leave the rest for now — building one complete leg first gives you a fixed reference to fit everything else against.
Prepare only the foot portion of the other leg — the 1"x1-1/4" coupling, a 1"x8" nipple, and a tee — and connect the 1"x75" pipe to this foot portion only. This gives you the two ends to hang slats between.
Cut the wood slats and predrill 1-1/2" in from each outer edge for two split-ring pipe hangers. Screw the hangers on with 2" screws, making sure each hanger sits perpendicular to the board.
Slip one end of a slat into the completed leg side, then screw in the next 1"x8" nipple — but do not tighten the pipe hangers yet. Add a tee, then a 3/4" horizontal support (run it fully into the completed leg first, then connect the other end). Center each slat with even spacing top and bottom, then tighten its hangers with equal pressure on both screws. Repeat up the frame, adding elbows and 18" pipes where the plan calls for corners.
Build the mattress platform separately: attach the furring-strip cross supports to the 2x4 supports with countersunk 1-1/2" screws, spacing the strips evenly. Set the platform in the frame, add the mattress, and you're done.
