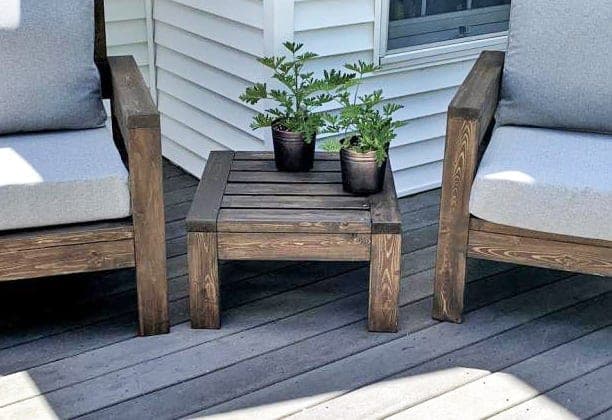

Four 2x4s, fifty screws, no glue, no jig: this is close to the minimum viable table, and it looks better than it has any right to because the design leans into the chunkiness instead of hiding it. The top boards sit INSIDE an apron frame rather than on top of it, so the finished surface reads as a solid slab with a border.
The cut list is really a formula — every dimension is given as 'or desired size minus X': legs are overall height minus 1-1/2", side aprons are depth minus 3", the top infill is width minus 7". Build it as drawn (about 24" x 20" x 18" tall) or resize it into a coffee table or bench-height seat without changing anything about the method.
The joinery is just screws driven smart: wide-spaced, angled in opposing directions where the inner frame meets the legs, which locks the joint against racking far better than parallel screws would. Pick 'red-toned' 2x4s at the store (usually a hem-fir mix that takes stain evenly) and check each board for crown before buying — a table this simple has nowhere for a twisted board to hide.
| Item | Qty |
|---|---|
| 2x4, 8 ftRed-toned boards (hem-fir) stain more evenly than yellow whitewood. Sight each board for crown before buying. | 4 each |
| Construction screws, #8 x 2-3/4", star drive, exterior | 50 each |
| Exterior finishA partial quart does it — or leave it raw and let it grey. | 1 quart |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| LegsOr 1-1/2" less than your desired overall height. | 4 | 1 1/2" × 3 1/2" × 16 1/2" |
| Top frame, long sidesOr desired overall depth. | 2 | 1 1/2" × 3 1/2" × 24" |
| Leg side apronsOr overall depth minus 3". | 2 | 1 1/2" × 3 1/2" × 21" |
| Inside frameOr overall depth minus 6". | 2 | 1 1/2" × 3 1/2" × 18" |
| Top infill and open-side apronsOr overall width minus 7". | 8 | 1 1/2" × 3 1/2" × 17" |
Buy 4 boards at 8 ft.
4 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Screw a leg side apron to two legs, flush on the inside faces, two screws per joint. Build two identical assemblies.
Attach a 24" top board across the top of each leg pair with three screws — one at each end, one in the middle. These two boards are the long sides of the top's border frame.
Screw the two 18" inside-frame pieces between two of the 17" boards, two screws per joint, forming a rectangle. This frame is what carries the top infill.
Set the inner frame between the two leg assemblies and drive four screws per side — spaced wide apart and ANGLED in different directions. The opposing angles are the trick: parallel screws pull out together under racking; opposed ones lock the joint like dovetailed nails.
Lay the remaining 17" boards inside the frame, snug them evenly, and screw each down with one screw per end.
Sand everything, round the top edges well, and finish (or don't — bare framing lumber outdoors just goes silver). Then make the second one, because side tables are like bookends.
