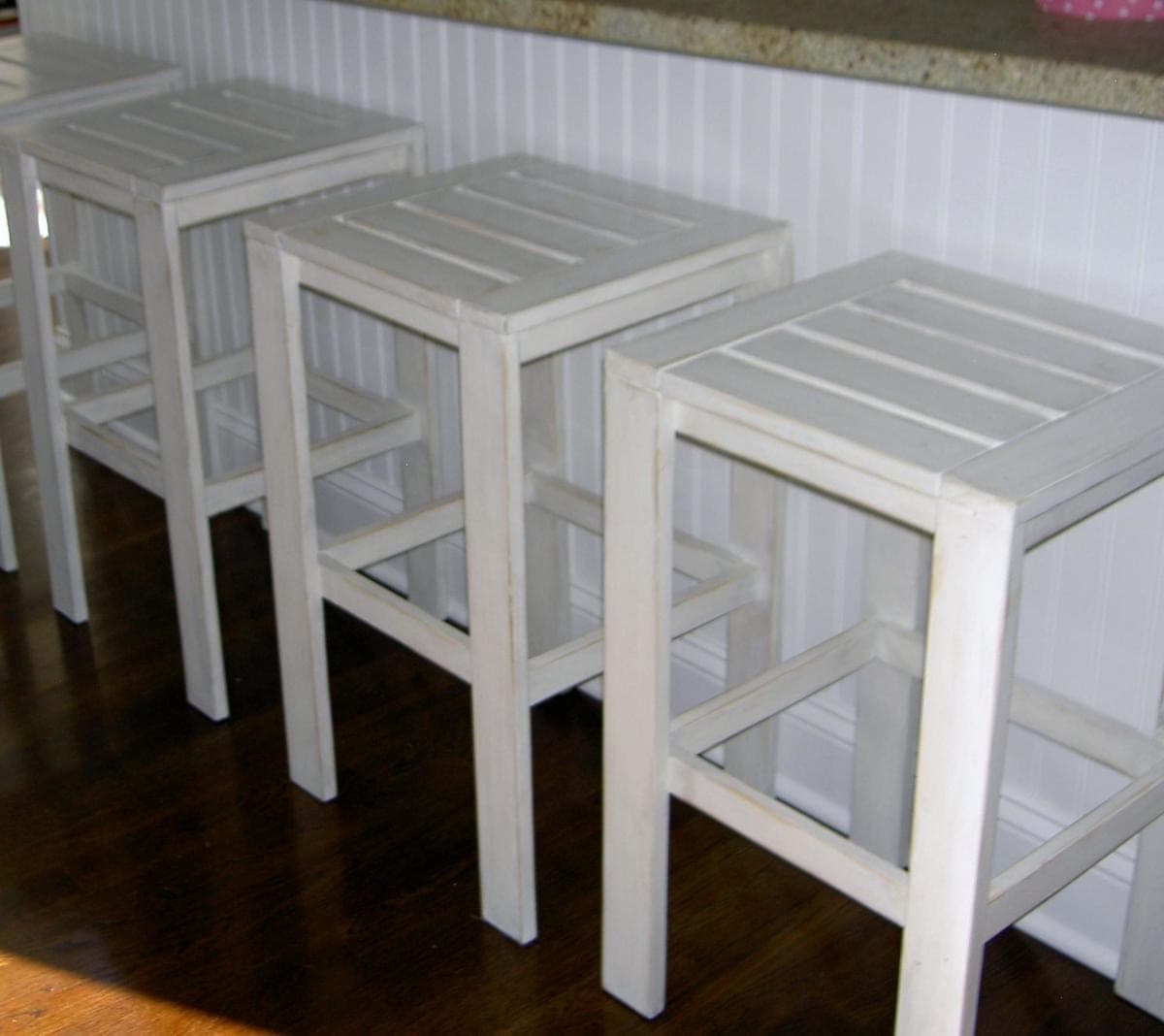

These are the companion stools for a patio bar table: a slatted seat with breadboard ends on four straight legs, all from 1x2 and 1x3 stock. They're deliberately plain and repeatable, so you can build a matching set in an afternoon, and everything is glue plus screws — no angles, no joinery to fuss over.
Build the seat frame first and make sure it's square, because the breadboard ends and slats all reference off it. A handy trick from the plan: when you attach the breadboard ends, set a seat slat in between them as a spacer to get the gap right without measuring. The seat slats space evenly so rain drains through — important for anything living outside.
Since these are outdoor pieces, use exterior-rated screws and glue and finish them properly — at minimum a base coat, touching up screw holes with paintable silicone or filler, a light sand, and a topcoat. Build them tall to suit a bar-height table (a counter-height table wants shorter legs), and check they sit level and don't rock before you call one done.
| Item | Qty |
|---|---|
| 1x2 board, 8 ftAprons, supports, bottom supports. ~12 ft total. | 2 each |
| 1x3 board, 8 ftLegs, slats, breadboard ends. ~18 ft total. | 3 each |
| Exterior screws, 2" and 1-1/4" | 50 each |
| Waterproof wood glue | 4 oz |
| Exterior finish | 12 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Seat side aprons1x2 | 2 | 3/4" × 1 1/2" × 13" |
| Seat end aprons1x2 | 2 | 3/4" × 1 1/2" × 12 3/4" |
| Seat supports1x2 | 2 | 3/4" × 1 1/2" × 11 1/2" |
| Breadboard ends1x3 | 2 | 3/4" × 2 1/2" × 14 1/2" |
| Seat slats1x3 | 5 | 3/4" × 2 1/2" × 10 3/4" |
| Legs1x3 | 4 | 3/4" × 2 1/2" × 29 1/4" |
| Bottom supports, long1x2 | 2 | 3/4" × 1 1/2" × 13" |
| Bottom supports, short1x2 | 2 | 3/4" × 1 1/2" × 12 3/4" |
Buy 5 boards at 8 ft.
3 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the seat frame from the side and end aprons and the two supports with glue and 2" screws. Make sure it's square — the slats and breadboard ends all reference off it.
Attach the 1x3 breadboard ends with 1-1/4" screws and glue. Set a seat slat between them as a spacer to line them up without measuring.
Screw the five seat slats to the supports with glue and 1-1/4" screws, spaced evenly so rain drains through.
Attach the four legs to the seat aprons with 1-1/4" screws and glue. Check the stool sits level and doesn't rock.
Attach the longer bottom supports to both the shorter supports and the legs with 1-1/4" screws and glue, tying the legs together low. Give the stool at least a base finish coat, touch up screw holes with paintable silicone or filler, sand lightly, and add a topcoat.
