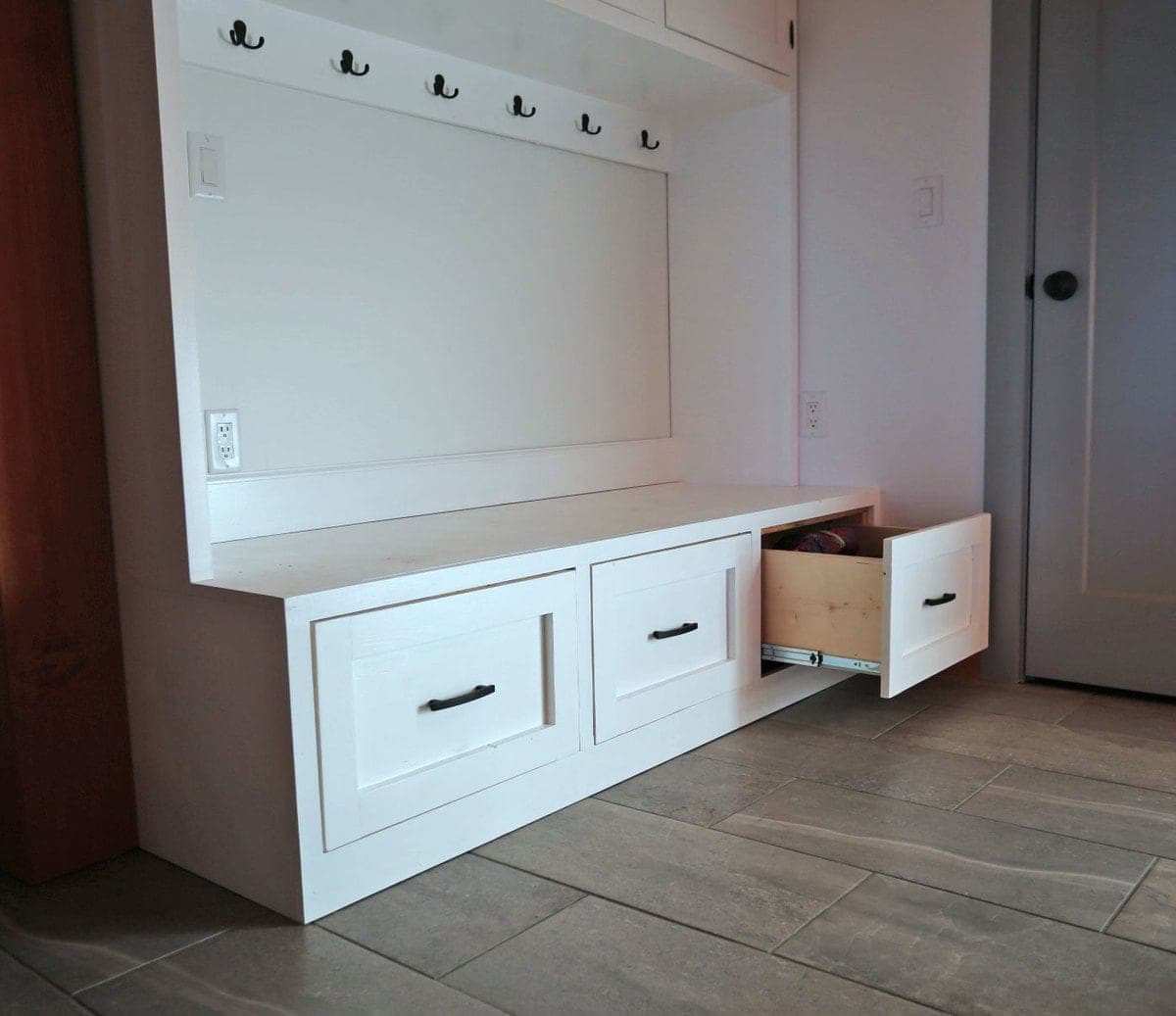

This bench is a gateway build: it looks like cabinetry, but underneath it's two 2x4 ladder frames stood on edge, skinned in plywood, with drawer boxes riding full-extension slides between them. If you've been screwing 2x4 furniture together and want to graduate toward cabinets, this is the project that teaches drawers without asking you to build a carcass.
The plan's own emphasis is the right one: the two frames must match EXACTLY, because the drawer slides bridge between them — a quarter inch of mismatch and the drawers rack and bind forever. Build the second frame on top of the first. Equally load-bearing advice: the drawer cut list says CUT TO FIT in capital letters. Read your specific slides' instructions, measure your actual openings, and build the boxes to those numbers; the listed dimensions assume standard 1/2"-clearance side-mount slides and true 3/4" stock.
The finishing move — 1x2/1x4 face frame on the cabinet, 1x3 frames on the drawer fronts with an even 1/8" reveal — is what turns shop-grade materials into a piece that lives in the front hall. Take time on those reveals; they're the whole first impression.
| Item | Qty |
|---|---|
| Plywood, 3/4" cabinet grade, 4x8 sheetRipped into two 96" x 23-7/8" strips — sides and top. | 1 each |
| 2x4, 8 ftThe two frames and the slide spacers. | 5 each |
| 1x10, 8 ftDrawer boxes. | 3 each |
| Plywood, 1/4", 48" x 48"Drawer bottoms. | 1 each |
| 1x2, 8 ftFace frame — 12 ft needed. | 2 each |
| 1x4, 6 ftFace frame bottom rail. | 1 each |
| 1x3, 8 ftDrawer face frames. | 2 each |
| Full-extension side-mount drawer slidesBuy FIRST and read their instructions — the drawer boxes are built to the slides, not to the plan. | 3 each |
| Knobs or handles | 3 each |
| Screws, #10 x 3", self-tapping | 40 each |
| Pocket hole screws, 1-1/4" | 40 each |
| Brad nails, 1-1/4" and 3/4", 18 ga | 150 each |
| Wood glue | 8 oz |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame rails | 4 | 1 1/2" × 3 1/2" × 70 1/2" |
| Frame uprights | 8 | 1 1/2" × 3 1/2" × 14 1/4" |
| Side panelsPlywood | 2 | 3/4" × 17 1/4" × 23 7/8" |
| TopPlywood | 1 | 3/4" × 23 7/8" × 72" |
| Drawer fronts/backs1x10CUT TO FIT your slides and openings — listed sizes assume 1/2"-clearance slides. | 6 | 3/4" × 9 1/4" × 19" |
| Drawer sides1x10Cut to fit — match your slide length. | 6 | 3/4" × 9 1/4" × 23 7/8" |
| Drawer bottoms1/4" plywoodCut to fit. | 3 | 1/4" × 20 1/2" × 23 7/8" |
| Face frame top rail1x2 | 1 | 3/4" × 1 1/2" × 72" |
| Face frame bottom rail1x4 | 1 | 3/4" × 3 1/2" × 72" |
| Face frame stiles1x2 | 4 | 3/4" × 1 1/2" × 13" |
| Drawer face frame rails1x3Approximate — sized to an even 1/8" reveal. | 6 | 3/4" × 2 1/2" × 12 3/4" |
| Drawer face frame stiles, end drawers1x3Approximate. | 4 | 3/4" × 2 1/2" × 17" |
| Drawer face frame stiles, middle drawer1x3Approximate. | 2 | 3/4" × 2 1/2" × 16 1/4" |
Buy 16 boards at 8 ft.
5 boards
Cut the frame parts and assemble two ladder frames — 3" self-tapping screws, or 1-1/2"-setting pocket holes with 2-1/2" pocket screws.
Build the second frame stacked on top of the first, corner to corner. The drawer slides span between these frames; 'identical' isn't a virtue here, it's a functional requirement.
Attach the plywood side panels to the frame ends — 2" screws, or nails and glue. The bench silhouette appears.
Read the slide instructions first, then build three boxes to fit your openings: for standard 1/2"-clearance side-mounts, the box is the opening width minus 1", sides as long as the slides.
Pocket-holing the boxes? Put the front pocket holes INSIDE the box (the drawer face frame hides interior faces later is not true — the outside face shows through the opening). Bottoms go on with glue and 3/4" brads or narrow-crown staples.
Set 2x4 scraps inside the bench as spacers, rest each cabinet-side slide member on its spacer, and screw to the frame. The spacer trick guarantees left and right slides sit at identical heights — which is the entire game with drawers.
Attach the drawer-side slide members to the boxes per the slide instructions, and set each box into its cabinet slides.
Cycle every drawer fully. Binding or rubbing gets fixed NOW — slide screws loosened, shimmed, re-driven — because after the face frames go on, access gets worse and motivation gets weaker.
Fasten the plywood top with 1-1/4" brads and glue (screws hold better but show — your call on a piece this visible). Ease the front edge well; the backs of knees meet it every shoe-tying.
Pocket-hole the 1x2/1x4 face frame together flat on the bench (3/4" setting, 1-1/4" screws), then attach the completed frame to the front with brads and glue. Building it as a unit first is why the reveals come out even.
Build the three 1x3 drawer face frames and attach each to its box with brads and glue, holding an even 1/8" gap on all sides — playing-card stacks make good shims. Add the knobs, finish the whole piece, and reclaim the front hall.
No reviews yet
Sign in to review this plan or share your build.
No reviews yet. Be the first to build this.
1 board
1 board
3 boards
1 board
2 boards
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
