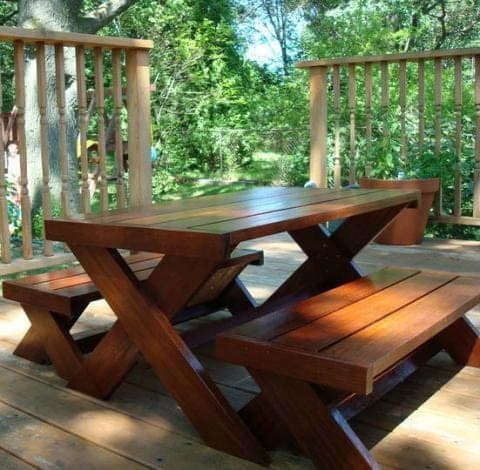

This is a kid-scaled picnic table with two loose benches, built in a clean modern style rather than the classic A-frame. The legs are hollow mitered boxes made from 1x4 — four boards mitered at 45° and joined into a square-section leg — which looks far more finished than a plain 2x4 leg and hides all the fasteners inside.
The design is quietly smart about outdoor durability. The tops (both table and benches) are slatted with a 1/2" gap between boards and framed by 2x2 ends, so water drains straight through and there are no flat pockets where it can sit and rot the wood. That detail is worth preserving if you substitute materials — a solid top would trap water and fail years sooner.
Separate benches instead of attached seats is a deliberate choice for small children: they can climb in and out without straddling a fixed seat, and you can pull the benches away to wipe up. The mitered legs are the only part that needs care — cut the 45s accurately and fasten from the insides of the legs to hide the screws. Use exterior screws and an outdoor finish (or a rot-resistant species) if it lives outside; the plan uses standard lumber, so upgrade for longevity.
| Item | Qty |
|---|---|
| 2x4, 8 ftTable and bench top boards. | 4 each |
| 2x2, 8 ftTop end frames. | 1 each |
| 1x4, 8 ftMitered box legs. | 3 each |
| Exterior screws, 1-1/4 in | 1 box |
| Exterior screws, 2-1/2 in | 1 box |
| Wood glue (waterproof)Type III / exterior for an outdoor build. | 1 bottle |
| Wood filler | 1 each |
| Exterior finish | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Table leg pieces (long)1x4Ends mitered 45°; 20-1/2" short-point to long-point. Review layout before cutting. | 4 | 3/4" × 3 1/2" × 21 1/2" |
| Table leg fill pieces1x4Cut to measurement, ends mitered 45°. | 8 | 3/4" × 3 1/2" × 10 1/4" |
| Tabletop ends2x2 | 2 | 1 1/2" × 1 1/2" × 19 1/2" |
| Tabletop boards2x41/2" gap between boards for drainage. | 5 | 1 1/2" × 3 1/2" × 31 1/2" |
| Bench leg pieces (long)1x4Both ends mitered 45°. Review layout before cutting. | 8 | 3/4" × 3 1/2" × 9 1/4" |
| Bench leg fill pieces1x4Cut to measurement, one end mitered back 45°. | 16 | 3/4" × 3 1/2" × 4 5/8" |
| Bench top ends2x2 | 4 | 1 1/2" × 1 1/2" × 11 1/2" |
| Bench seat boards2x4 | 6 | 1 1/2" × 3 1/2" × 28" |
Buy 9 boards at 8 ft.
4 boards
1 board
4 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Review the leg layout before cutting, then cut the leg boards with 45° miters so the short-point to long-point measures 20-1/2". Mark all four legs as shown, and fasten the leg boards together with glue and 1-1/4" screws into mitered box legs. Drive the screws from the insides of the legs so the holes don't show on the finished faces.
Measure and cut the remaining leg fill pieces to complete the box-leg sections, and fasten with glue and 1-1/4" screws, again hiding the screw holes on the inside. A fully closed box leg is stiffer and reads as solid.
Fasten the 2x2 ends to the tabletop boards with glue and 2-1/2" screws, leaving a 1/2" gap between the boards — that gap is what drains water and keeps the top from rotting. Then attach the ends to the legs with 2-1/2" screws. The design leaves no flat pockets for water to sit, so keep those gaps.
Build the two sets of bench legs exactly as you built the table legs in step 1, mitered and boxed, using glue and 1-1/4" screws with the holes hidden inside.
Build the two bench seats the same way as the tabletop — 2x2 ends fastened to the 2x4 seat boards with 1/2" drainage gaps — then attach the legs. Fill screw holes, sand every edge and corner smooth for little hands and legs, and apply an exterior finish. Loose benches let small kids climb in and out and let you pull everything apart to clean.
