Mobile Mud Rack

Instructions

1. 1Cut Materials

   Using the provided cut list, cut all the parts needed for this project. Label the part as you go.

2. 2Cut ends (shape)

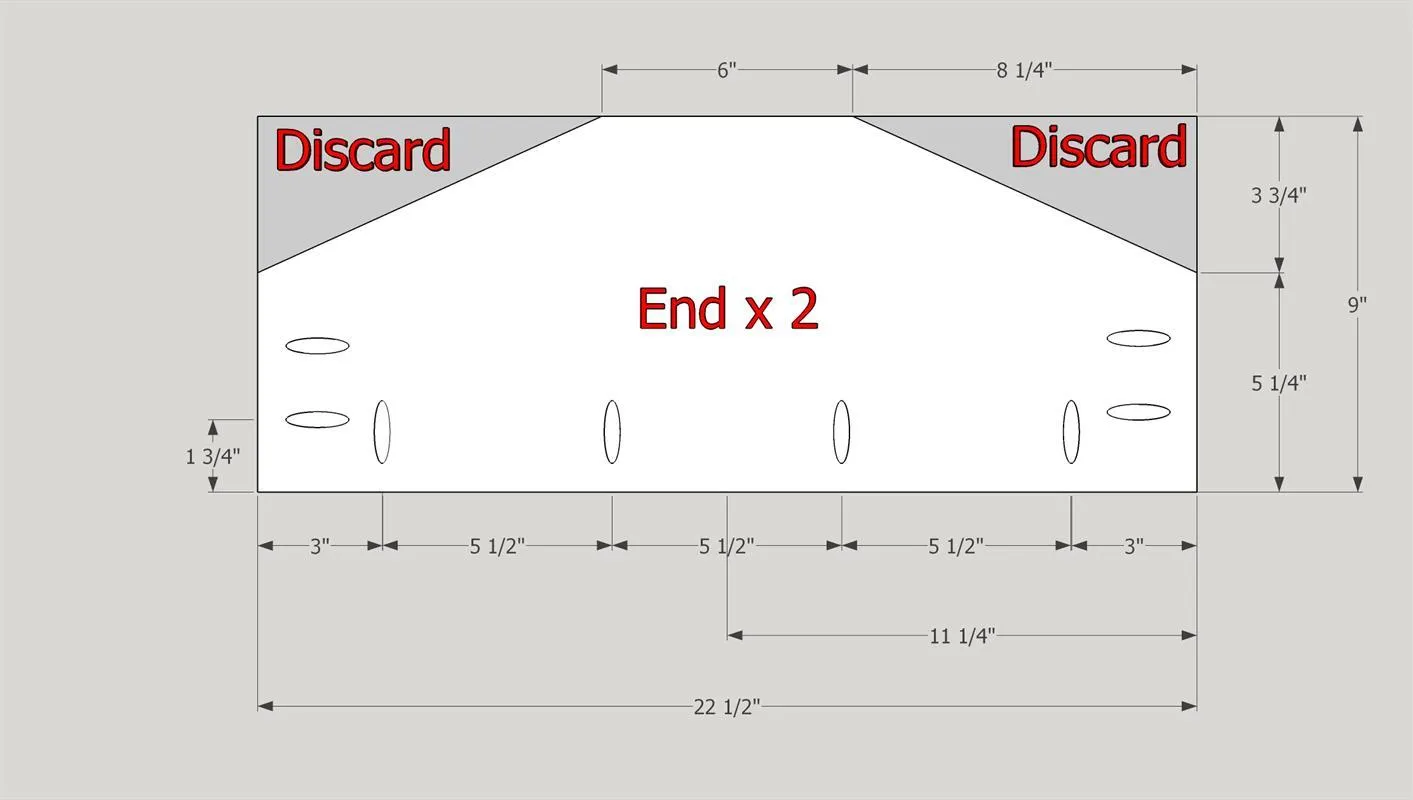

   We will start with the 2 end parts. They are 9" x 22-1/2" Using the drawing attached to this step, you'll need to layout and cut the "discard" portion. Depending on your skill level, you can clamp the 2 ends together and cut them at the same time. I used a jig saw to cut mine, but a circular saw would work too.



3. 3Drill Pocket Holes

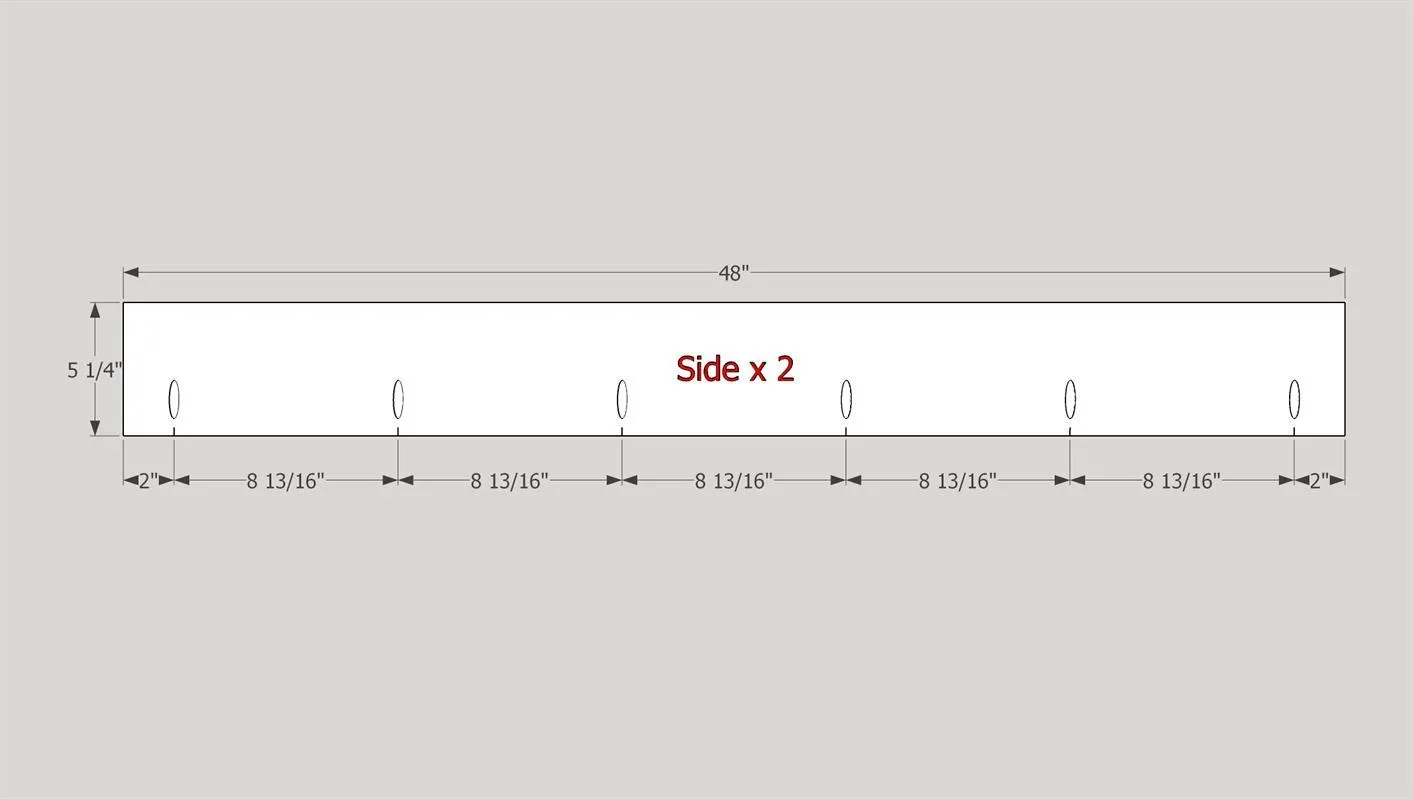

   Pull the following parts: sides x 2 / ends x 2 - Using the attached drawings, layout and mark all your locations for holes. Prior to drilling your pocket holes - check your jig and your drill collar to make sure it is set to 3/4" - Once you setup, drill all your pocket holes. Use the drawing for the last step for the pocket hole layout on the end.



4. 4Base 1 of 2

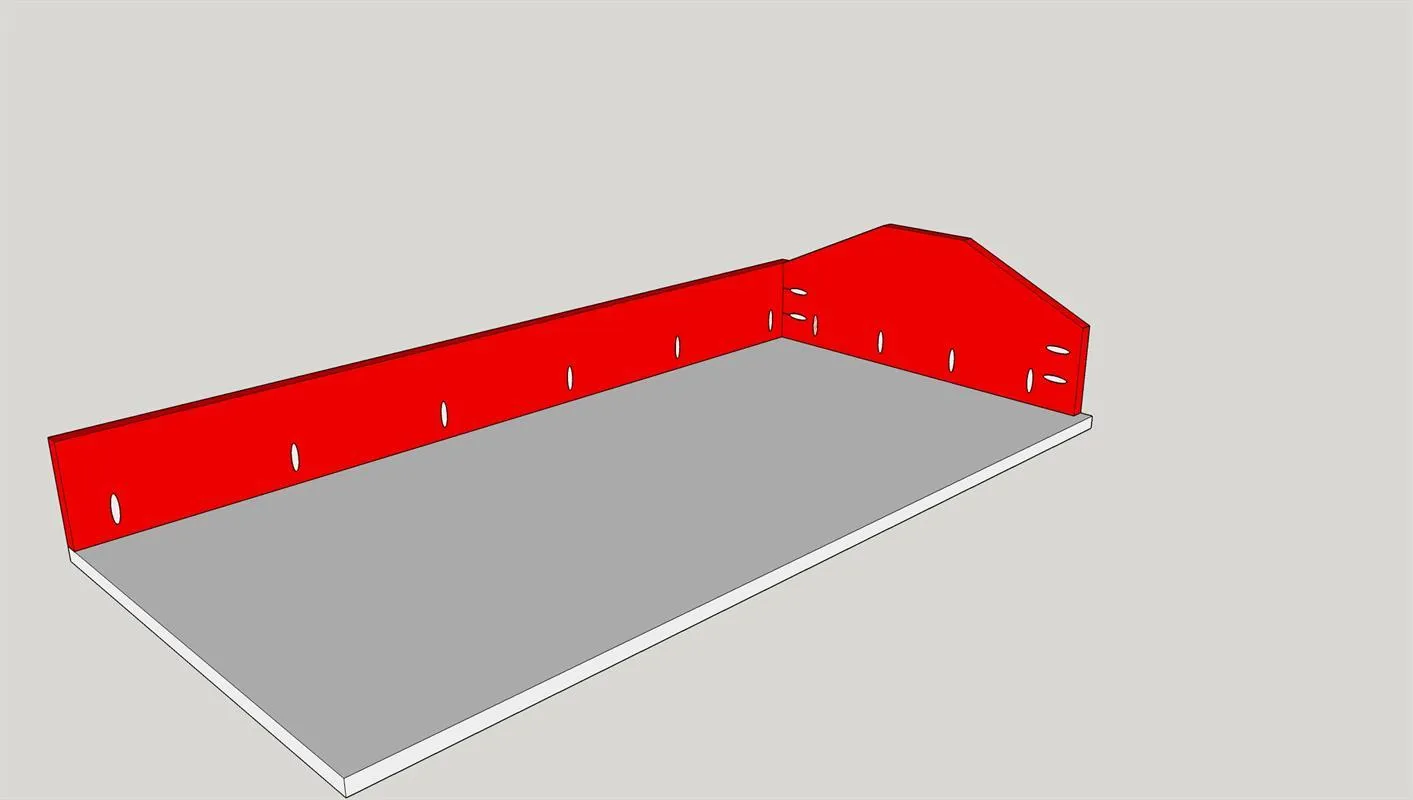

   Using with the "base" start with (1) end & (1) side. Align on the edge of the "base". Before screwing these together, run a bead of wood glue on the bottom edge of the side and the end parts. Keeping parts aligned, secure with 1-1/4" KREG screws - *It is the end user's choice to plug the holes with paintable Kreg Paint Grade Wood Plug. My suggestion would be to Plug as you go. Plugs will need to be cut or sanded flush as they are made to fit multiple depth holes *



5. 5Base 2 of 2

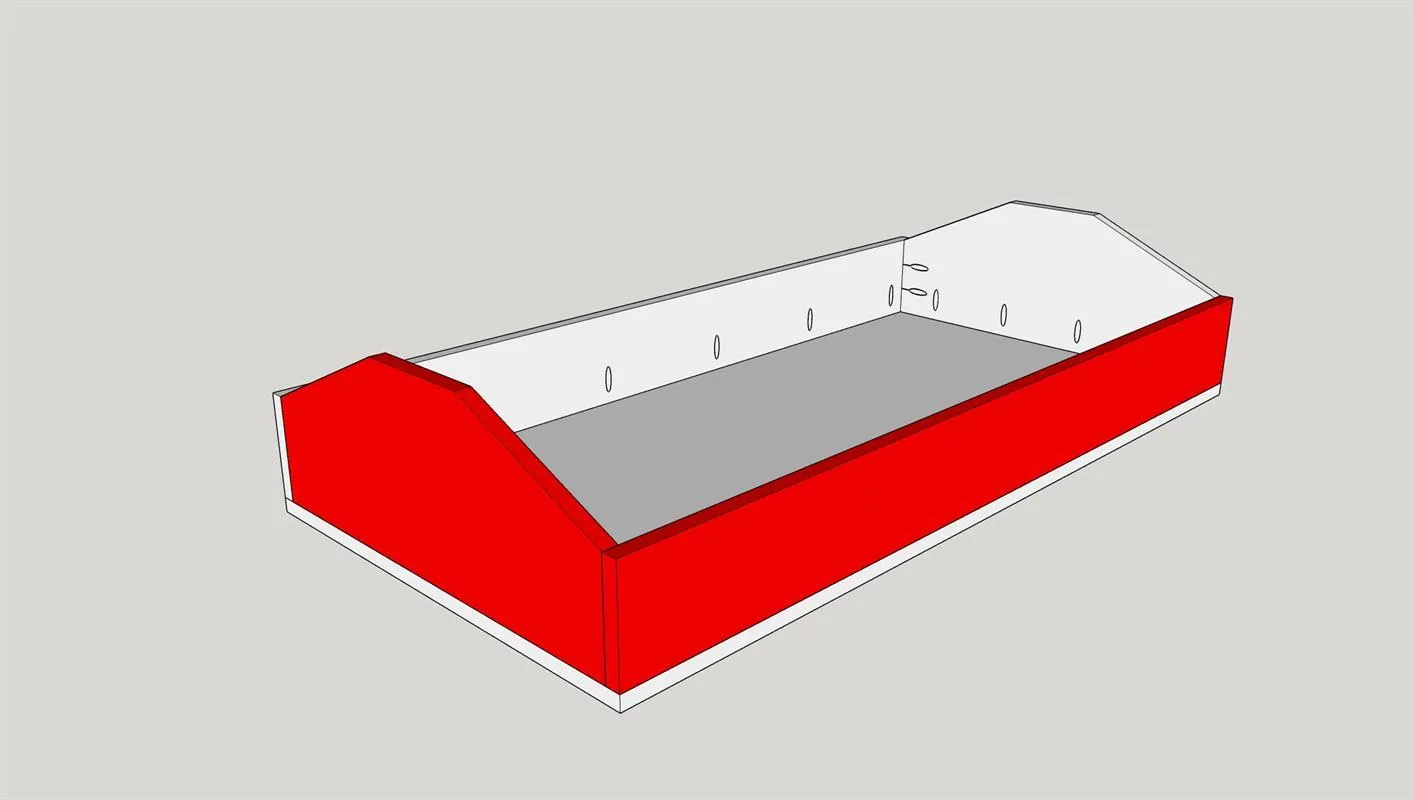

   Rotate the base and line up, apply wood glue and secure the opposite side and end panel with 1-1/4" KREG screws. *It is the end user's choice to plug the holes with paintable Kreg Paint Grade Wood Plug. My suggestion would be to Plug as you go. Plugs will need to be cut or sanded flush as they are made to fit multiple depth holes *



6. 6Verticals

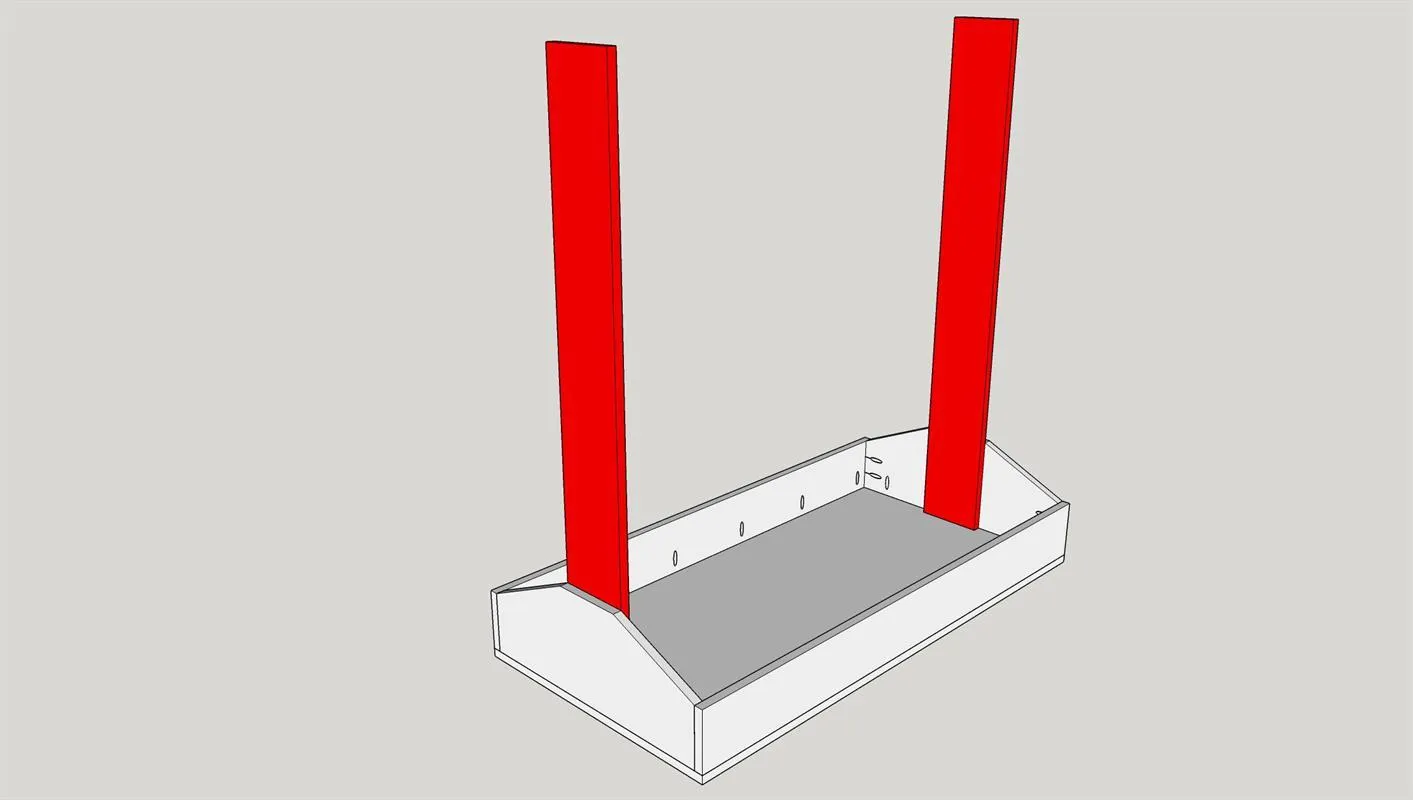

   • Attach the verticals to the base, they will be centered on the end panels. We are attaching these with (4) 1-1/4" drywall screws and wood glue.
   • Position the verticals and clamp them in place. Layout and drill a pilot hole for the screws. Using a countersink bit, or a 3/8" drill bit, open up the hole so the screw head sits flat when fully seated.
   • Apply wood glue between the two parts and screw it in place.
   • Repeat the same process for the other side.



7. 7Upper Shelf -Sides

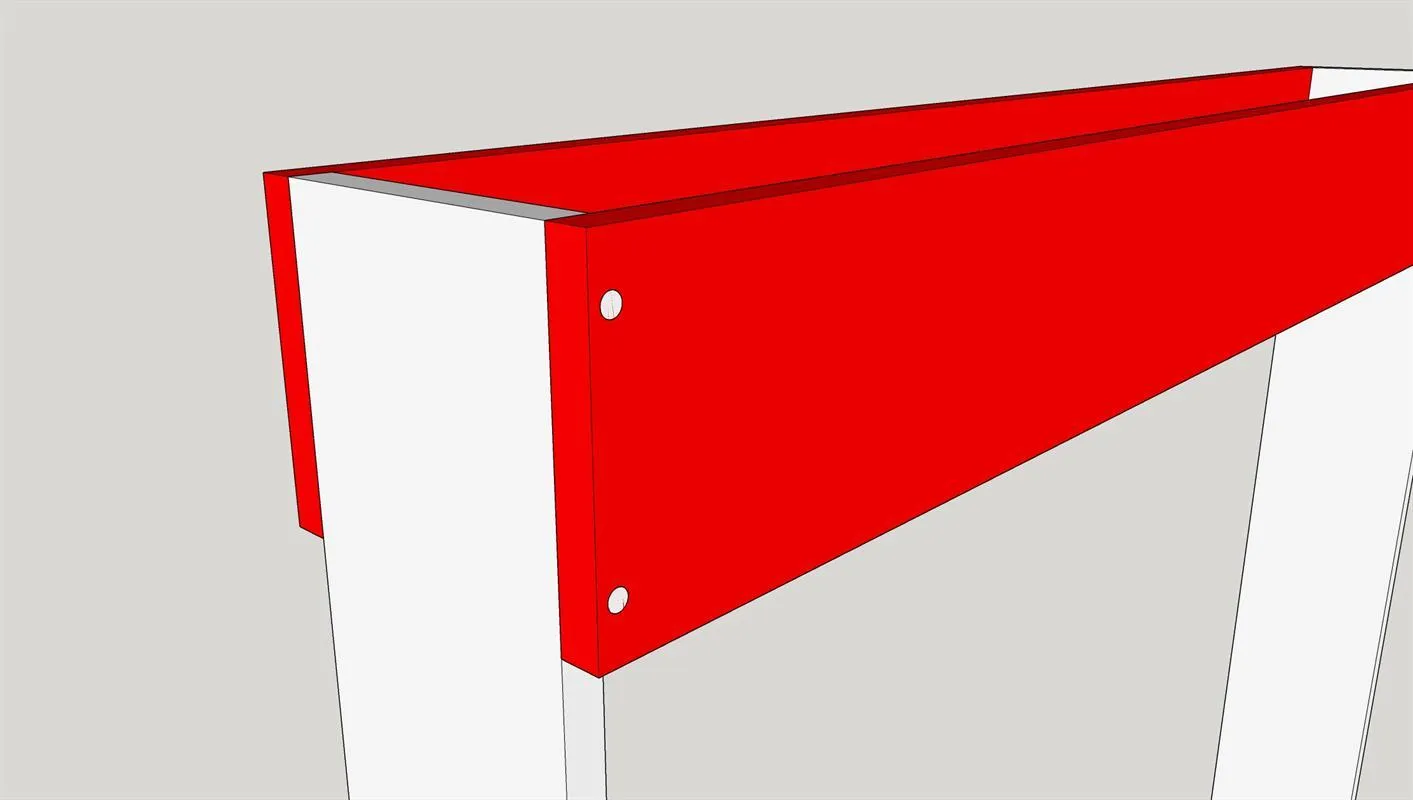

   With the verticals now in place, locate (2) of your shelf sides. These will attach at the top of the verticals so that the top of the side shelf part is flush with the top of the vertical. Using wood glue and 1-1/4" screws attach the side shelf parts.



8. 8Upper Shelf - Bottom

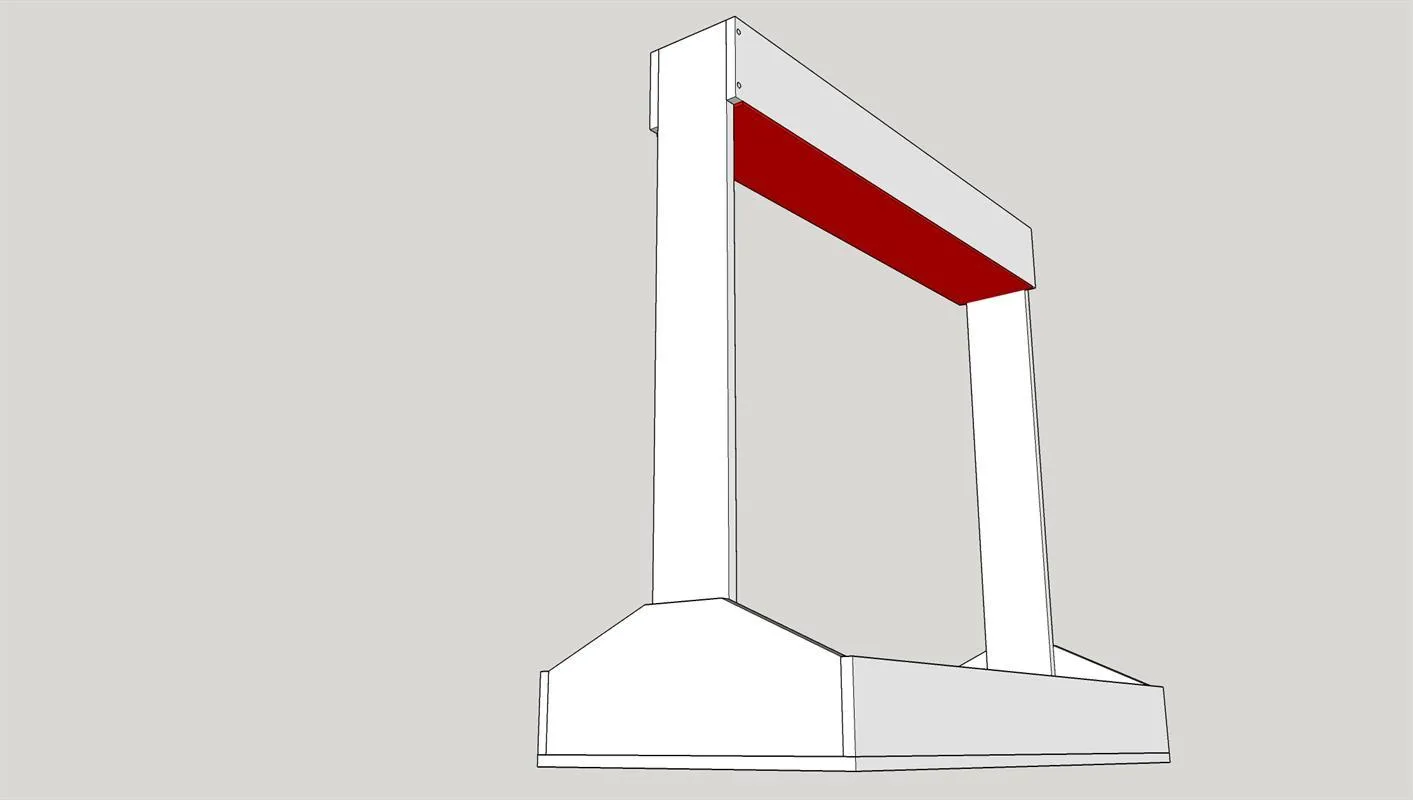

   Using the shelf base (1/4") plywood, wood glue and 18ga brad nails, secure it to the bottom of the 2 upper shelf sides. If you plan on using this shelf for heavier items, screws can be used in place of 18ga brad nails. Pilot holes would be needed.



9. 9Layout Lower shelf

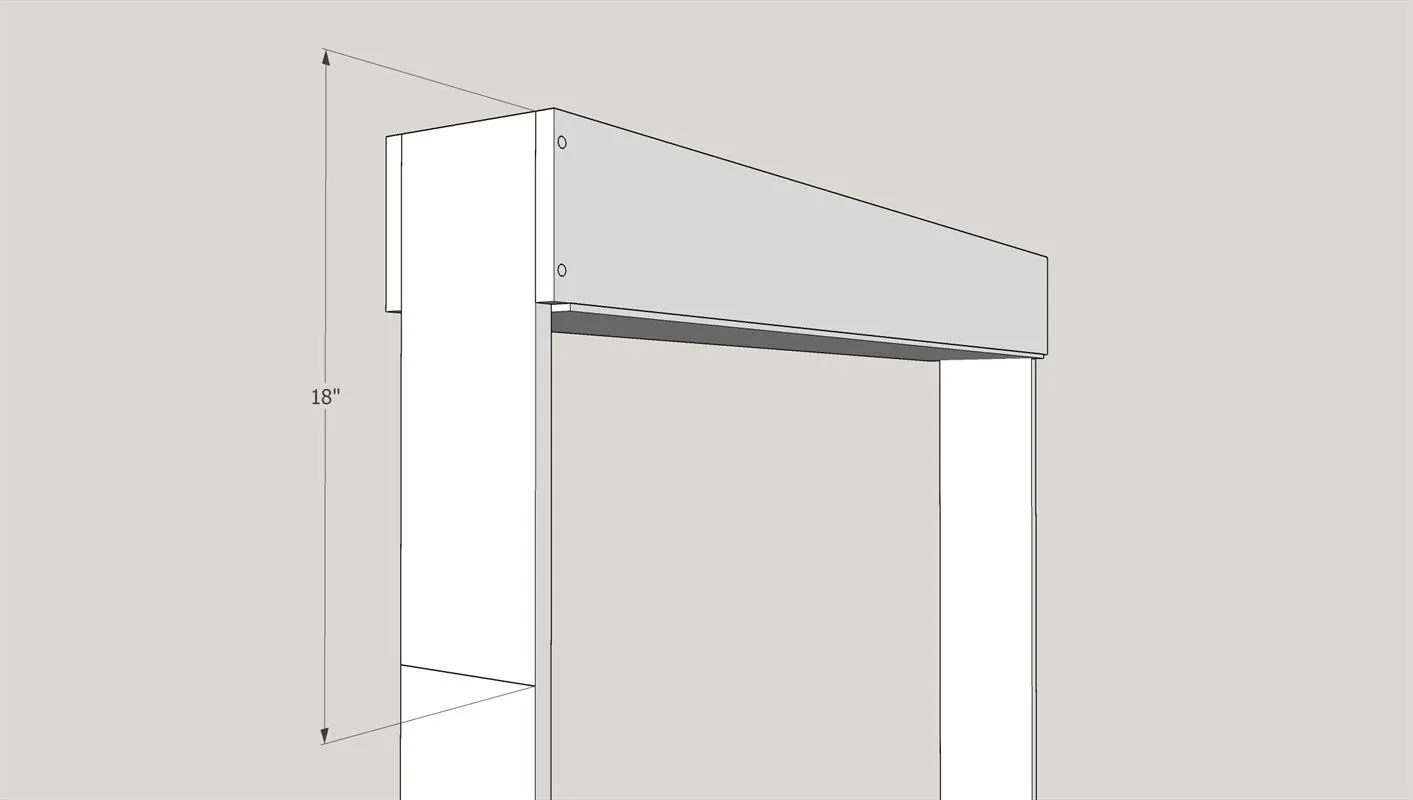

   From the top of each vertical, measure down 18" and place a mark. Repeat this on both ends. These marks will be the guide for the top of the lower shelf.



10. 10Lower Shelf

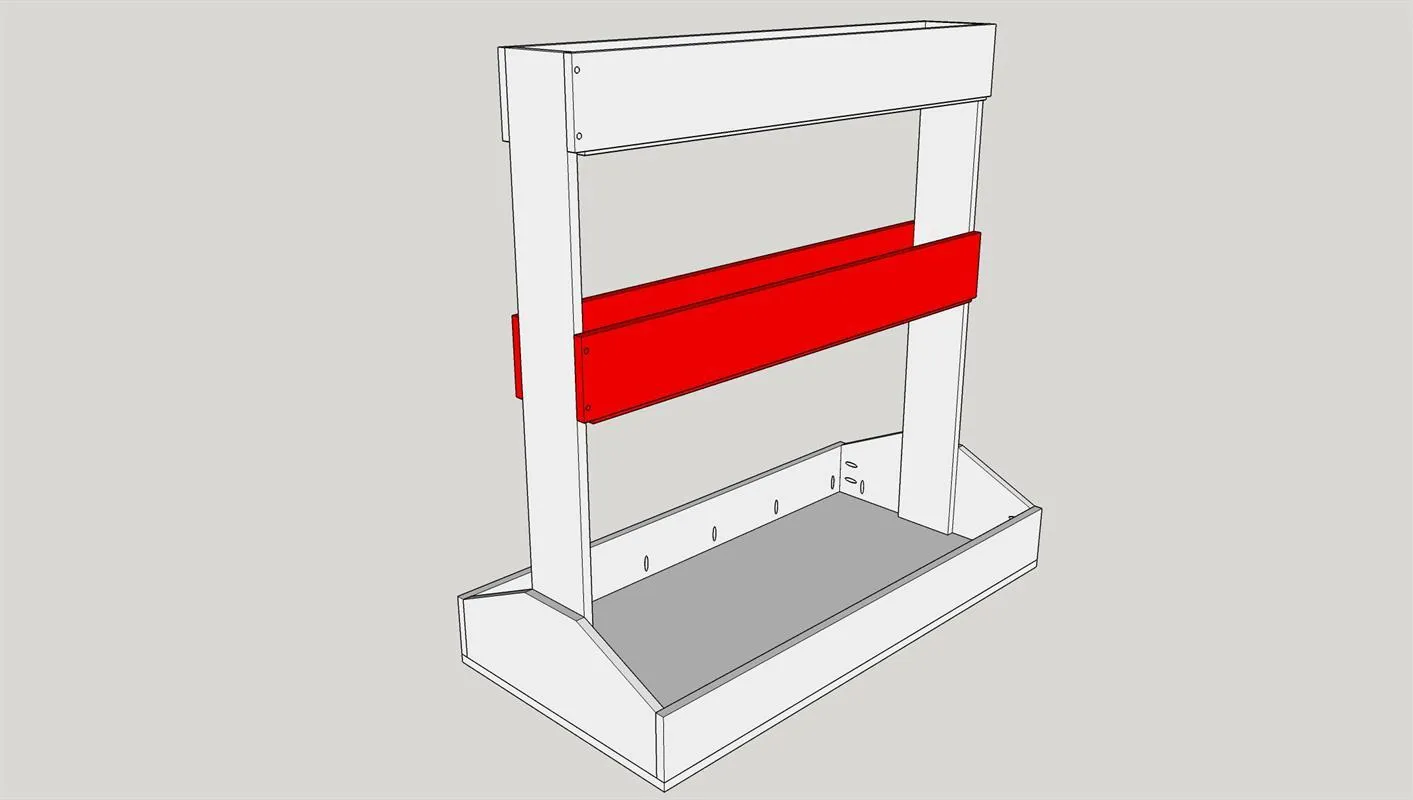

    Repeating steps 7 & 8, assemble the lower shelf. Then use the 18" mark from step 9 to align the top of the lower shelf instead of using the top of the vertical.



11. 11Prep & Finish

    Sand and prep for paint. This can be finished in whatever way fits your décor. I chose to spray it white.

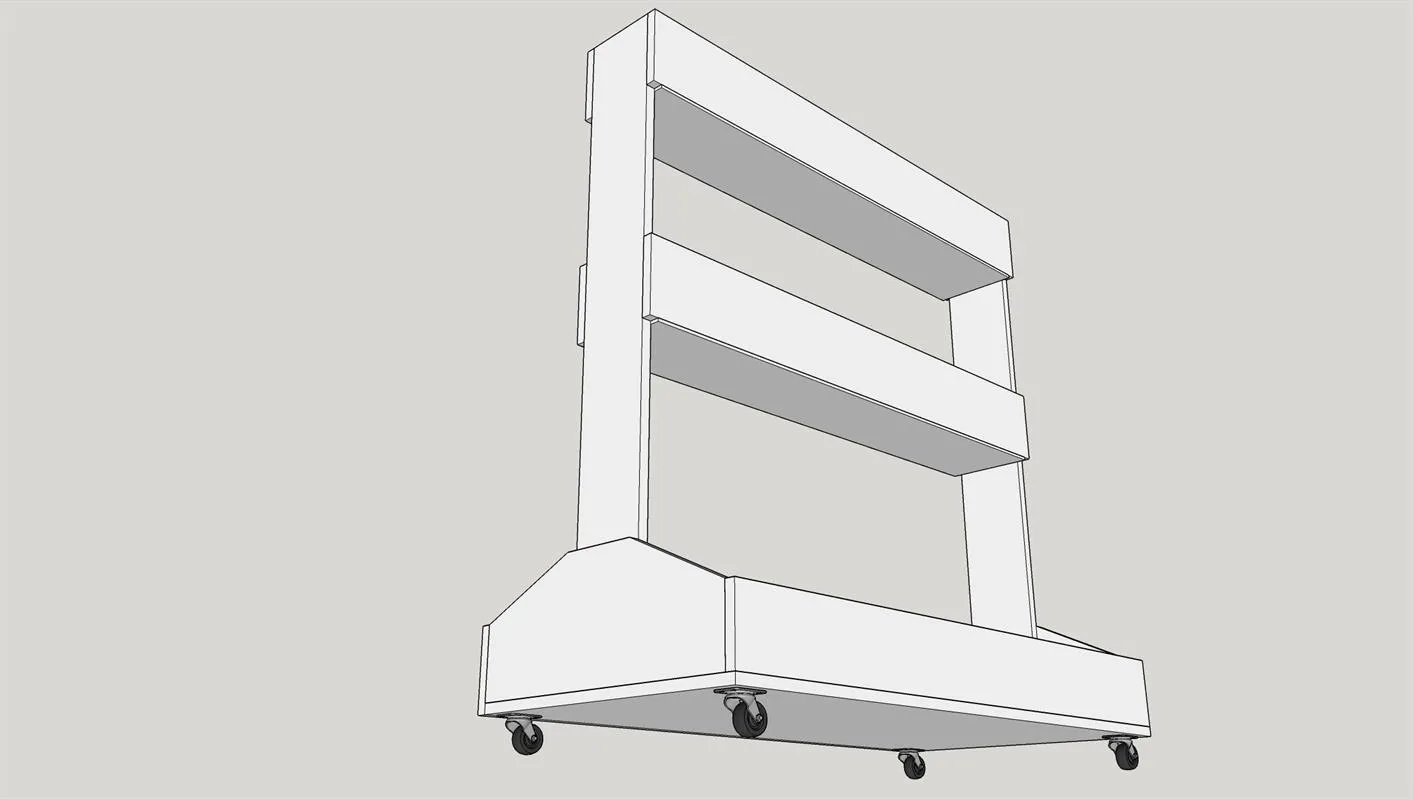

12. 12Install Casters

    Locate the position for the (4) casters on the bottom base. Do this by measuring in 3/4" from each side and end to locate the outside corner of the caster plate. Secure with button head phillips wood screw.



13. 13Install Hardware

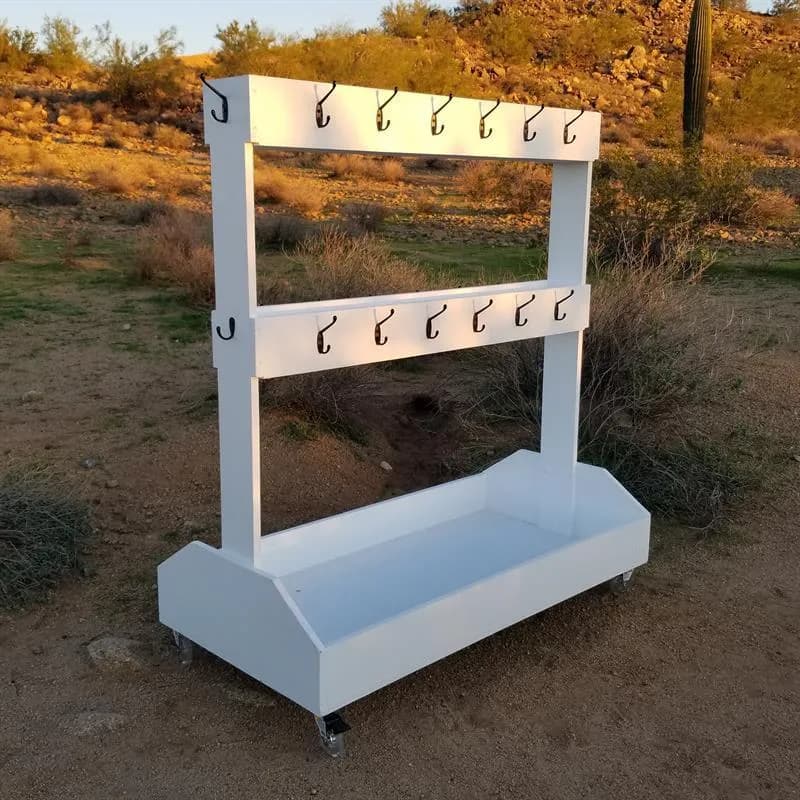

    Install your choice of hooks/hangers with screws that are supplied with the hardware. Each side of each shelf will have (6) hooks on it. Marked and evenly spaced. (*Optional hangers on the ends per cover pictures.)
