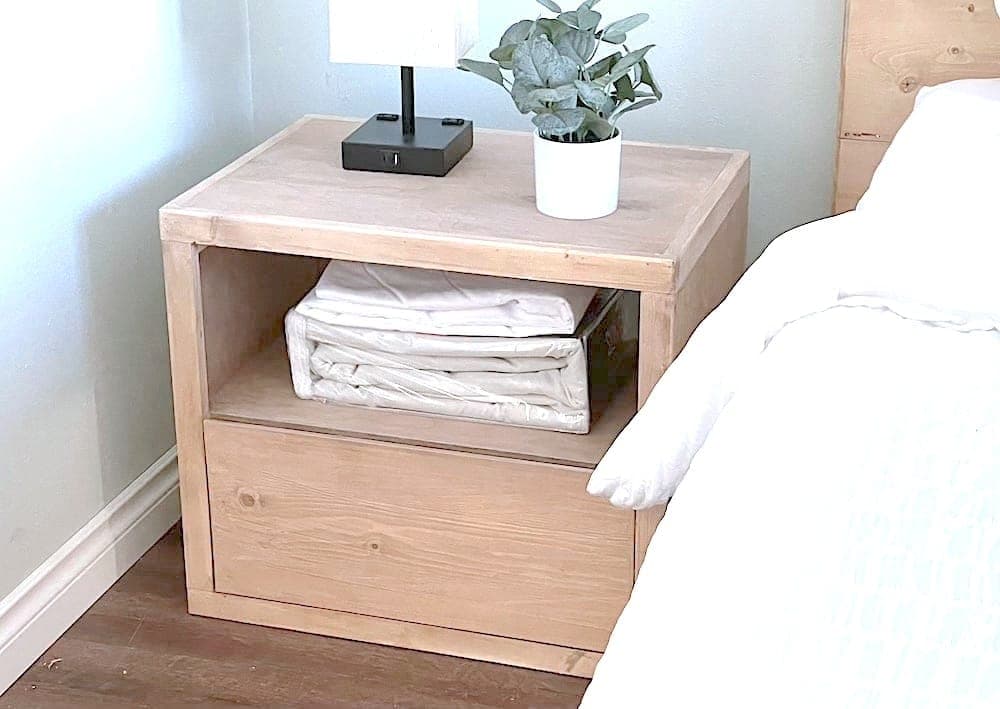

This nightstand is built the way a lot of mid-century case pieces are: plywood panels for the box, thin 1x2 trim wrapping every visible edge so no raw plywood ever shows, and a drawer that rides on cheap Euro corner-mount slides instead of anything fancier. The trim is doing real aesthetic work — it's what turns a plywood box into something with a finished, furniture-grade edge.
The drawer face is the one clever detail: rip the top edge at an angle rather than leaving it square, and that bevel becomes a built-in finger pull with no hardware to buy or install. It's a small table-saw operation that replaces a knob entirely.
Build the drawer box to the actual dimensions of the slides you bought, not to a number on this page — the front and back should measure 2-1/2" less than the opening, assuming your slides need 1/2" clearance per side, but confirm that against your specific hardware before cutting. Set the drawer face with a consistent 1/8" gap on all visible sides, which is what makes a plywood drawer read as considered rather than improvised.
One assembly trick worth keeping: leave the top panel unattached until the very end. A separable top is much easier to finish properly — brush every surface, including the underside — than a top that's already screwed down with three sides boxed in around it.
| Item | Qty |
|---|---|
| 3/4" plywood, ripped to 15-1/2" wideSide panels, top, and shelf. | 8 linear ft |
| 1x2, 8 ftEdge trim throughout. | 3 each |
| 1x6, 8 ftDrawer sides, front, and back. | 1 each |
| 1x10, 24"Drawer face. | 1 each |
| 1/4" plywood16" x 23" — drawer bottom. | 1 each |
| Brad nails, 1-1/4" and 5/8" | 60 each |
| Euro drawer slides, 16", bottom corner mount | 1 set |
| Wood glue and finishing supplies | 1 set |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Side panels3/4" plywood | 2 | 3/4" × 15 1/2" × 19 1/2" |
| Top and shelf3/4" plywood | 2 | 3/4" × 15 1/2" × 25 1/2" |
| Drawer slide spacers1x2 | 4 | 3/4" × 1 1/2" × 10" |
| Top and bottom trim (rails)1x2 | 4 | 3/4" × 1 1/2" × 27" |
| Vertical trim (stiles)1x2 | 4 | 3/4" × 1 1/2" × 18" |
| Side trim (side rails)1x2 | 2 | 3/4" × 1 1/2" × 15 1/2" |
| Inside cleats1x2 | 4 | 3/4" × 1 1/2" × 4" |
| Drawer sides1x6Match this to your actual drawer slide length. | 2 | 3/4" × 5 1/2" × 16" |
| Drawer front and back1x6Measure and cut to fit — 2-1/2" less than your drawer opening, assuming 1/2" clearance per side on your slides. | 2 | 3/4" × 5 1/2" × 21 1/2" |
| Drawer bottom1/4" plywood | 1 | 1/4" × 16" × 23" |
| Drawer face1x10Rip the top edge at an angle on the table saw — this bevel becomes the finger pull. | 1 | 3/4" × 9 1/4" × 22 3/4" |
Buy 7 boards at 8 ft.
1 board
1 board
1 board
On each side panel, attach 1x2 trim with 1-1/4" brad nails and glue, keeping the outside edges perfectly flush to the panel edges. Do this on both side panels.
Attach the bottom 1x2 rail to both side panels with 1-1/4" brad nails and glue. Measure and cut the vertical trim to fit, then attach the same way.
Trim the sides of the top panel with the 15-1/2" side rails, then trim the front and back with 1-1/4" brad nails.
Attach the inside cleats with 1-1/4" brad nails and glue. Set the finished top panel on the base for now, without securing it — it's much easier to finish properly while it's still removable.
Attach the drawer slides to the 10"-long 1x2 spacers.
Build the drawer box to fit your actual hardware: sides match your slide length exactly (16" for the slides called out here), and the front and back measure 2-1/2" less than the drawer opening, assuming 1/2" clearance per side. Assemble with 1-1/4" brad nails, the bottom with 5/8" brads. Test the slide action and adjust the hardware as needed.
Set the middle shelf on top of the 1x2 rails and attach with 1-1/4" brad nails.
Set the drawer face on the drawer box with an even 1/8" gap on the sides and bottom, and attach with 1-1/4" brad nails. Further secure from inside with 1-1/4" screws.
Rip the top edge of the drawer face at an angle on the table saw before final attachment — that bevel is the finger pull, so no hardware is needed.
No reviews yet
Sign in to review this plan or share your build.
No reviews yet. Be the first to build this.
3 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
