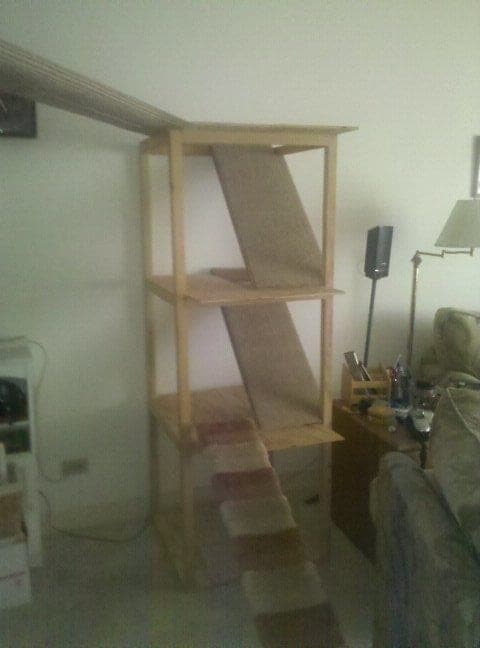

This is a freeform cat tower rather than a precise plan, and it's better for it: cats want levels, landings, and a way up and down that isn't a leap, so you build to the cat and the corner you're putting it in, not to a fixed cut list. The source builder made theirs about 5-1/2 feet tall to reach a route over from the stairs — yours should suit your ceiling and your cat's confidence.
The structure is a simple post-and-shelf frame: 2x2 uprights tied together by 2x2 shelf supports, with 1/2" plywood dropped in as platforms and ramps. Two details from the build worth keeping. First, offset each pocket hole slightly from the center of its support so opposing screws don't collide inside the joint. Second, the platforms need to stick out past the frame so the cat has a landing to turn around on where a ramp meets a level — think of it as the landing on a staircase.
The ramps can be a touch steep for a cautious cat, so add 'speed bumps' — 1x2 offcuts screwed across the ramp — to give claws something to brace against. Carpet or sisal the platforms and ramps for grip and scratching. And because it's tall, anchor it: fix the top to a wall or wedge it floor-to-ceiling so it can't tip when the cat launches off it.
| Item | Qty |
|---|---|
| 2x2 board, 8 ftUprights and shelf supports. Exact count depends on height and level count. | 7 each |
| 1/2" plywood, 4x8 sheetPlatforms and ramps. | 1 each |
| Pocket-hole screws, 2-1/2" | 60 each |
| Carpet or sisal remnantGrip and scratching surface for platforms and ramps. | 20 sq ft |
| 1x2 offcuts for ramp cleatsScrewed across ramps as 'speed bumps' so claws can brace. | 6 each |
| Wall anchor bracketTo fix the top to a wall stud so the tower can't tip. | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Shelf supports2x2~21" for a roughly 2 ft square footprint; adjust to your design. | 8 | 1 1/2" × 1 1/2" × 21" |
| Uprights2x2~66" gives a 5-1/2 ft tower; set to suit your ceiling. | 4 | 1 1/2" × 1 1/2" × 66" |
| Platforms1/2" plywoodLet them overhang the frame where a ramp lands so the cat has a landing. | 3 | 1/2" × 24" × 24" |
| Ramps1/2" plywoodLength set by the rise between levels. | 2 | 1/2" × 10" × 30" |
Buy 7 boards at 8 ft.
5 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Cut the 2x2 shelf supports to your chosen footprint — about 21" gives a roughly 2 ft square. Put a pocket hole at each end, but offset each hole from the center of the support: because supports meet from all four sides, centered holes would drive screws into each other. Right-of-center on every one keeps them clear.
Cut the four uprights to your target height — the source went ~5-1/2 ft to reach a route off the stairs; match your ceiling and cat. Mark the level heights on each upright now, identically, so the platforms end up dead level. Drill pocket holes in the bottoms of the uprights to fasten down to the base platform.
This is the fiddly part, especially solo — build the frame up one side at a time, fastening supports between uprights at your marked heights. Work on a flat floor and check the frame stands square and doesn't rack before you commit every screw. Fasten the base first to give the uprights something to stand on.
Cut plywood platforms and drop them onto the shelf supports, letting them overhang the frame where a ramp will land — that overhang is the landing the cat turns around on. Cut ramps to span between levels. All ramps running the same direction keeps the tower tight against the wall, which is usually what you want.
Screw 1x2 offcuts across the ramps as grip cleats — steep ramps are hard on a cautious cat without them. Sand every edge, then wrap platforms and ramps in carpet or sisal for traction and scratching. Finally, anchor the top to a wall stud or wedge the tower floor-to-ceiling so it can't tip when the cat jumps off the top.
