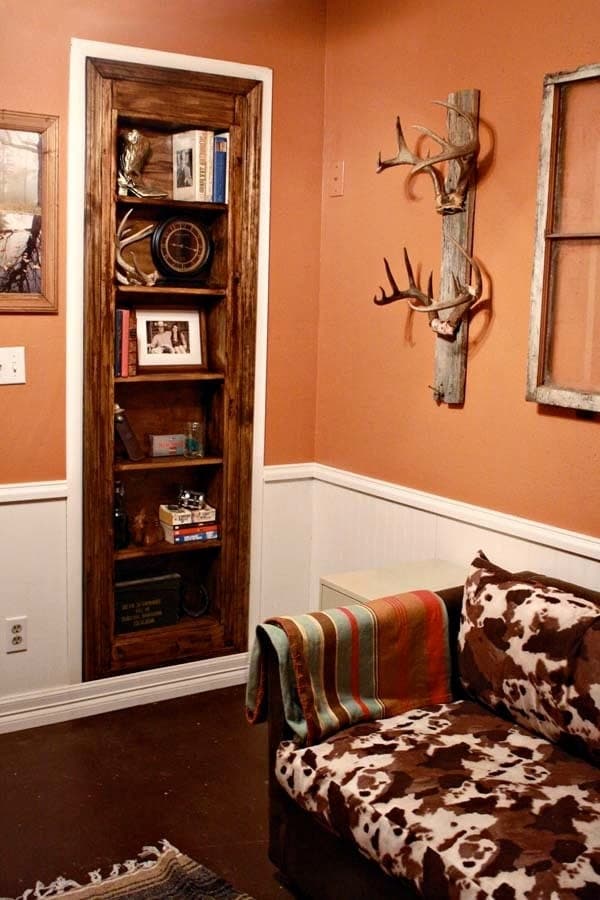

This is the classic hidden-bookcase door: a shelf unit built into a door slab, hung in its own frame so it swings like a real door but reads as built-in shelving. It's the most advanced build in this collection because a door has to do two things at once — hold books and swing true for years — and a heavy, book-laden door punishes any sloppiness in the frame or hinges.
Everything is custom to your opening, so there's no fixed cut list; the numbers are all derived. Measure the opening, subtract 1/2" from height and width for a 1/4" gap all around, and work the frame from there. Because 2x4s are 3-1/2" wide, you subtract 7" from the door width to get the 2x6 cross-piece lengths. Build the frame, then dry-fit it in the opening and confirm the door swings freely with an even gap before you glue anything — this is why the source says explicitly not to glue the frame on the first assembly.
Weight and hinges are the whole ballgame. Use heavy-duty hinges rated well above the loaded weight, and for wide or heavily loaded doors add a caster wheel at the swinging bottom corner so the floor carries some of the load instead of the hinges alone. Pre-drill the pocket holes that attach the bookshelf to the door frame while the frame is apart — reaching them after assembly is miserable — then add trim or door-stop molding behind the frame to give the door a clean, quiet place to close.
| Item | Qty |
|---|---|
| 2x4 board, 8 ftDoor frame stiles/rails. | 2 each |
| 2x6 board, 8 ftFrame cross-pieces. | 1 each |
| 1x6 board, 8 ftShelves and sides — more for a wider or taller unit. | 4 each |
| 1/4" plywood, half sheetBack of the bookshelf. | 1 each |
| Heavy-duty hingesRated well above the loaded door weight — this is not the place to save money. | 3 each |
| Caster wheelAt the swinging bottom corner for wide/heavy doors; lets the floor share the load. | 1 each |
| Lock, clasp, and gate hardware | 1 each |
| Pocket-hole and wood screws, 1-1/4" and 2-1/2" | 80 each |
| Wood glue | 6 oz |
| Door-stop moldingBehind the frame, so the door has a clean place to close. | 18 ft |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Door frame stiles/rails2x4Cut to your opening minus 1/2" for a 1/4" gap all around. 79.5" shown for an 80" opening. | 2 | 1 1/2" × 3 1/2" × 79 1/2" |
| Door frame cross-pieces2x6Door width minus 7" (two 2x4 stiles). Derived from your opening. | 2 | 1 1/2" × 5 1/2" × 29" |
| Bookshelf sides1x6To fit inside the door frame. | 2 | 3/4" × 5 1/2" × 72" |
| Shelves1x6As many as you want; length to the interior width. | 5 | 3/4" × 5 1/2" × 29" |
| Back1/4" plywoodCut to the assembled shelf unit. | 1 | 1/4" × 32" × 74" |
Buy 8 boards at 8 ft.
1 board
2 boards
4 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Measure the overall doorway opening, then subtract 1/2" from height and width so the finished door has a 1/4" clearance all around. From those numbers set the frame stile and rail lengths; remember 2x4s are 3-1/2" wide, so the 2x6 cross-pieces are the door width minus 7".
Assemble the door frame from 2x4s and 2x6s with 1-1/2" pocket holes and 2-1/2" screws — but do not glue yet. Fit the frame into the opening and confirm it swings and closes easily with an even gap. Adjust until it's right; gluing a frame that doesn't fit is a mistake you can't take back.
Take the frame apart and drill 3/4"-stock pocket holes around all the inside edges where the bookshelf will attach — far easier now than reaching inside an assembled frame. Then reassemble the frame, this time with glue for a permanent joint.
Build the shallow bookshelf from 1x6 sides and shelves to fit inside the frame, then glue-and-nail the 1/4" back on with finish nails — the back squares and stiffens it, which matters double on a door.
Attach the bookshelf to the frame through the predrilled 3/4" pocket holes with 1-1/4" screws and glue. Hang the door on heavy-duty hinges, adding a caster at the swinging bottom corner if it's wide or heavily loaded. Add door-stop molding behind the frame for a clean close, plus a lock or clasp. Load the shelves gradually and confirm it still swings true.
