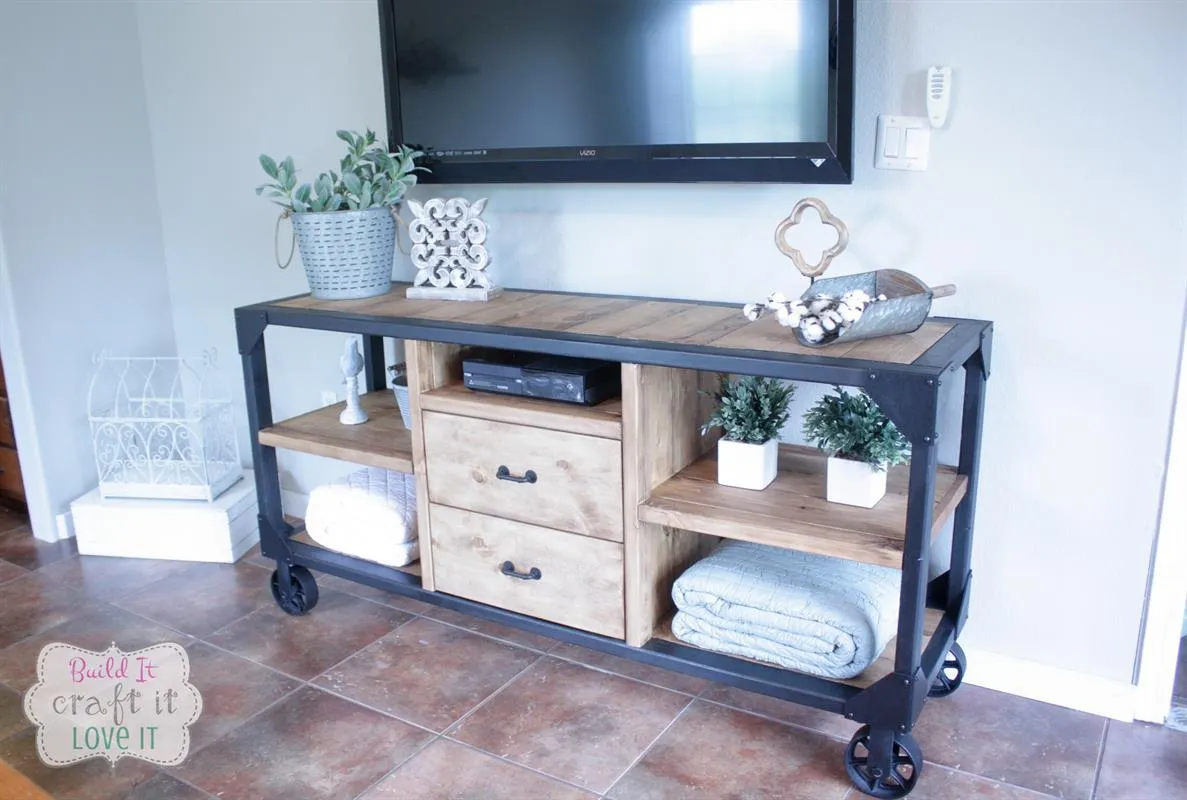

Industrial Media Console

Instructions

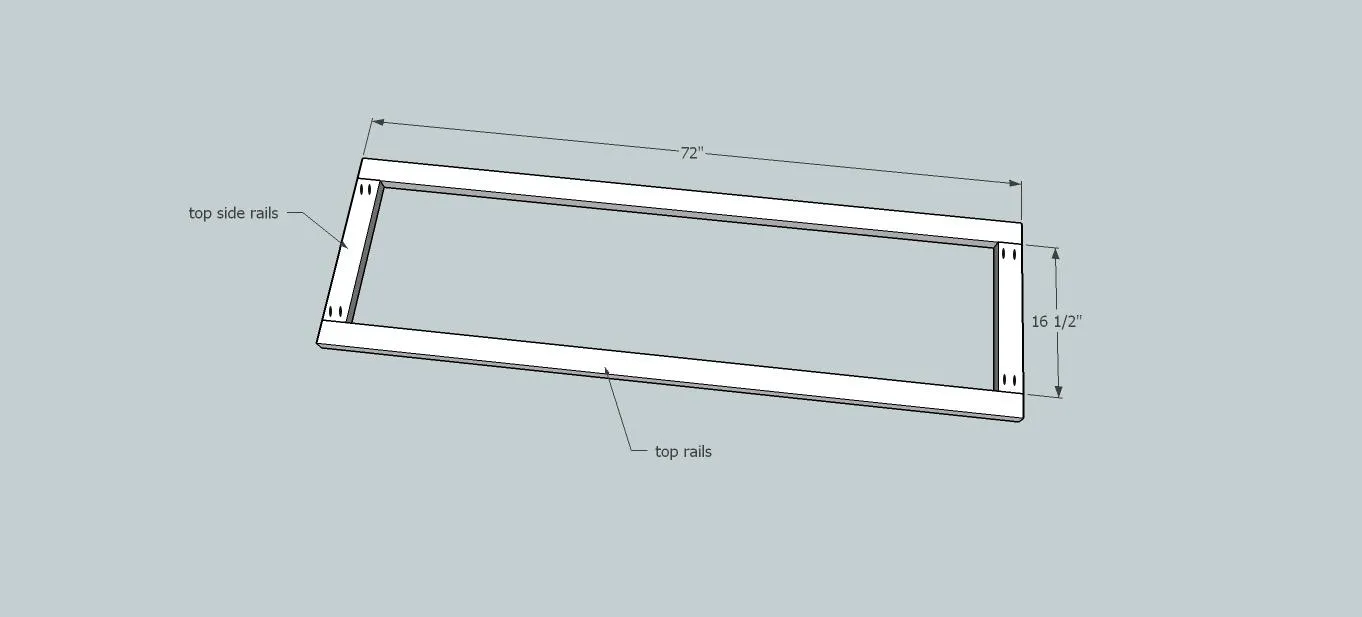

1. 1Step 1

   NOTE: All of the 2x3s in this plan will be joined using 1 1/2" pocket holes (since the actual dimension of a 2x is 1 1/2") And 2 1/2" pocket hole screws! The black ovals denote placement of pocket holes! Make sure and glue all joints in addition to the screws!! Start by joining the top rails to the top side rails!

2. 2Step 2

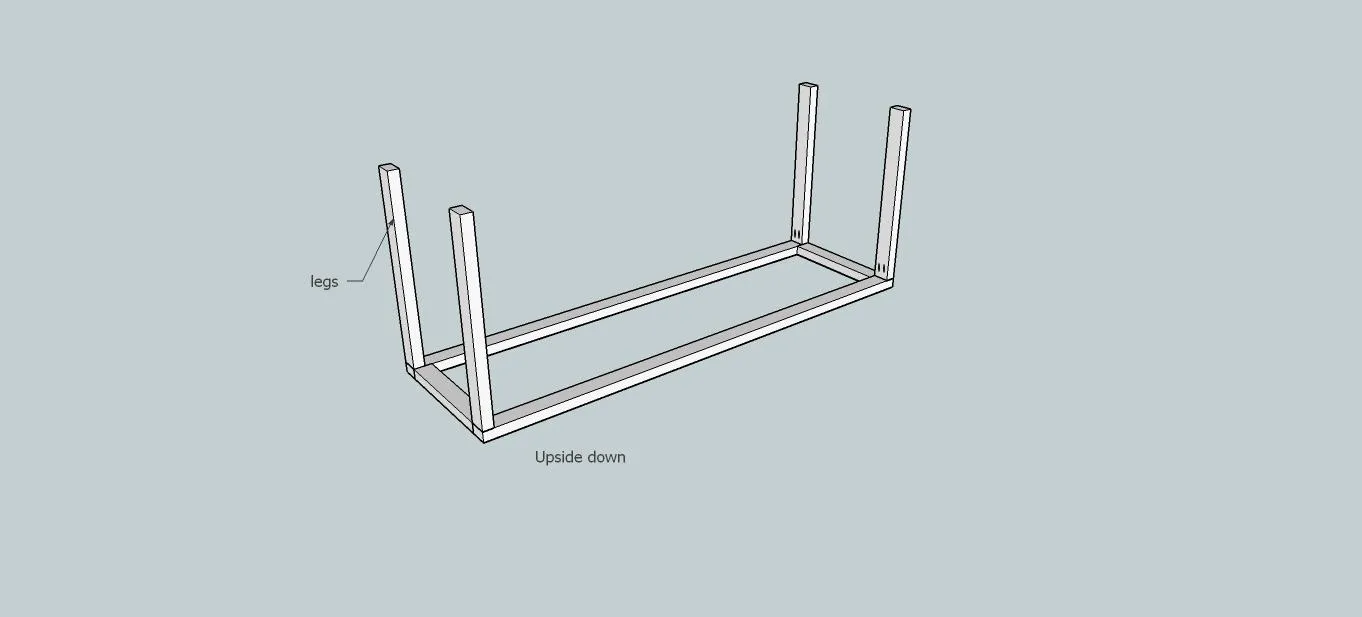

   Connect the legs to the top rails!

3. 3Step 3

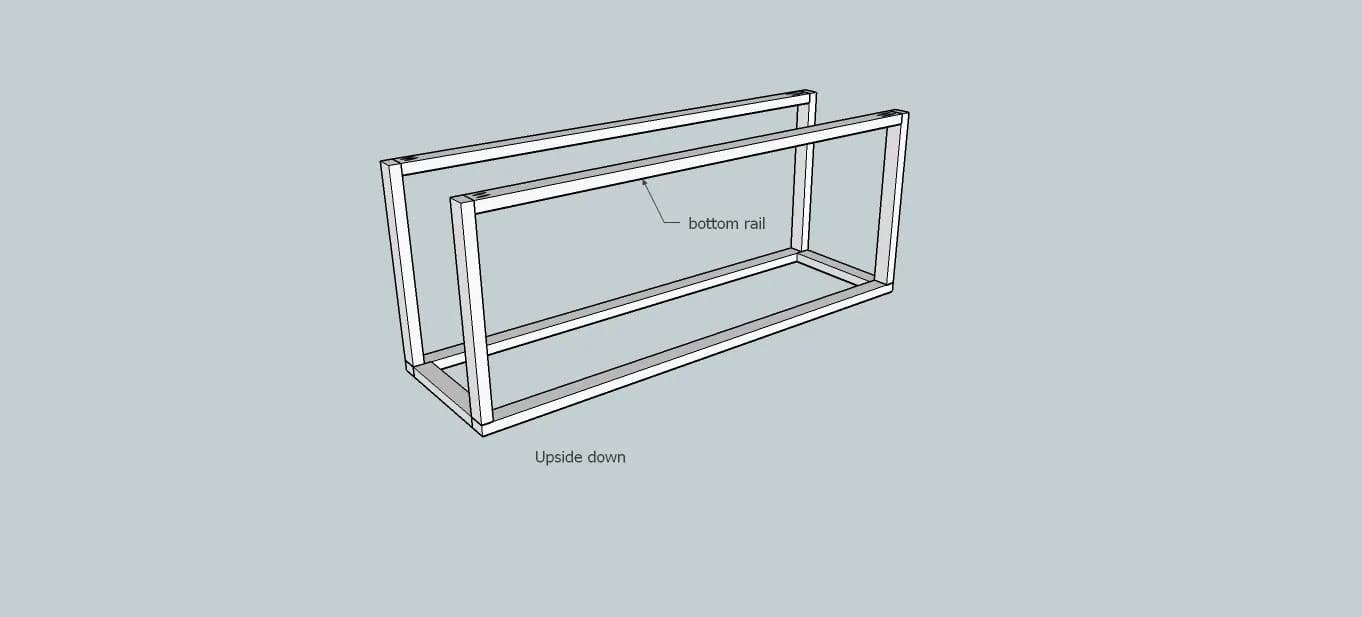

   Add the bottom rails to the legs! NOTE: I built the whole thing, minus the drawers while having it turned upside down, this just makes it easier to screw everything together!

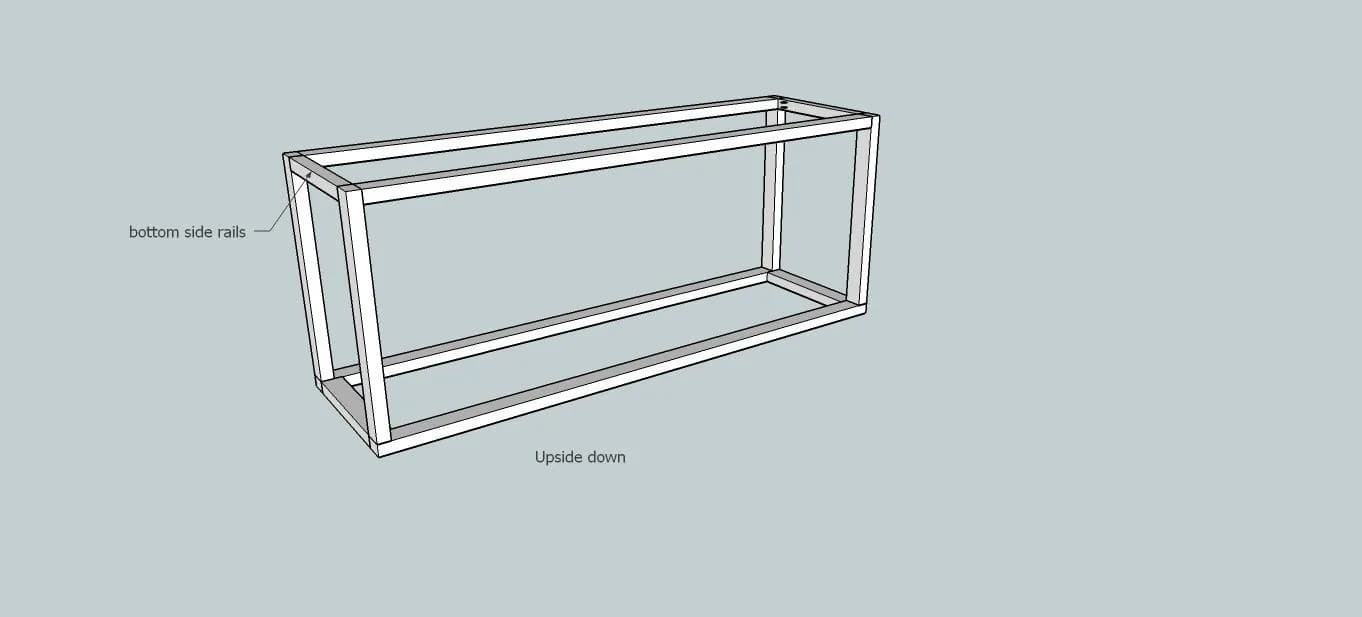

4. 4Step 4

   Attach the bottom side rails!

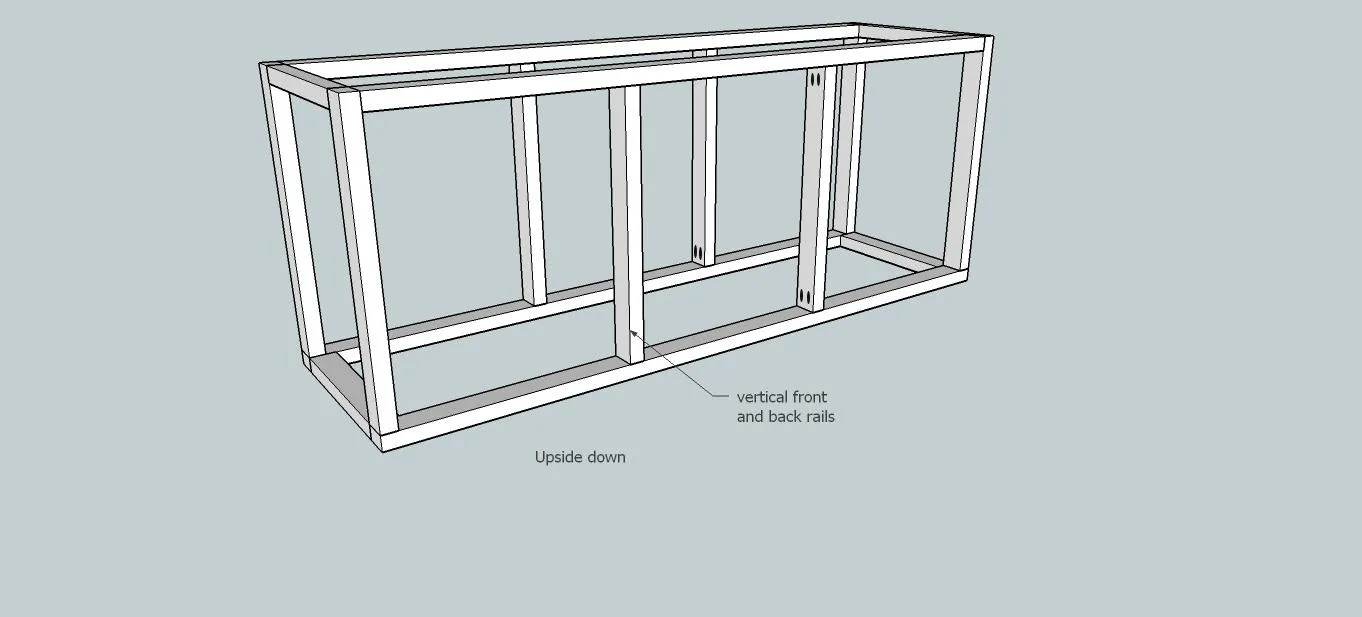

5. 5Step 5

   Attach the vertical front and back rails! They are spaced 22 1/2" from each side, leaving 21 1/2" in the middle!

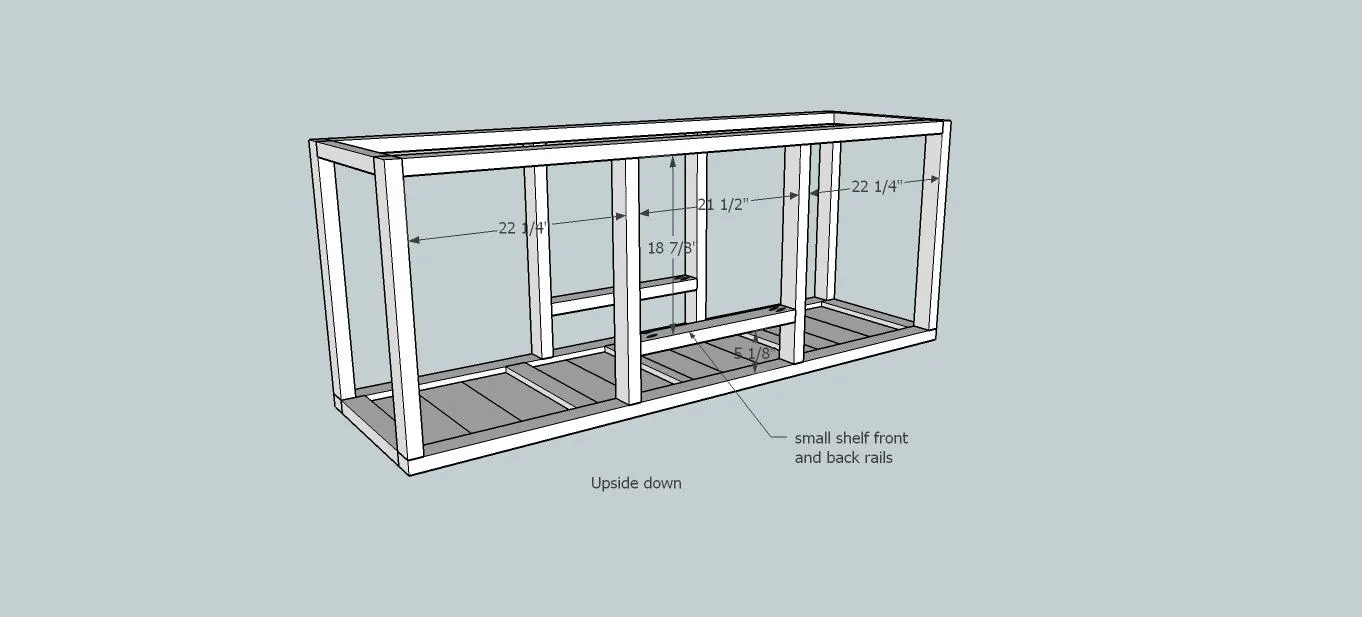

6. 6Step 7

   Attach the small shelf front and back rails! Note: I cut two small 5 1/8" boards to put under the boards so I didn't have to try and hold the board in place...it could just rest it on the scrap boards and it was right where I needed it when I screwed it in! I also did this with the other shelves as well!

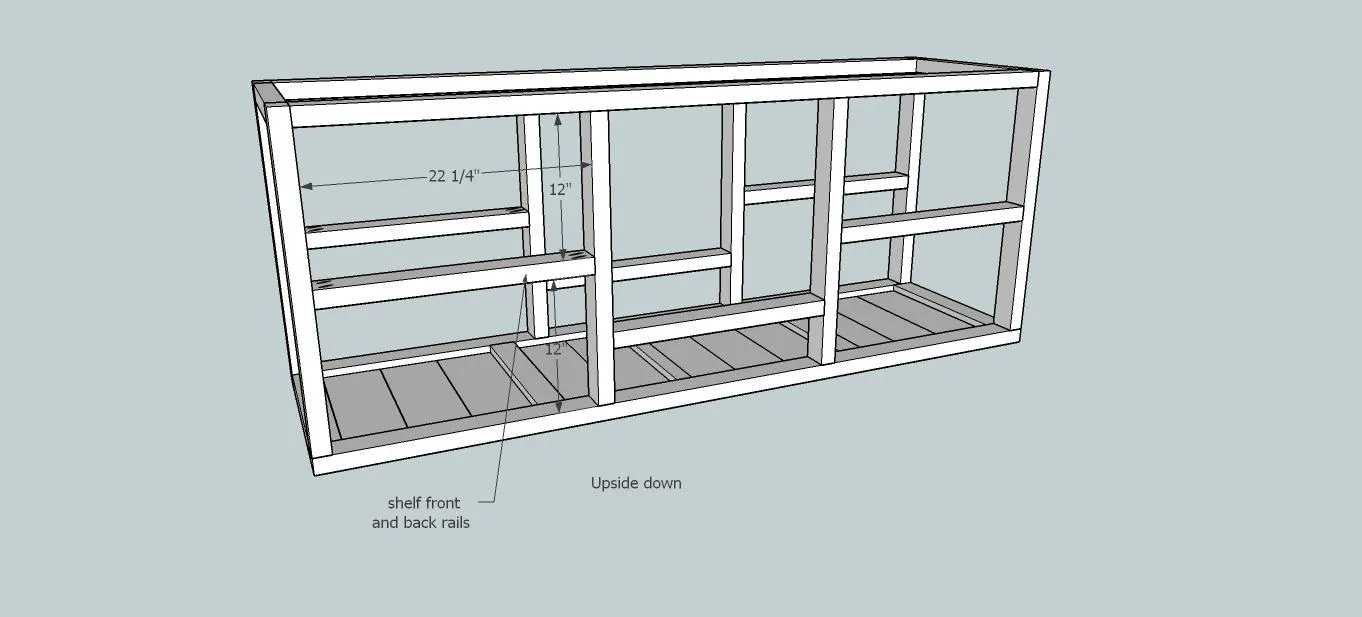

7. 7Step 8

   Attach the shelf front and back rails on both sides!

8. 8Step 9

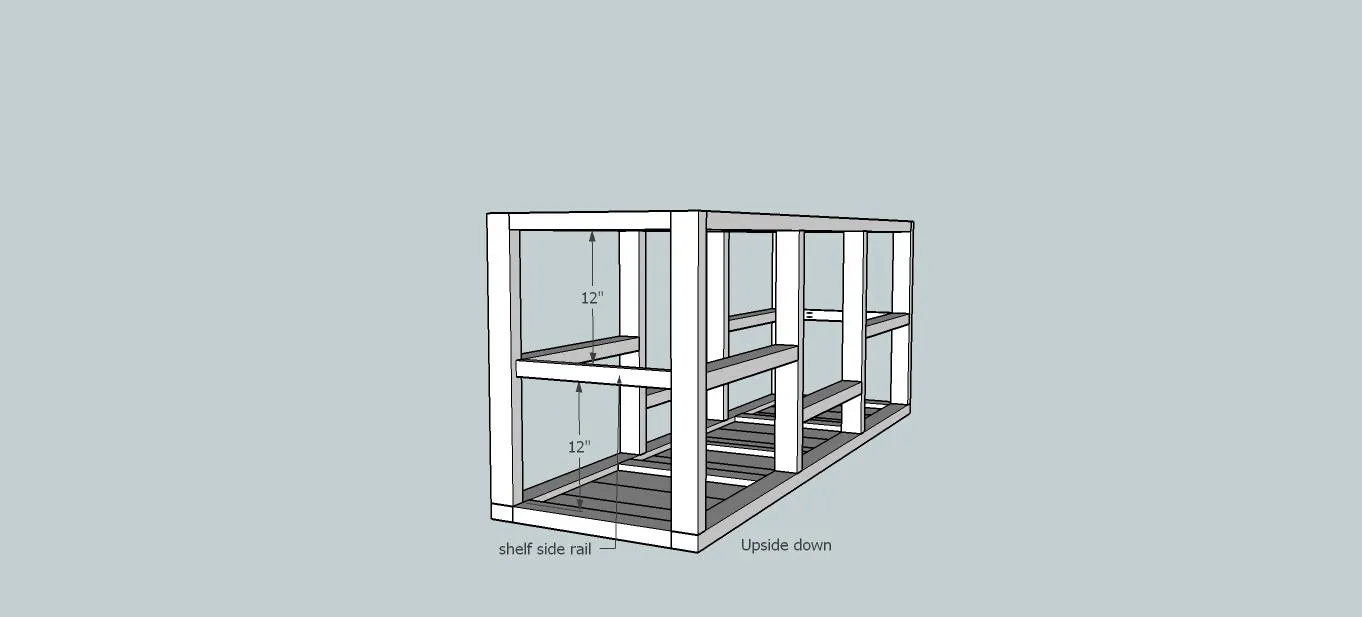

   Attach shelf side rails!

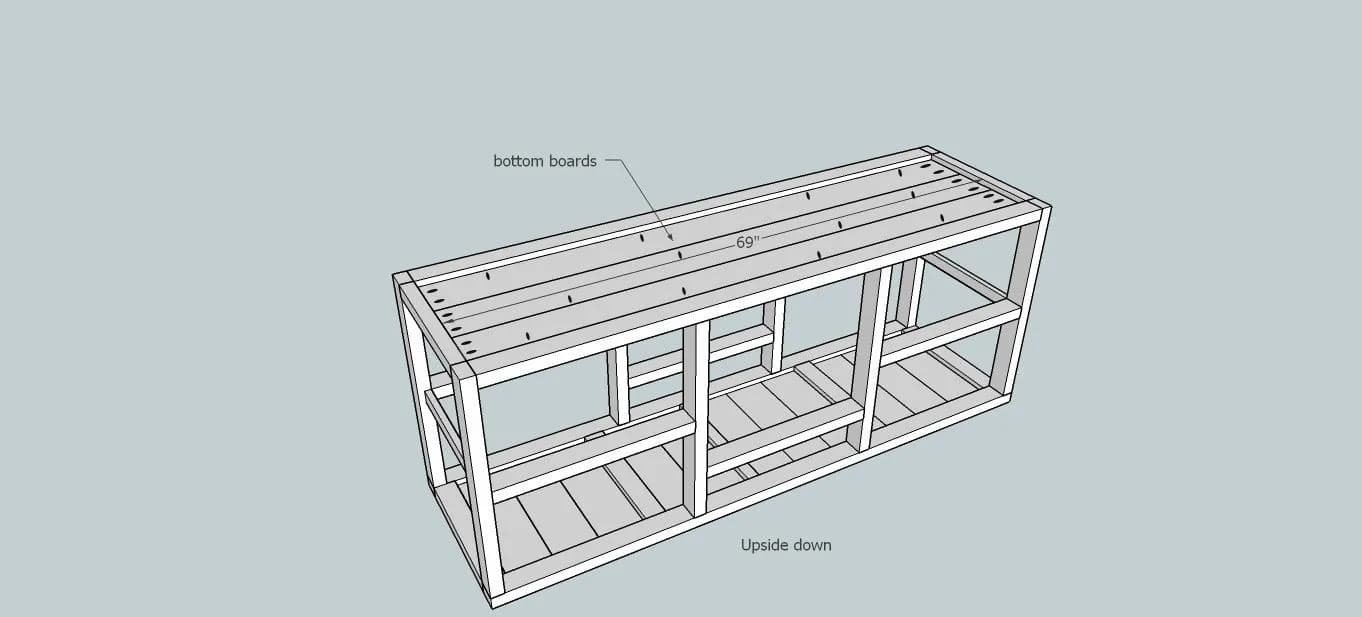

9. 9Step 10

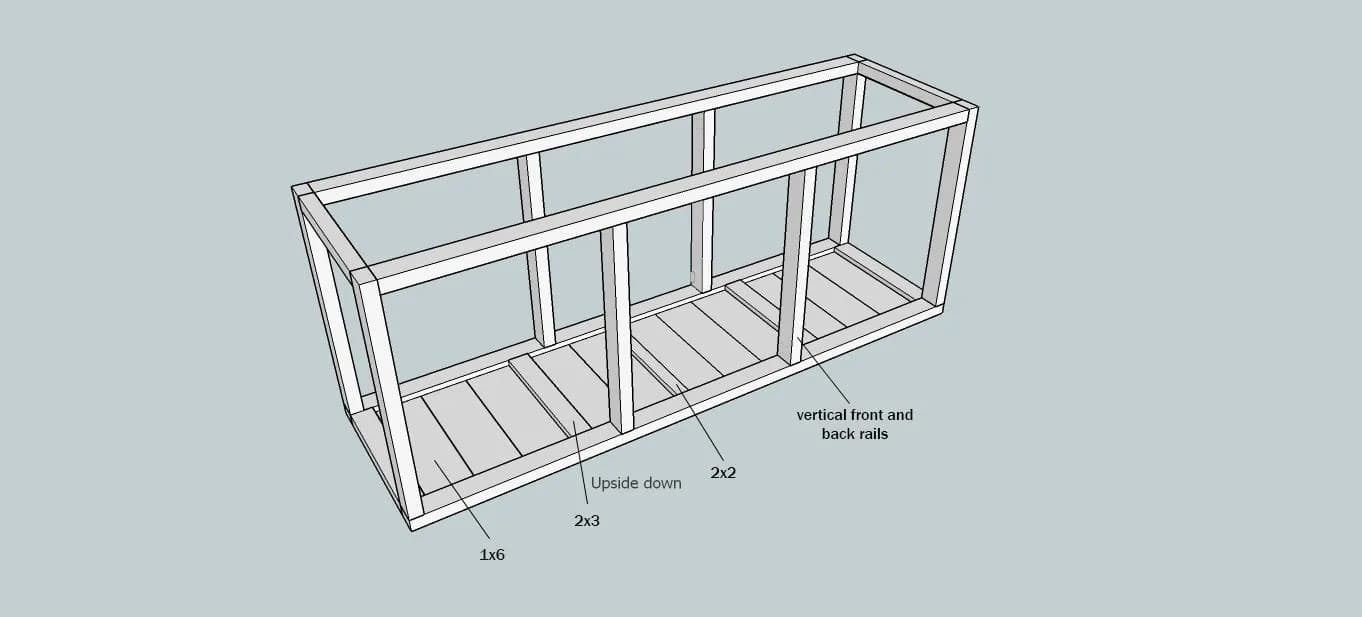

   Attach bottom boards! I not only used pocket holes going into the 2x3 frame but also sideways into each other just to help keep them all lined up and resist bowing!

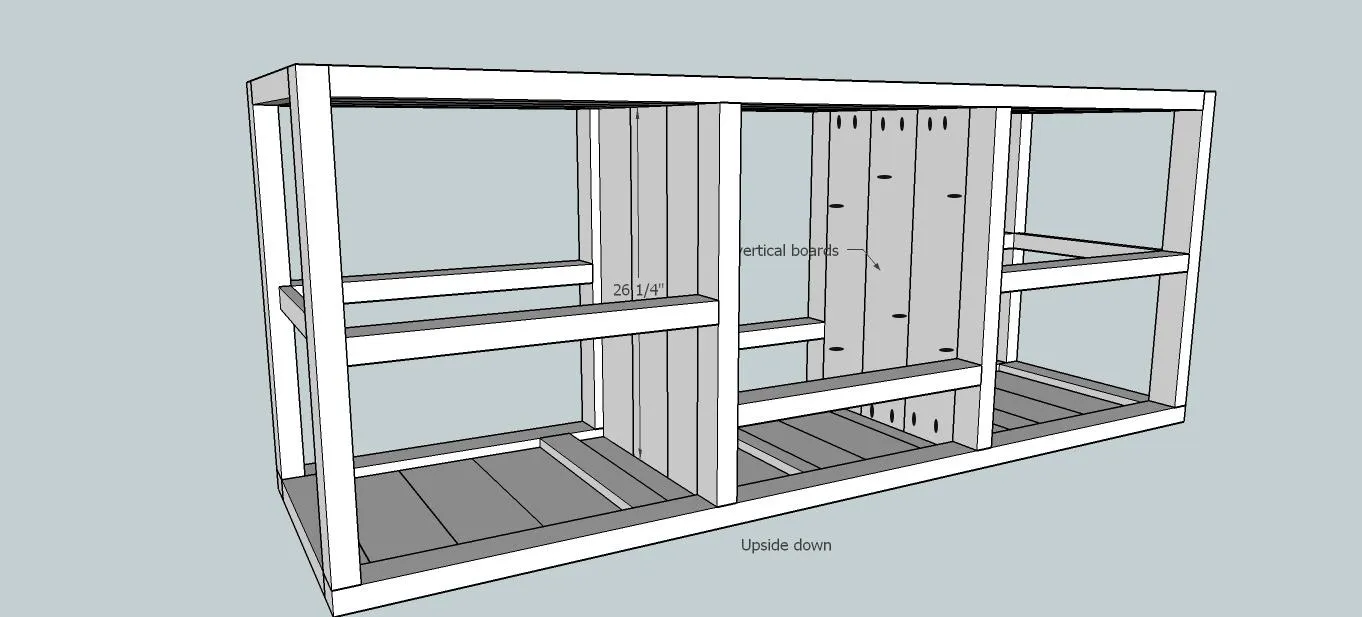

10. 10Step 11

    Attach the vertical boards! I did the same thing here with the pocket holes going into the frame and the other 1x6 boards to make sure I had a flush surface for my drawer slides!

11. 11Step 12

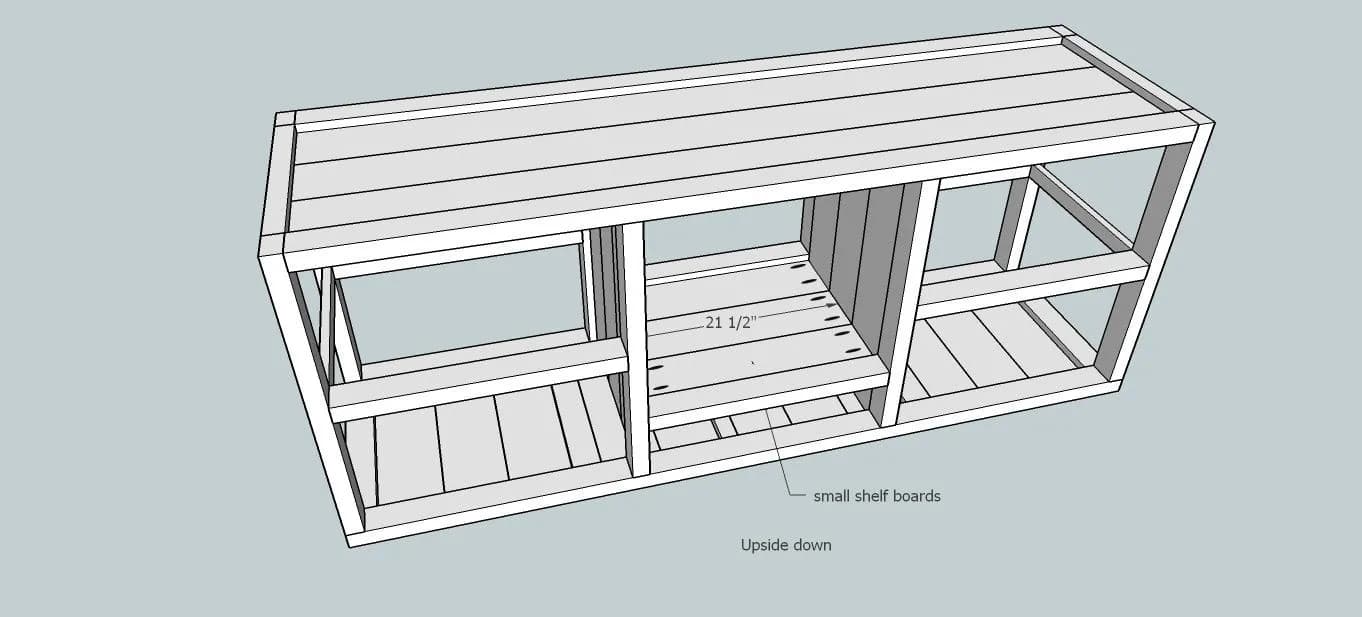

    Attach small shelf boards! NOTE: You will want to sand these boards before screwing them into place because a sander will not fit in the small space...I know this because I didn't and had to hand sand it as best I could!! Lol!!

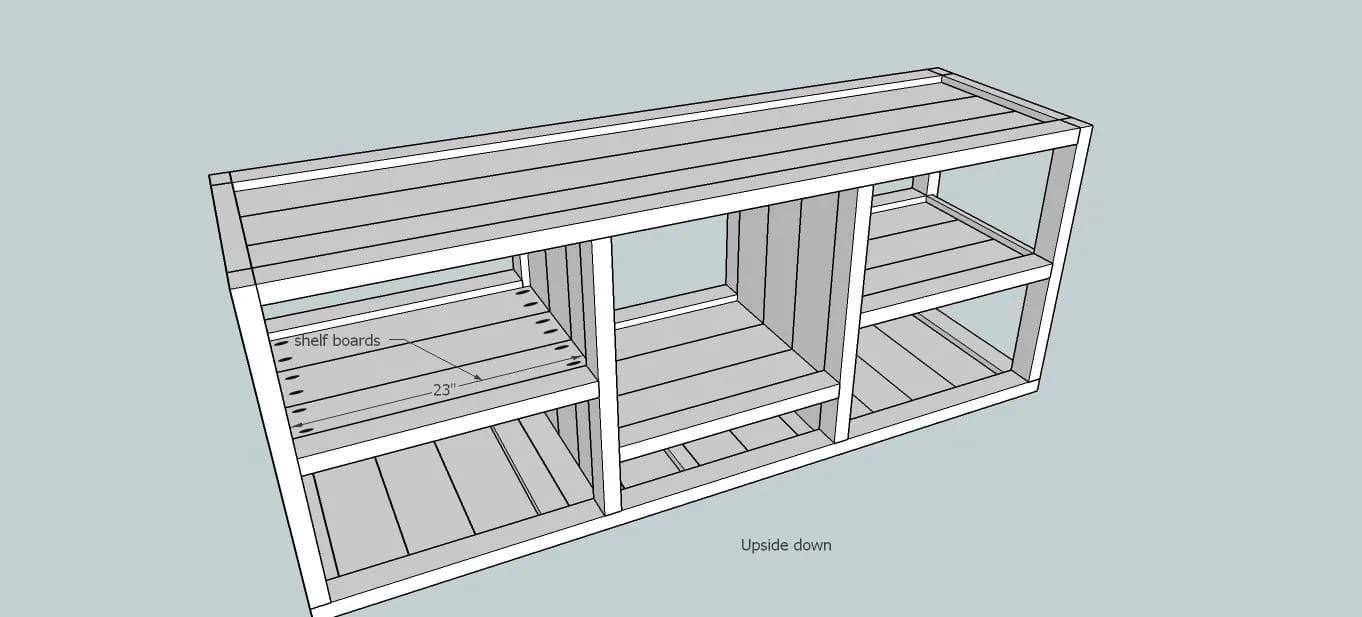

12. 12Step 13

    Attach shelf boards!

13. 13Step 6

    NOTE: All 1x6 boards will have pocket holes drilled at 3/4" (since this is the actual dimensions of 1x boards) and attached with 1 1/4" pocket hole screws! I am not sure why but I forgot to place the black ovals on this picture...all boards will be pocket holed on the ends...making sure 1x boards are drilled at 3/4" and 2x boards are drilled at 1 1/2"! I attached the top at this time to make sure I didn't have any boards in my way while I was screwing all the boards in...I chose to go with a bunch of short boards rather than doing them long ways just to give it a different look!

14. 14Step 15

    • Build the drawer boxes!

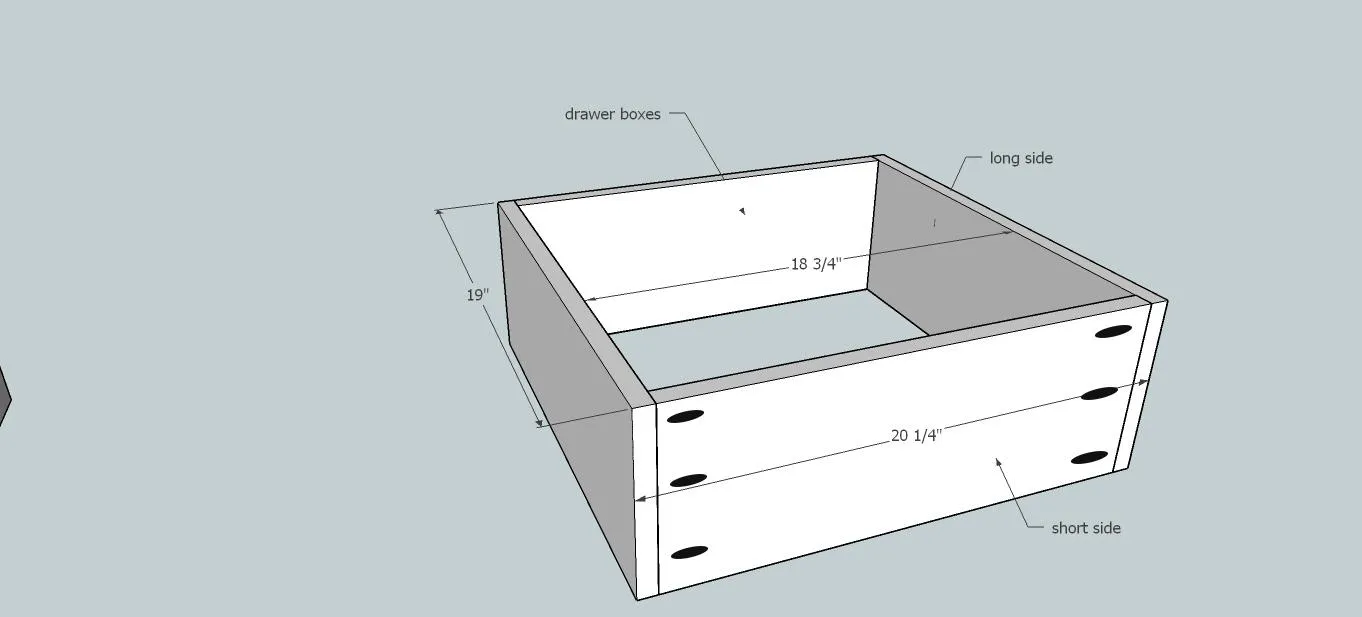

    • Place the long drawer sides parallel to each other and the short drawer sides parallel to each other with the short sides inside the long sides! Does that make sense? NOTE: Before you construct your drawer boxes make sure and measure your opening with the drawer slides as best you can because all slides are slightly different sizes...and depending on even the slightest measurement that may become off while building the frame can create smaller or larger measurements! Make sure your drawer is square!!
    • Also I place the pocket holes on the outside of the drawer as the drawer face will cover them and you wont have to see them inside the drawer!

15. 15Step 16

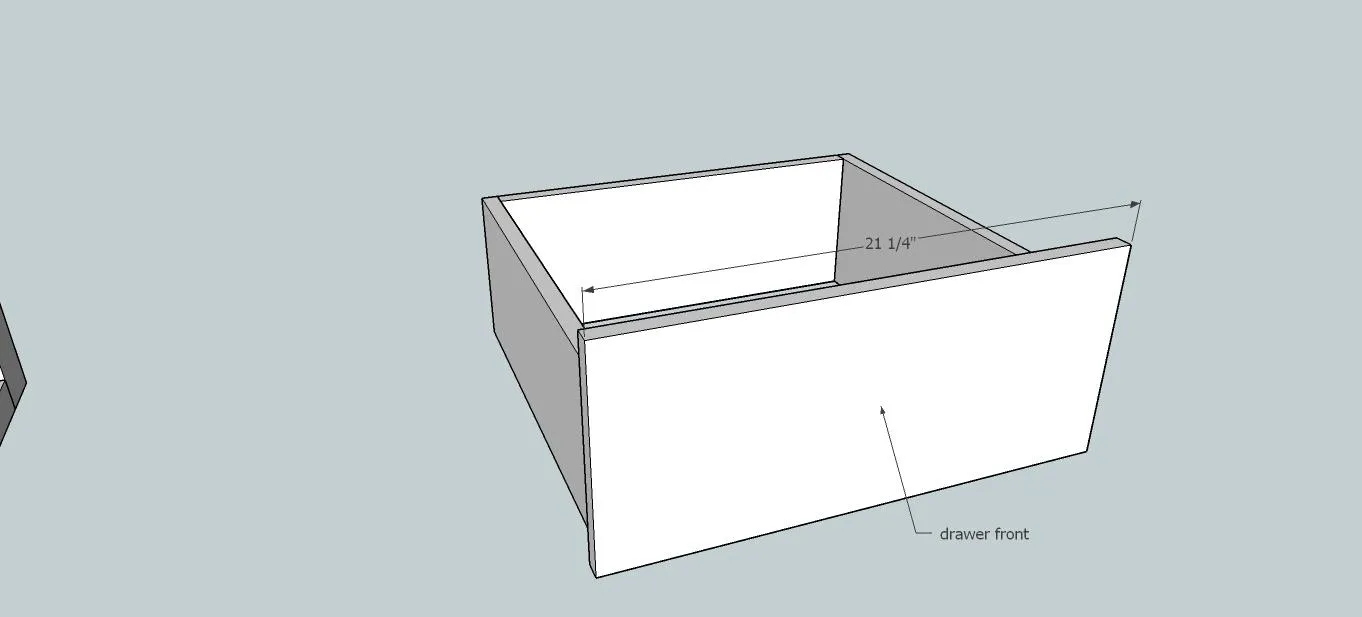

    Attach the drawer faces to the drawer!! Center it and using glue and a staple gun or brad nailer, shoot staples/nails through from the inside, not using larger than 1 1/4" staples/nails!

16. 16Step 17

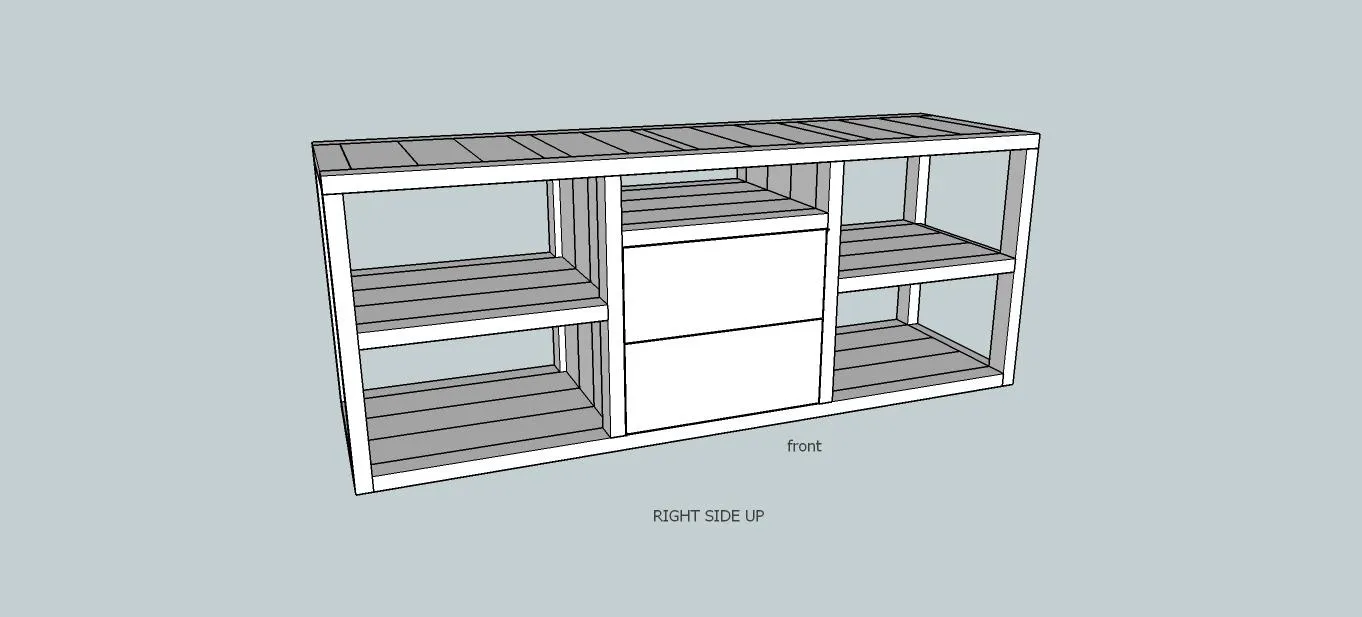

    Attach drawer slides and insert drawers! (If only it was as quick and easy as typing it just was! Lol!)

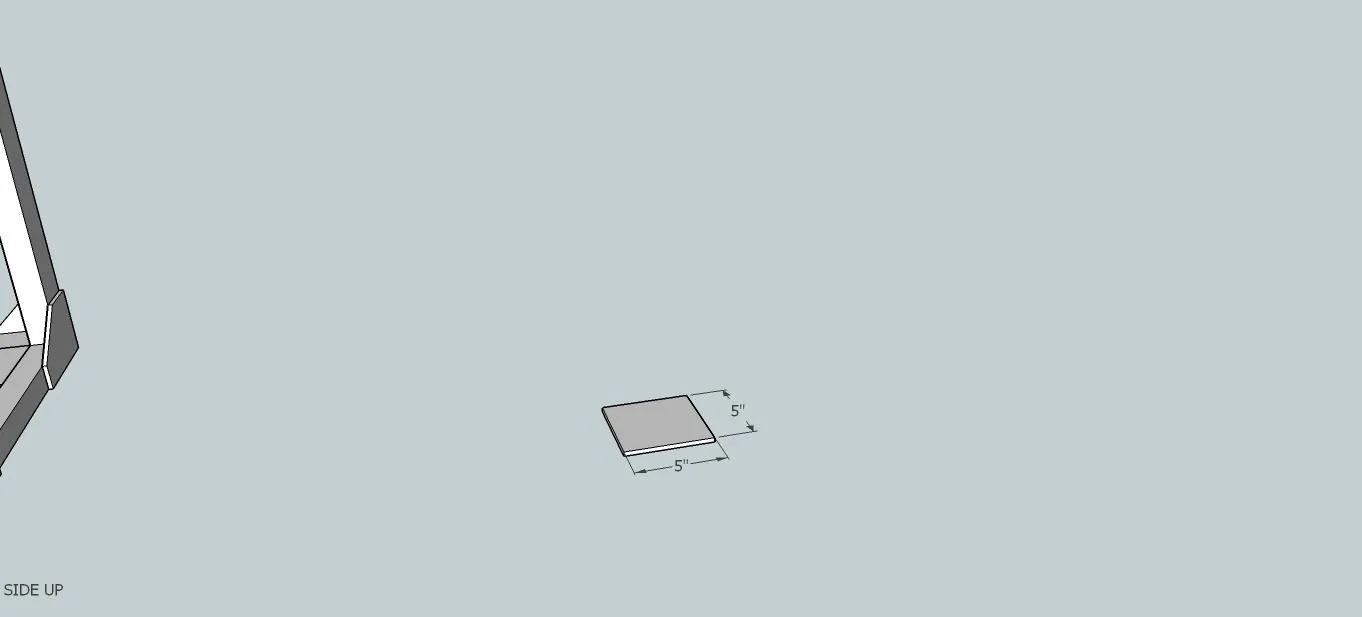

17. 17Step 18

    Make corner decorative pieces by cutting 5" squares out of scrap 1/4" plywood!

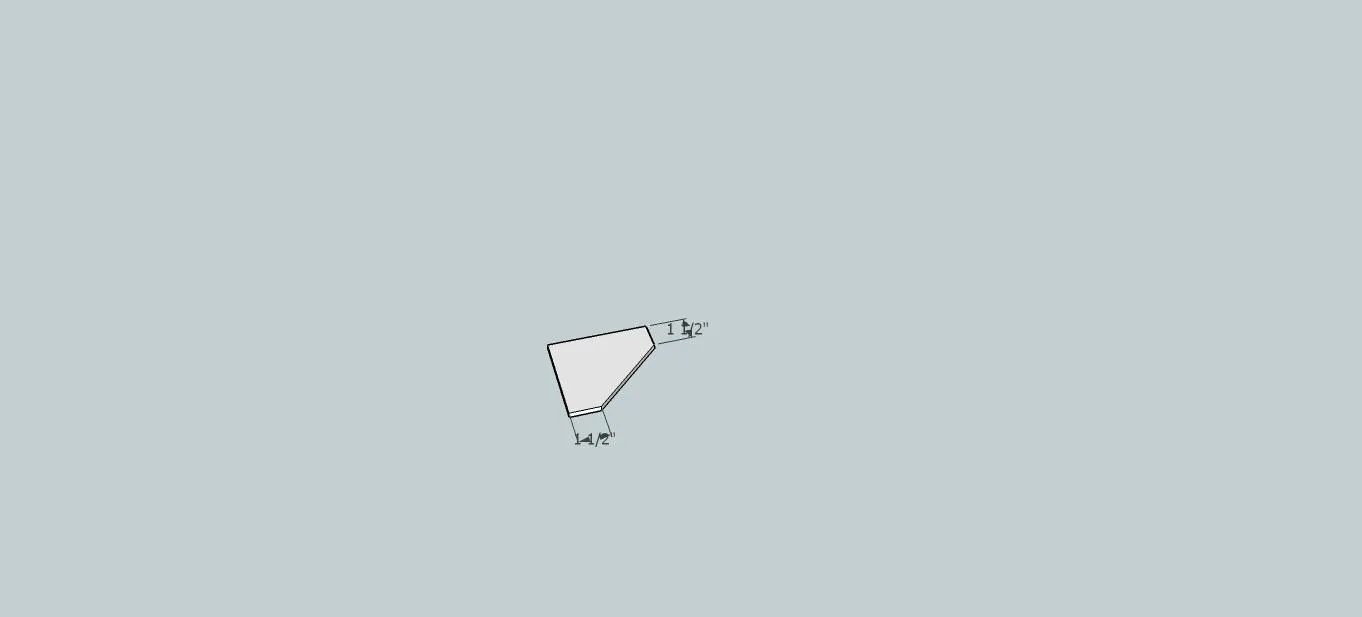

18. 18Step 19

    Now cut at 45 degrees off square 1 1/2" down from each corner!

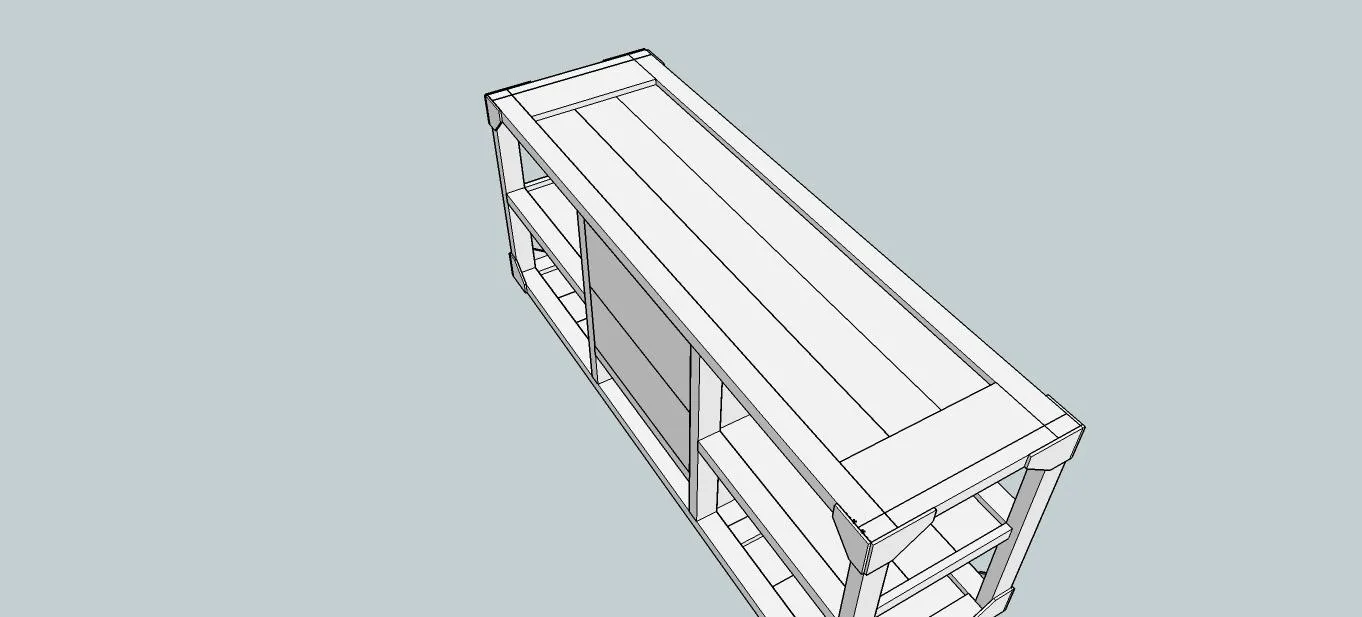

19. 19Step 20

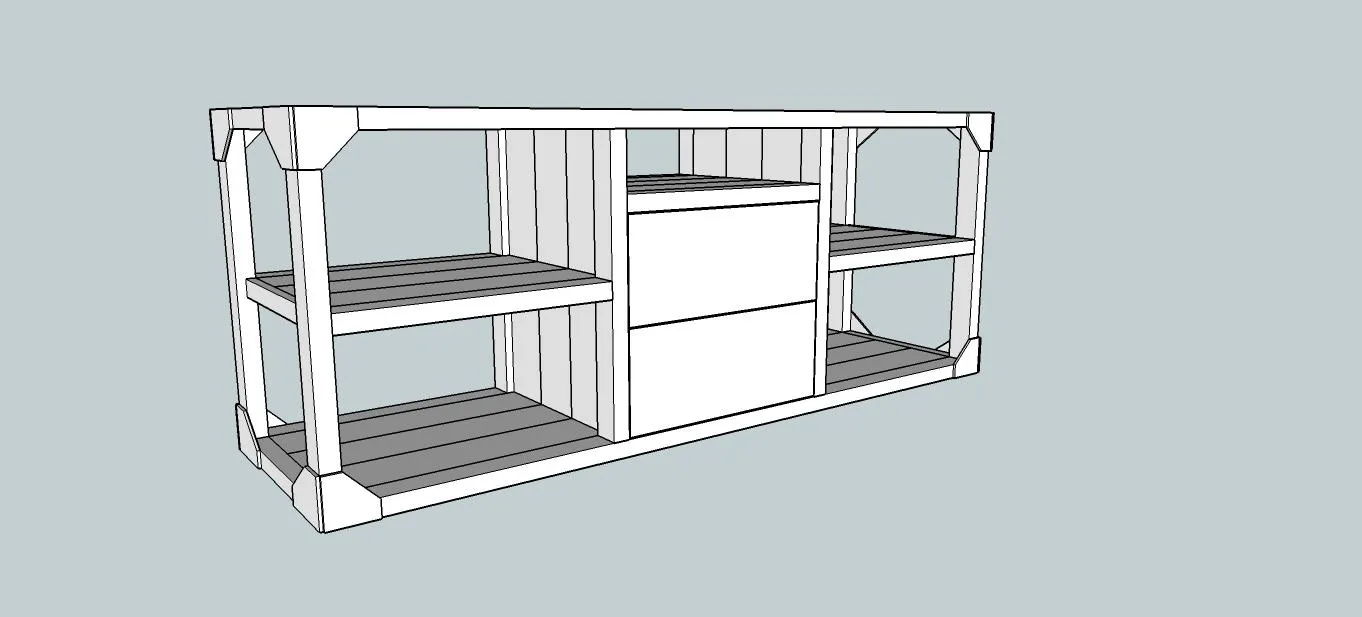

    Using upholstery tacks, hammer the corner decorative pieces onto the console lining them up flush with the outside corners and top or bottom!

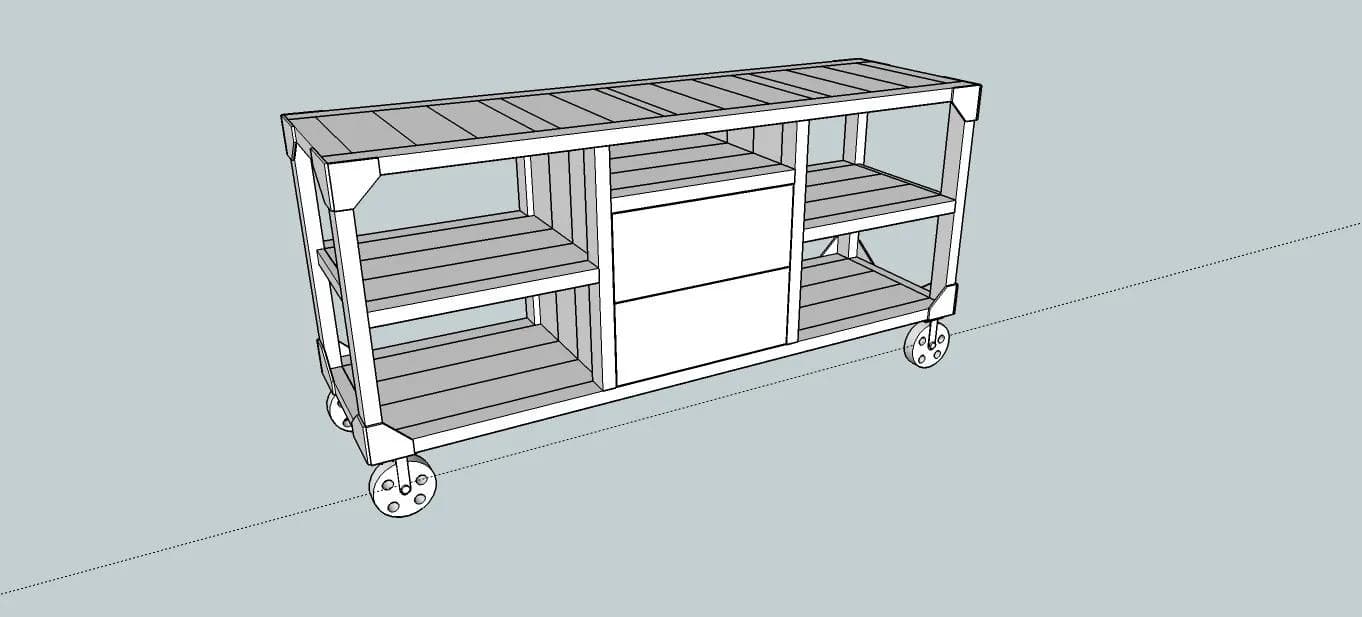

20. 20Step 21

    Make sure and sand everything and then choose your finish! Turn it over once it's dry and attach the wheels! Make sure and pre-drill for your large hex bolts! NOTE: I used Early American stain by Minwax and rubbed it in very lightly with a cloth, for the metal I used Rustoleum Flat Black from a can so it would match the spray paint perfectly that I used on the wheels, which was Rustoleum Flat Black spray paint! It is complete!!! Woohoo!! Now stand back and marvel at your amazing work!! P.S. Don't laugh at those fancy wheels I created in Sketchup!! Haha!!

21. 21Step 14

    Add the wheel leveling boards! I just glued them and screwed them in with 1 1/4" screws making sure the screws are sunk a hair! (I know the picture shows doing them after everything else is attached but it's easier to do them before adding drawers and turning it over...so I would do them now, but it can wait until right before you attach the wheels!
