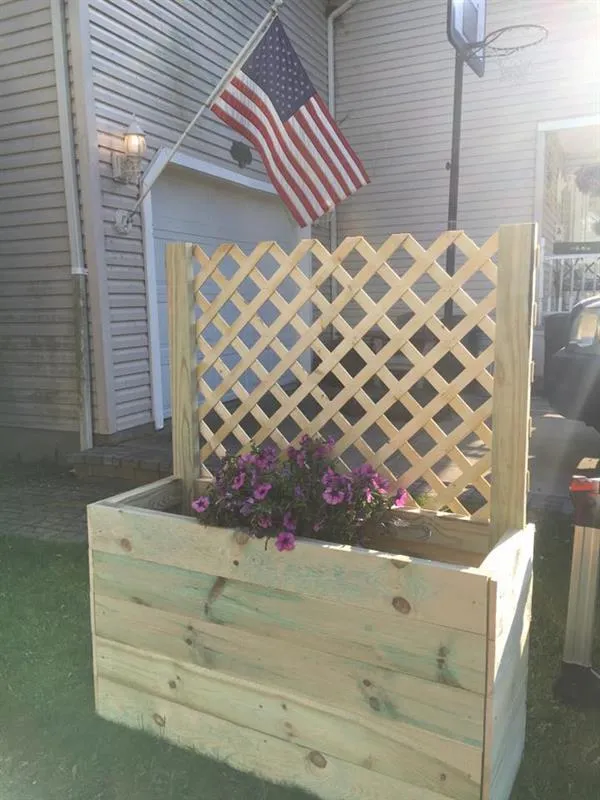

A Wonderful Garden planter with Lattice to grow your viney plants towards the sun! The plans utilize Kreg Jig Blue Kote screws which are for external use, as well as the Kreg Jig K4 System. Treated Lumber was used, however feel free to use Cedar or Painted Pine!
| Item | Qty |
|---|---|
| Treated Lumber, 2x4 120" | 4 board |
| Pressure Treated Lattice, 1/4" Thick 32 1/4 by 48 inches wide | 1 board |
| Pressure Treated Dog Earred posts, 1x6 72" | 13 board |
| Kreg Jig Pocket Hole Screws | 100 each |
| 1 1/4 inch deck screws | 50 each |
| 18 gauge brad nails | 100 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Rear vertical posts | 2 | 3 1/2" × 60" × 60" |
| Horizontal rear/front horizontal posts | 4 | 1 1/2" × 3 1/2" × 41" |
| Front vertial posts | 2 | 1 1/2" × 3 1/2" × 27 1/2" |
| Side and bottom pieces | 6 | 1 1/2" × 3 1/2" × 13 1/2" |
| Front/rear braces | 2 | 1 1/2" × 3 1/2" × 18" |
| Front/Rear/Floor pieces | 13 | 3/4" × 5 1/2" × 48" |
| Side pieces | 12 | 3/4" × 5 1/2" × 17 1/2" |
| Lattice | 1 | 1/4" × 32" × 48" |
Buy 20 boards at 8 ft.
2 boards
4 boards
13 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Using a Miter saw or Circular saw, cut the boards as follows..... 2 by 4 cut list: 2- 60 inches 4- 41 inches 2- 27.5 inches 6- 13.5 inches 2- 18 inches Dog Earred fence post cuts 13- 48 inches 12-17.5 inches Lattice 1 piece of lattice cut to 4 feet wide and 32 1/4 inches in height
Drill 2 pocket holes into the ends of the following board lengths 41 inch boards 13.5 inch boards 18 inch boards
Measure and mark on your 60 inch pieces 2.5 inches, and again at 27.5 inches. attach 2 of your 41 inch boards with pocket screws above the 2.5 line and below the 27.5 inch line.
Measure up 2.5 inches and mark that spot. Using your 2- 27.5 inch boards, take the remaining 41 inch boards and again attach the 41 inch board using Kreg Jig Blue Kote screws to the 27.5 inch board above the 2.5 inch line and flush at the top of the 27.5 inch board
Using 4 of the 13.5 inch boards with pre-drilled Pocket holes, above the 2.5 inch mark and below the 27.5 inch mark connect the rear and front frame.
Use the last 2- 13.5 inch boards, centered at 16.5 inches from the left and right edges and attach them using pre-drilled pocket holes with Blue Kote screws.
Using the 2- 18 inch boards, center them in the front and the rear of the frame. Attach them both with the pocket holes, using Kreg Jig, blue Kote pocket screws.
Using 2 of the 48 inch cut Dog Earred fence posts, and a 2 inch strip of another, secure them to the bottom using 1 1/4 inch deck screws. I leave a small gap in the center for drainage. Note: you can raise the bed to do a "fake Floor" as well at whatever height you want buy adding the 13.5 floor joists at the height desired.
Working up from the bottom to the top lip. Using 5 of the 48 inch cut Dog eared fence posts in the front and 5 in the rear attach them using 1 1/4 inch deck screws.
Using 5 of the 17.5 inch Dog Eared fence posts on each side, again working from the bottom to the top edge attach them to each side using 1 1/4 inch deck screws.
Using an 18 inch brad nailer, attach the 48 wide by 32 1/4 high piece of lattice to the back side of the planter.
