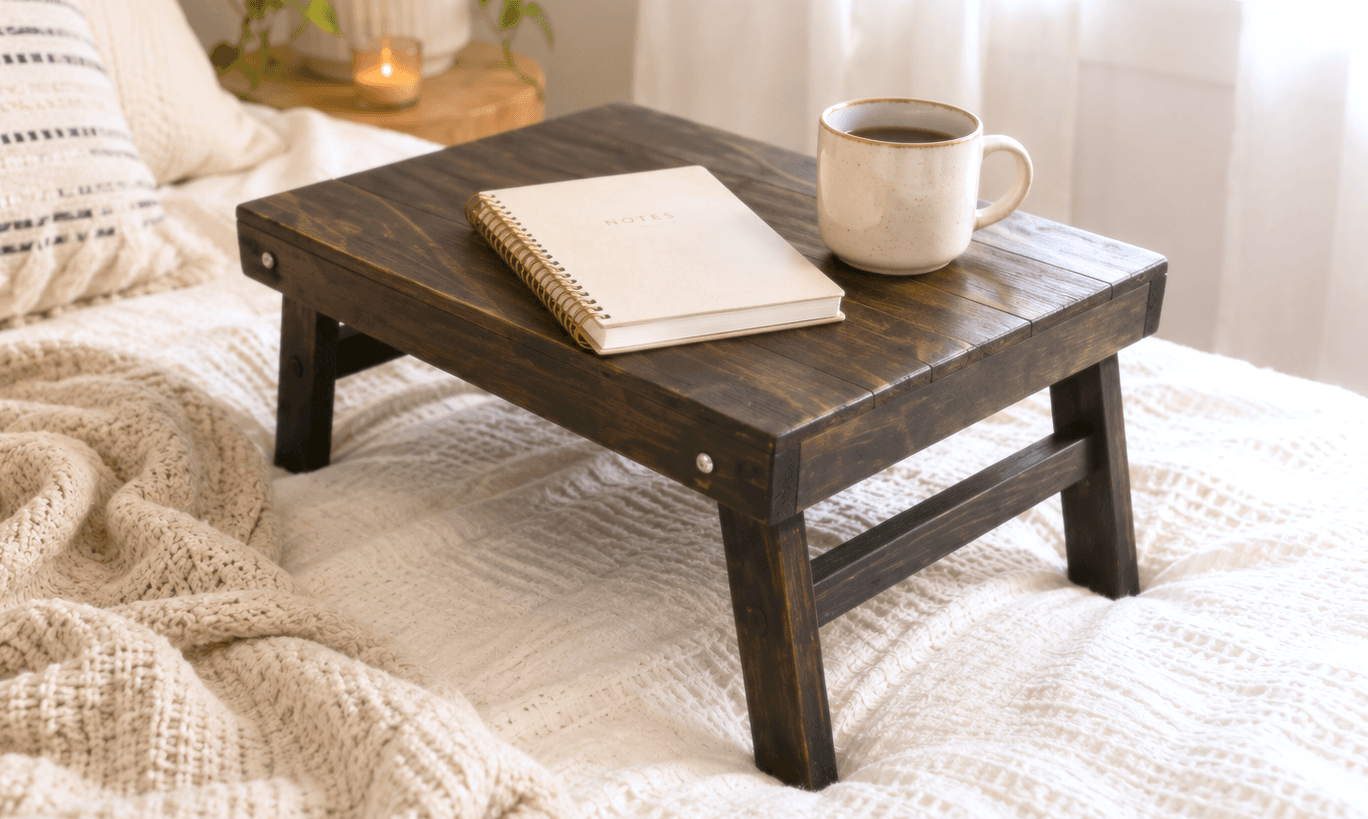

The folding bed tray is a gift-shop staple that costs three boards to build: a 1x2 frame under a smooth 1/4" plywood top, with two U-shaped leg sets that pivot flat on 1/4" bolts. Breakfast in bed, laptop desk, couch dinner tray — and it stores flat behind the nightstand between uses.
The legs carry the plan's two smart cuts. The tops of the leg uprights are pointed at 45° so they can rotate past the frame as they fold — a square top jams against the tray on the way around. And the bottom corner takes a 15° miter, which the source credits with two jobs: the angled foot sits flatter on a bedspread when the legs are open (they splay slightly), and the cut corner becomes the FINGER PULL you grab to unfold the legs. One small miter, two functions — the kind of detail worth stealing for other builds.
The pivot stack is bolt / frame / leg / washer / nut. Snug the nuts until the legs swing with friction but hold their position; nylon lock nuts hold that adjustment forever, plain nuts need a re-snug every few months.
Use SMOOTH plywood for the top (sande ply, as sourced, or any clean-faced 1/4") and finish with a wipeable topcoat — this surface will meet coffee, syrup, and watercolors, possibly the same morning. Round every corner and edge generously; it's furniture that lives in laps.
| Item | Qty |
|---|---|
| 1x2, 12 linear ftFrame and legs. Pick clear, straight stock — thin parts show every knot. | 12 linear ft |
| Sande plywood, 1/4", 24" x 13-1/2"The top. Any smooth-faced 1/4" ply works. | 1 each |
| Bolts, 1/4" x 2-1/2", with washers and nutsNylon lock nuts hold the pivot friction where you set it. | 4 each |
| Brad nails, 1-1/4" | 30 each |
| Wood glue | 2 oz |
| Paint or stain plus clear topcoatWipeable topcoat — syrup is coming. | 8 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame sides1x2The pivot bolt holes drill through these. | 2 | 3/4" × 1 1/2" × 24" |
| Frame ends1x2 | 2 | 3/4" × 1 1/2" × 12" |
| Leg cross rails1x2 | 2 | 3/4" × 1 1/2" × 10 1/2" |
| Leg uprights1x2Top cut to a 45° point (clears the frame in the fold), bottom at 15° (flat foot + finger pull). | 4 | 3/4" × 1 1/2" × 9 3/4" |
| Top1/4" plywood | 1 | 1/4" × 13 1/2" × 24" |
Buy 3 boards at 8 ft.
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Mark the bolt positions on the 24" frame sides and drill the 1/4" holes — straight through, square to the face; a crooked pivot hole becomes a leg that splays its own direction. Then assemble the frame rectangle with glue and brads (screws or pocket holes if you prefer).
Don't fuss over frame strength — the plywood top, once glued on, turns the frame into a rigid panel.
Cut the four uprights — 45° point at the top, 15° miter at the bottom corner — and join each pair with a cross rail into a U. Drill the 1/4" pivot holes through the pointed tops, matching the frame's hole spacing exactly (stack-drill frame and leg together if you can clamp them aligned).
The 15° foot miter is the double-duty cut: flatter footing on soft surfaces when the legs splay open, and the cut corner is the finger pull for unfolding. Small cut, keep it.
Stack each pivot: bolt head outside the frame, through the frame side, through the leg, washer, nut inside. Snug until the legs swing smoothly but hold position — then fold and unfold both sets a dozen times and re-check. Lock nuts keep the setting; plain nuts will want seasonal attention.
Glue and nail the plywood top to the frame, smooth face up. Sand every edge and corner to lap-friendly round, then paint or stain and seal with a wipeable clear coat.
Personalize if it's a gift — a monogram, a painted border — and, per the source's closing instruction, don't forget the pretty bow.
