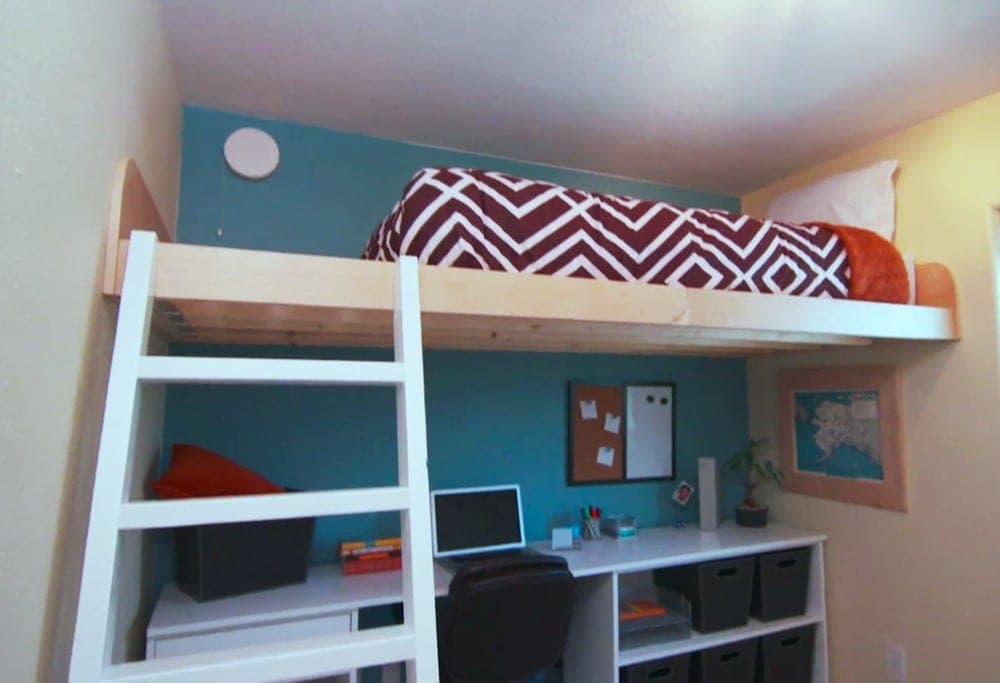

This bed has no legs and no floor footprint — it's a wall cleat, a row of joist-hung studs, and a decking surface, built exactly like a small floor inside a room rather than a piece of furniture. That makes it the right answer for a genuinely tiny room where floor space under the bed matters more than anything else, and the wrong answer anywhere the framing can't support it.
This build only works if every fastener lands in real wall framing. Find and mark every stud across the bed's width with a stud finder before cutting a single board, and hang the wall cleats to as many of those studs as you possibly can, two structural screws per stud. This is sized here for a twin mattress (39" wide, 75" long); the wall cleats and studs are cut to that width and length, but the same construction scales to any size as long as you re-measure your own wall's stud layout first.
Joist hangers carry the cross studs from the wall cleats — the same hardware and technique used to frame an actual floor joist, which is exactly the load path this bed needs. For extra security on the back edge, the rear-most stud is also screwed directly into the wall studs behind it, not just hung in its hanger. The 1x6 decking then lays across the studs and gets nailed and glued down, and a 1x6 front trim board caps the open edge — left slightly proud on top so loose items don't roll off, but not a substitute for a real guardrail, which is genuinely recommended here rather than optional.
| Item | Qty |
|---|---|
| 2x4, 8 ftWall cleats and cross studs. | 4 each |
| Joist hangers, 2x4Two per stud. | 10 each |
| Structural screws, 4", star driveLong enough to reach solidly into wall studs. | 30 each |
| Joist hanger nails or structural screws | 40 each |
| 1x6, 8 ftDecking and front trim. | 6 each |
| Finish nails, 1-1/4" | 60 each |
| Wood glue | 3 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Wall cleats2x4Bed width (39") minus 3/4". Re-measure for your own bed width. | 2 | 1 1/2" × 3 1/2" × 38 1/4" |
| Cross studs2x4Bed length (75") minus 3". Spaced evenly, about every 16-18". | 5 | 1 1/2" × 3 1/2" × 72" |
| Decking boards1x6Cut to match your wall cleat length. | 6 | 3/4" × 5 1/2" × 38 1/4" |
| Front trim1x6Cut to fit the actual front of the assembled bed. | 1 | 3/4" × 5 1/2" × 40" |
Buy 10 boards at 8 ft.
6 boards
4 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Find and mark every wall stud across the bed's width with a stud finder before cutting anything. Hang the two 2x4 wall cleats level and secure to as many studs as possible, two structural screws per stud — this is the connection the entire bed's weight travels through.
Attach a joist hanger to each end of every cross stud, then hang the studs between the two wall cleats. For added support, also screw the back-most stud directly into the wall studs behind it, not just through its hanger.
Lay the 1x6 decking boards across the framing and nail down with 1-1/4" finish nails and glue.
Trim out the front edge with a 1x6 board, cut to fit the actual assembled bed, leaving a slight lip on top to keep items from rolling off. A guardrail along the open edge is strongly recommended to prevent falls, especially for a bed this high off the floor.
