Notch- Difficulty
- Intermediate
- Time
- 4–7.8 hours
- Cost
- $
About this build

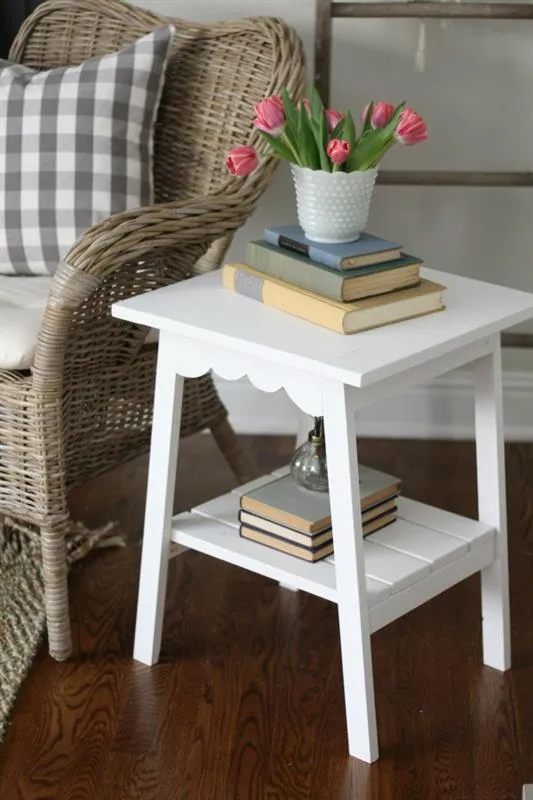

Farmhouse style end table with scallop edging. This is an easy build and a quick weekend project. Perfect for a space space. Can be used as a bedside table or plant stand as well!
Tools
Essential
- Brad Nailer
- Drill / Driver
- Jigsaw
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x2 96" | 1 board |
| Board, 1x2 48" | 1 board |
| Board, 1x4 96" | 1 board |
| Board, 1x4 48" | 1 board |
| Board, 1x3 96" | 1 board |
| Box 1" Kreg Screws | 1 each |
| Box Box 1 1/4" Kreg Screws | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Legs | 4 | 1" × 2" × 23" |
| Side Aprons | 2 | 1" × 3" × 13" |
| Front & Back Scallop Aprons | 2 | 1" × 4" × 10" |
| Bottom Shelf Supports | 2 | 1" × 2" × 13" |
| Bottom Shelf Boards | 2 | 1" × 3" × 15" |
| Bottom Shelf Boards | 2 | 1" × 4" × 15" |
| Top Boards | 5 | 1" × 4" × 13" |
| Top Boards | 2 | 1" × 3" × 17" |
What to buy
Buy 5 boards at 8 ft.
1" × 4"
2 boards
1" × 3"
1 board
1" × 2"
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

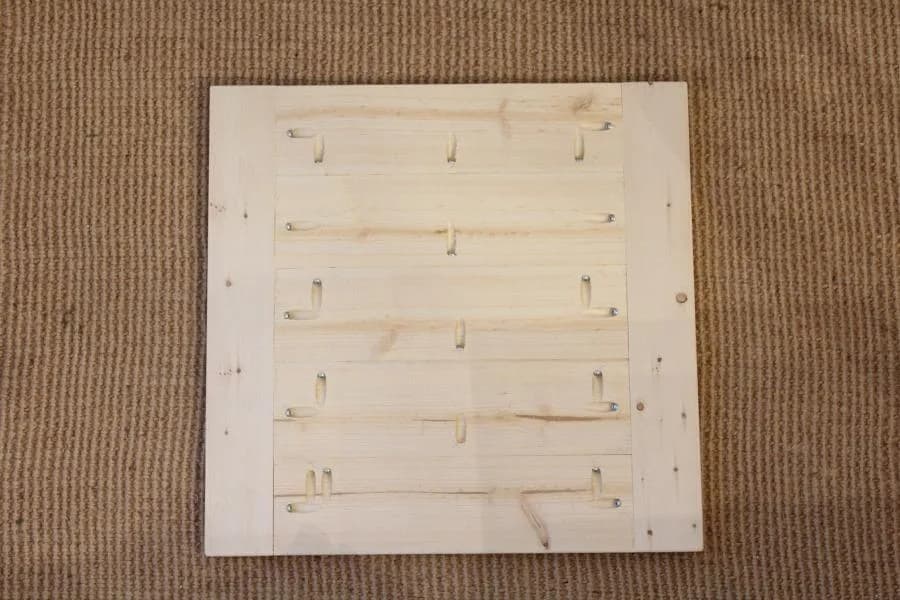

1Assemble the Top
Using 1 1/4 Kreg screws and glue, screw together the top as shown. The five 1x4's should be stacking in the middle with the two 1x3's on the left and right.

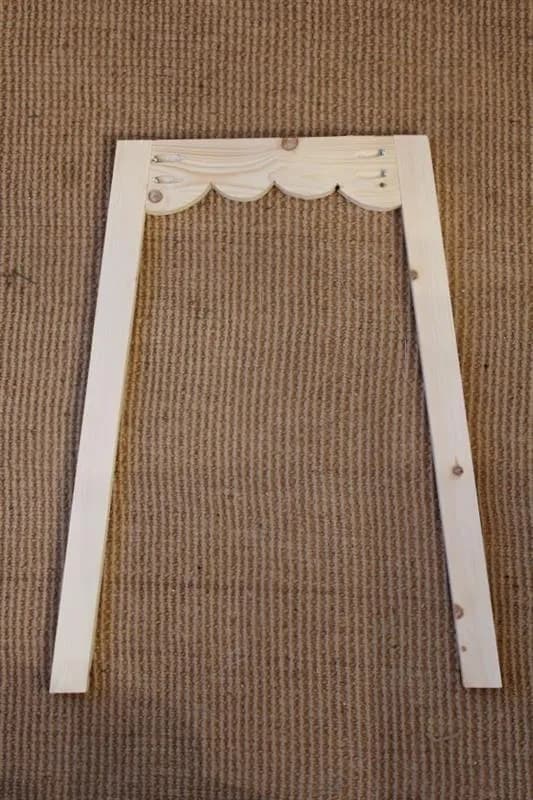

2Attaching the Scalloped Apron
Attach both scalloped aprons to the legs. Legs should be angled outward.
3Add Bottom Shelf Supports
Attach the bottom shelf supports using 1" Kreg screws 7" from the bottom of the leg and centered in the middle. Make sure to keep the support straight up and down and not angled like the leg.

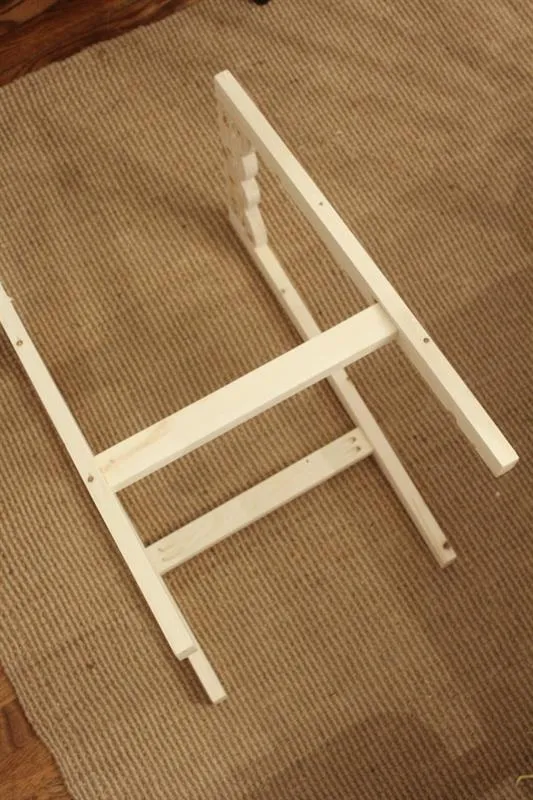

4Attach the Two Sides
Attach the front side and back to one another by the shelf supports using 1" Kreg screws as shown in the photo above.

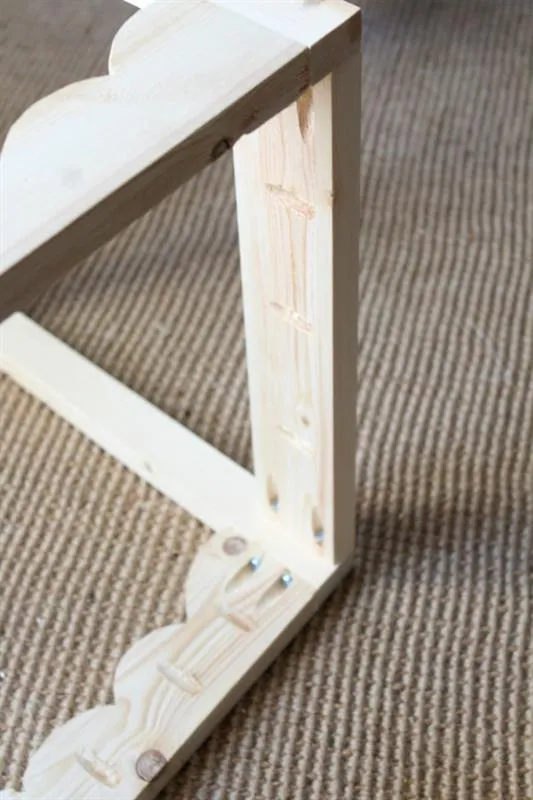

5Add Side Aprons
Attach the side aprons using 1" Kreg screws. Keep the apron flush with the angled legs. The apron will be just slightly angled.

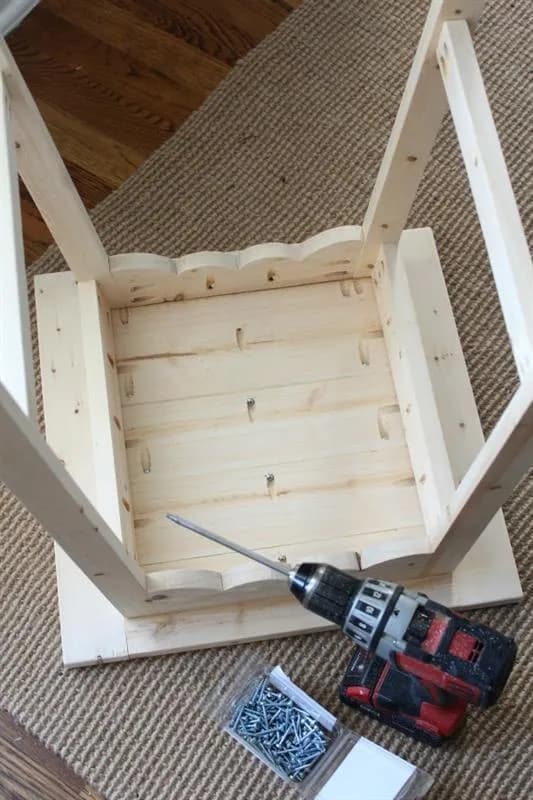

6Attaching the Top
Flip the frame upside down and attach the top using 1" Kreg screws. The front and back of the top should hang off about 1 1/2" and 2 1/2" on the left and right.

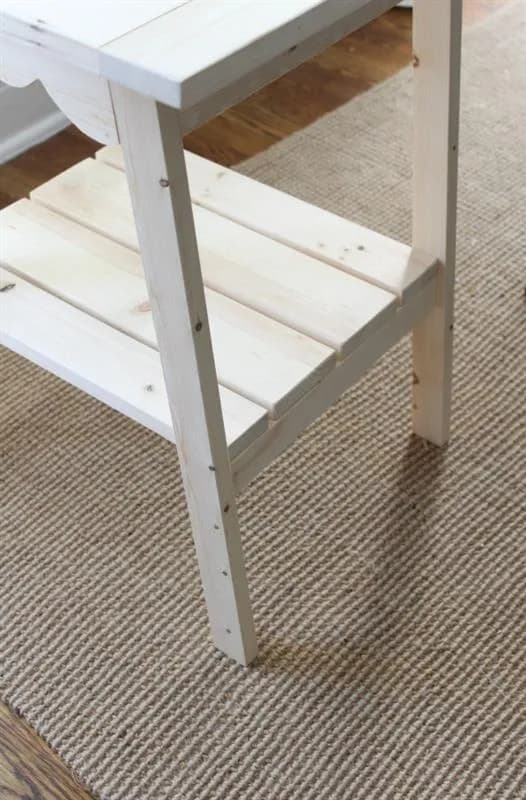

7Add Bottom Shelf
Attach the bottom shelf boards with brad nails. The front and back boards should be right up against the legs and there should be 1/4" gap between each board.
8Apply Your Finish
Fill all the cracks and nail holes with wood filler and sand all over. Apply your favorite stain or paint.

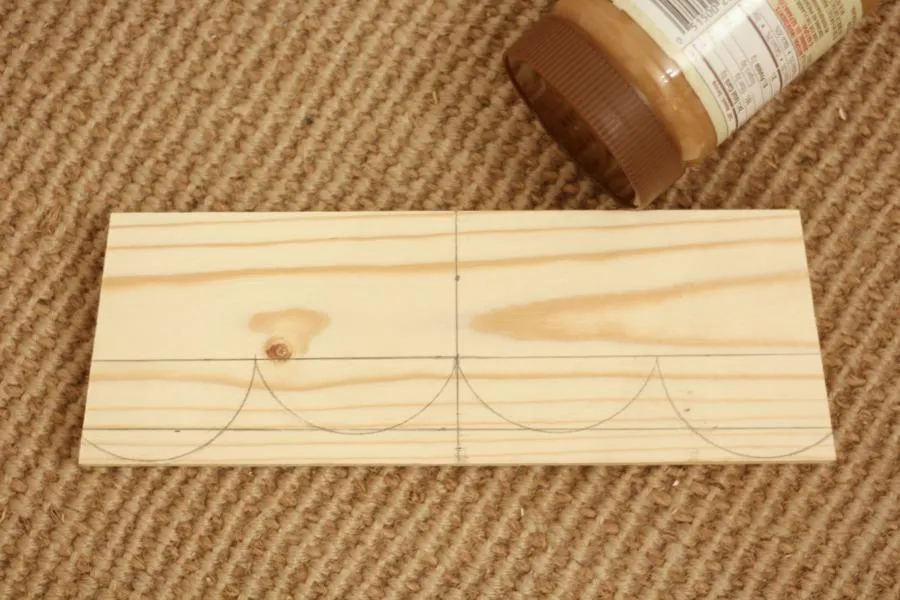

9Cutting the Scalloped Apron
- Cut a 7 degree angle into each end of the apron board. The angles should be cut to the left and to the right, moving away from each other.
- Measure 3" from the bottom and draw a line vertically across the apron. Do the same thing at the 2" mark.
- Measure the center point of the apron and make a line. Using a peanut butter lid or lid that measures 2 3/4" across, place the lid by the center line and just above the 2" line and trace down and around. Move the lid towards the outer edge and move it down just above the bottom of the board and trace. Do these same steps on the other side. Use a jigsaw and clamps to cut out the scallops.
10Visit The Tale of an Ugly House
Visit me at TheTaleofanUglyHouse.com
