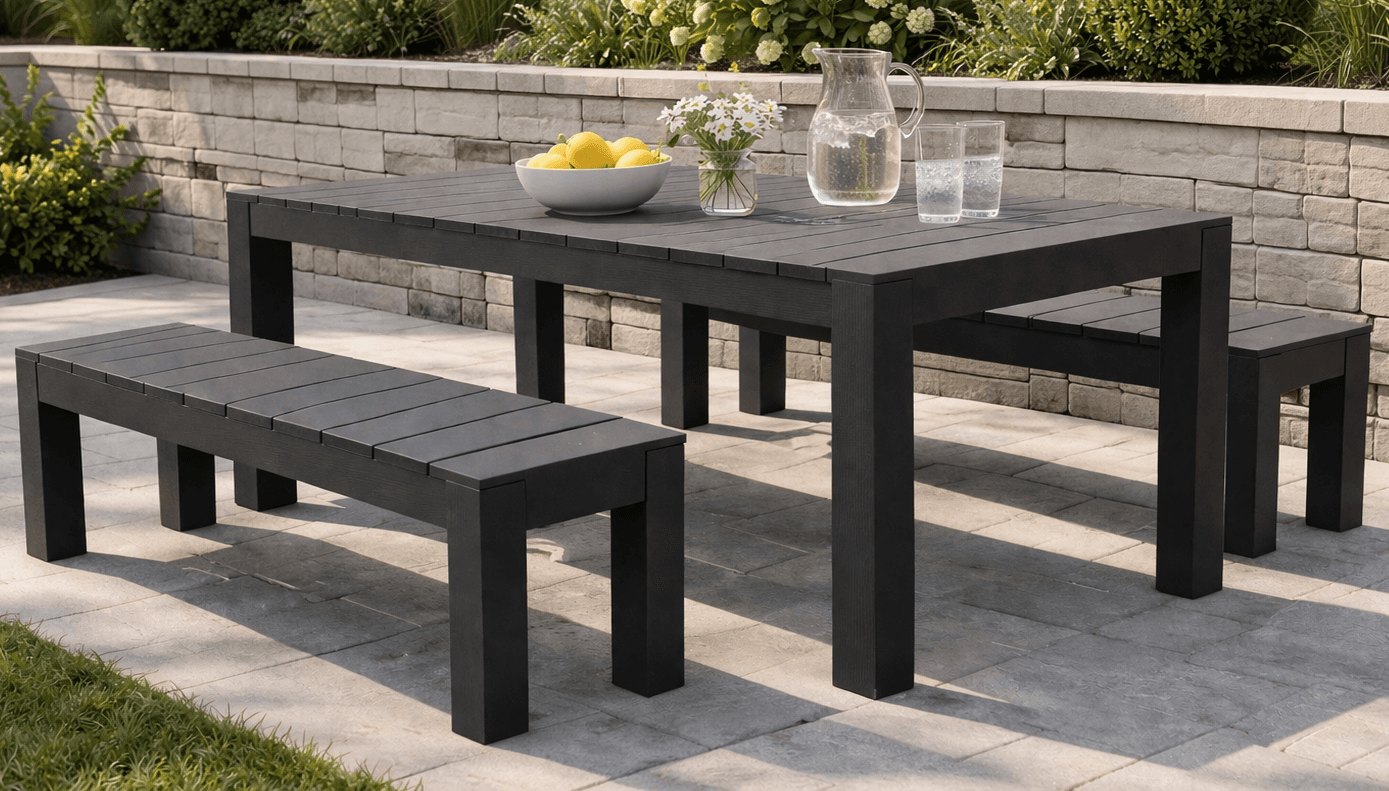

A matched dining set — 77" table, two benches — from three materials: red-toned or treated 4x4s and 2x4s for the frames, and cedar fence pickets for every surface you touch. Pickets as tabletop is the budget unlock, with one condition the shopping list states outright: choose FINE-FINISHED pickets and sand before assembly. A picket that's fine for a fence needs promotion to dinner-table grade, and medium-grit sanding is the promotion.
The joinery insight worth learning lives in the corner blocking (steps 4–5): each 5" block pocket-screws to the LEG and self-taps to the APRONS — so every leg ends up held by FOUR pocket screws instead of two, plus the block's own screws. The source spells out the why: 'this helps by creating four pocket hole screws into each leg.' The table adds 45°-beveled corner braces on top of the blocking, closing each corner into a triangle. It's an extra hour that doubles the frame's joint count, on furniture that gets dragged across patios for a decade.
Bench detail from step 2, not in the cut list but worth doing: double the end aprons — a second 2x4 inside the first — because a bench seats 'multiple people' (the source's polite phrase for 'will be stood on').
Assembly rule for the picket tops: square the frames FIRST, then lay pickets with even gaps and flush ends, 1-1/4" exterior screws. (The source was testing galvanized 15-gauge nails as a cleaner-looking alternative but hadn't yet vouched for it — screws are the proven call, so screws it is.) Finish with a penetrating fence-rated stain, a gallon covering the whole set.
| Item | Qty |
|---|---|
| 4x4, 10 ft, red-toned or treatedTable legs. | 1 each |
| 4x4, 12 ft, red-toned or treatedAll eight bench legs. | 1 each |
| 2x4, 8 ft, red-toned or treatedTable and bench aprons, supports, and blocking. | 8 each |
| Cedar fence picket, 5-1/2" x 72", not dog-eared, fine finishedTable top (7) and two bench tops (6). Sand with medium grit before assembly. | 13 each |
| Pocket hole screws, 2-1/2", exterior blue-coat | 85 each |
| Exterior screws, 2-1/2", self-tappingBlocking to aprons. | 56 each |
| Exterior screws, 1-1/4"Picket tops. Galvanized nails were being tested by the source — screws are the proven method. | 135 each |
| Penetrating exterior stain, solid or semi-transparentFence-rated. One gallon covers the set. | 1 gal |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Table legs4x4 | 4 | 3 1/2" × 3 1/2" × 29 1/4" |
| Table end aprons2x41-1/2" pocket holes each end. | 2 | 1 1/2" × 3 1/2" × 28" |
| Table side aprons2x4 | 2 | 1 1/2" × 3 1/2" × 73 1/4" |
| Table center support2x4 | 1 | 1 1/2" × 3 1/2" × 77 1/4" |
| Corner blocking2x4One end 45° bevel, long point; pocket holes on the straight end. These double each leg's screw count. | 8 | 1 1/2" × 3 1/2" × 5" |
| Table corner braces2x445° bevels both ends, long point to long point. | 4 | 1 1/2" × 3 1/2" × 12 7/8" |
| Table top picketsCedar fence picket | 14 | 5/8" × 5 1/2" × 35" |
| Bench legs4x4For two benches. | 8 | 3 1/2" × 3 1/2" × 17 1/4" |
| Bench end aprons2x4Optionally doubled with an inside second apron — recommended; benches get stood on. | 4 | 1 1/2" × 3 1/2" × 10" |
| Bench seat supports2x4 | 4 | 1 1/2" × 3 1/2" × 14" |
| Bench side aprons2x4 | 4 | 1 1/2" × 3 1/2" × 61 3/4" |
| Bench corner blocking2x4 | 8 | 1 1/2" × 3 1/2" × 5" |
| Bench top picketsCedar fence picketTwelve per bench. | 24 | 5/8" × 5 1/2" × 17" |
Buy 23 boards at 8 ft.
3 boards
Before anything is a table, sand every picket with medium grit on both faces and all edges. Flat pickets on sawhorses sand in minutes; installed tabletop boards sand in regret. This is the step that turns fence material into furniture material.
Pocket-hole the end aprons (two holes per end) and attach to the 4x4 legs, back edges flush — two table leg pairs, four bench leg pairs.
On the benches, consider the source's reinforcement: a second apron doubled inside the first, pocket-screwed AND self-tapped, putting extra screws into each leg. Benches carry standing humans; the upgrade is one offcut per corner.
Join each piece's leg pairs with its side aprons — 2-1/2" pocket screws — and add the table's center support down the middle. Square everything by diagonals now; the blocking is about to lock in whatever shape exists.
Cut the corner blocking (45° bevel on the table's, square on the benches') with pocket holes on the straight ends. Screw each block to the APRONS with 2-1/2" self-tapping screws, then drive its pocket screws into the LEG.
Count what just happened: each leg now holds four pocket screws plus the block's fasteners. That redundancy is why this set survives being dragged across a patio by one end for the next decade.
Add the four 45° corner braces across the table's blocking, attaching to blocking and aprons. The source recommends them 'to keep the table square and added longevity' — triangles again, doing what triangles do. Re-check square before moving on.
With each frame squared and sitting on level ground, lay out the pickets — ends flush, gaps even — and screw down with the 1-1/4" exterior screws. (The source was mid-experiment on galvanized nails instead; until that verdict lands, screws are the proven answer.)
Stain everything with the penetrating fence stain, all faces. Then seat eight, feed them outdoors, and mention casually that the whole set is fence pickets. Watch nobody believe you.
No reviews yet
Sign in to review this plan or share your build.
No reviews yet. Be the first to build this.
9 boards
11 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
