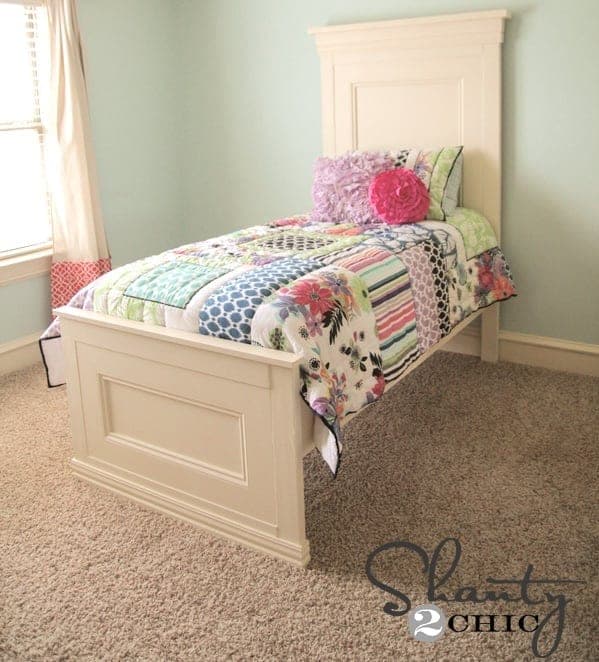

Underneath the moulding, this is a straightforward panel bed: 2x4 legs, a plywood panel front, and a top rail on the headboard; a mitered 1x4 frame around a plywood panel on the footboard. What makes it read as "elegant" rather than utilitarian is entirely in the trim — crown moulding around the top of the headboard, base moulding applied to both panels — so take real care with the moulding miters. A slightly gapped miter joint is the single most obvious sign of a rushed build on a piece like this.
This headboard is tall and the bed will get pushed against and climbed into regularly, so anchor it to a wall stud behind the bed, not just to the side rails. A headboard this size relying only on the side-rail connection for stability is a genuine tip-forward risk, not just a suggestion.
| Item | Qty |
|---|---|
| 2x4 board, 8 ft | 5 each |
| 1x4 board, 10 ft | 2 each |
| 3/4" plywood or MDF, 4x8 sheet | 1 each |
| 1x3 board, 4 ft | 1 each |
| 1x12 board, 8 ftSide rails — cut to 75" for a twin mattress. | 2 each |
| 5-1/4" base moulding | 20 linear ft |
| Crown moulding | 8 linear ft |
| Pocket-hole screws, 1-1/4" | 40 each |
| Wood glue | 4 oz |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Headboard legs2x4 | 2 | 1 1/2" × 3 1/2" × 72 1/2" |
| Headboard top rail2x4 | 1 | 1 1/2" × 3 1/2" × 35" |
| Headboard front trim1x4 | 2 | 3/4" × 3 1/2" × 35" |
| Headboard panel3/4" plywood or MDF | 1 | 3/4" × 48" × 35" |
| Headboard header2x4 | 1 | 1 1/2" × 3 1/2" × 46" |
| Footboard frame bottom1x3 | 1 | 3/4" × 2 1/2" × 43" |
| Footboard frame sides1x4 | 2 | 3/4" × 3 1/2" × 27" |
| Footboard frame top/bottom rails1x4 | 2 | 3/4" × 3 1/2" × 35" |
| Footboard panel3/4" plywood or MDF | 1 | 3/4" × 35" × 25 1/4" |
| Side rails1x12 | 2 | 3/4" × 11 1/4" × 75" |
| Side rail cleats2x4 | 2 | 1 1/2" × 3 1/2" × 75" |
Buy 13 boards at 8 ft.
5 boards
1 board
1 board
2 boards
3 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the headboard top rail to the two legs, then attach the two 1x4 front trim boards flush to the front face.
Attach the plywood panel to the legs, top rail, and 1x4 trim, screwing into all of them for a solid attachment. Then attach the header board to the top of the headboard frame.
Miter and attach crown moulding around the top of the headboard. Cut a test miter in scrap first and check the fit before committing your real moulding — crown moulding miters read the corner angle differently than flat trim, and it's the detail people notice first on a piece like this.
Build the footboard frame from the 1x3 bottom and 1x4 sides and top/bottom rails, using 3/4" pocket holes and 1-1/4" pocket hole screws throughout.
Attach the plywood panel to the back of the footboard frame. Apply base moulding to the bottom and around the inside edge of the panel, nailing and gluing it down — the moulding is what turns a plain panel into a detailed one, so keep your miters tight here too.
Attach cleats to the inside faces of both side rails at a height matched to your mattress or box spring. Attach the side rails to the headboard and footboard, then rest slats (or a box spring) across the cleats — cut slats from 1x or 2x stock to the 39" inside width if not using a box spring.
Given the height and weight of this headboard, anchor it to a wall stud behind the bed before loading it up — don't rely on the side-rail connection alone to keep it from tipping forward.
