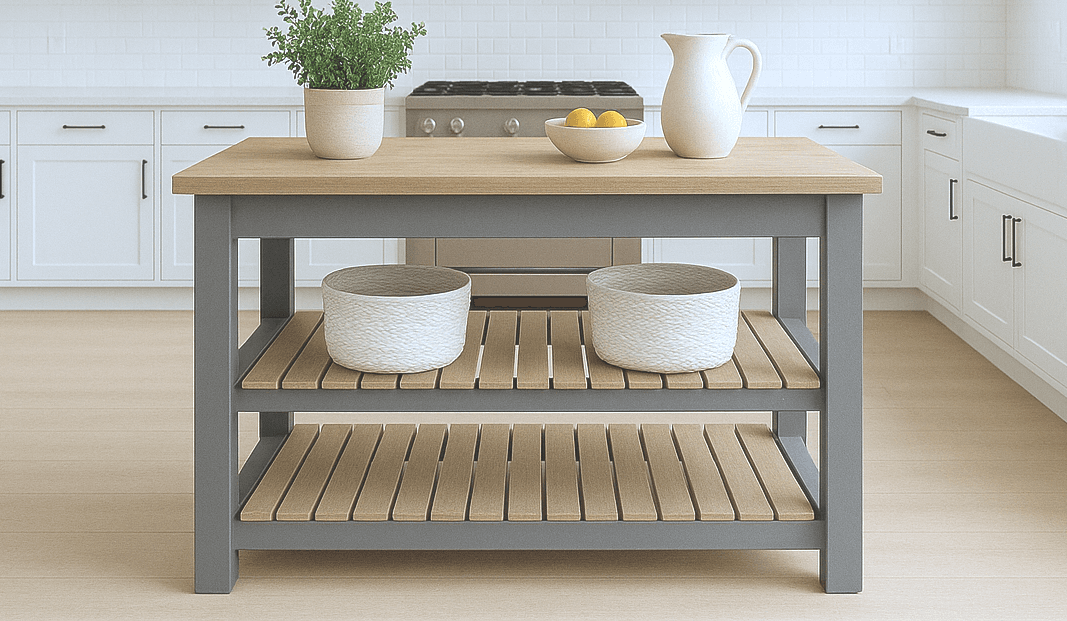

This island is deliberately written to work whether or not you own a pocket-hole jig — every joint has both a pocket-screw version and a self-tapping-screw version, and neither one is the "real" way to build it. That flexibility is what makes this a genuinely good first big furniture project.
The two end frames are the foundation everything else references, and the plan's own tip is worth following exactly: check square by measuring both diagonals and adjusting until they match, and add the shelf slats from a later step now if it helps hold the frame square while you work. A frame that racks even slightly before the legs go on stays racked for the rest of the build.
Leg attachment gets one small but real detail — drive the screws at a slight angle rather than straight in, which meaningfully improves the joint's structural strength over a dead-perpendicular screw. The shelf slats are prefinished BEFORE cutting, specifically so the only touch-up needed after assembly is the cut ends — finishing a shelf full of installed slats one at a time is a much worse afternoon.
The tabletop supports do double duty: lateral bracing for the whole island, and the attachment point the tabletop screws into from below. Build the top separately with a pocket-hole jig if you have one — a solid pre-joined top attaches cleanly in one step, while building it in place is fussier.
| Item | Qty |
|---|---|
| 2x6, 8 ft (or 1x6 for a smoother tabletop) | 2 each |
| 2x4, 8 ft | 5 each |
| 2x2, 8 ft | 1 each |
| 1x4, 8 ftShelf slats — prefinish before cutting. | 5 each |
| Self-tapping screws or pocket hole screws, 2-1/2" | 60 each |
| Brad nails, 1-1/4" | 40 each |
| Wood glue and finishing supplies | 1 set |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame, long2x4 | 4 | 1 1/2" × 3 1/2" × 44" |
| Frame, short2x4 | 4 | 1 1/2" × 3 1/2" × 18" |
| Legs2x4 | 4 | 1 1/2" × 3 1/2" × 34 1/2" |
| Shelf supports2x2 | 2 | 1 1/2" × 1 1/2" × 47" |
| Shelf slats1x4Prefinish before cutting so only the cut ends need touch-up later. | 24 | 3/4" × 3 1/2" × 18" |
| Tabletop boards2x6 | 4 | 1 1/2" × 5 1/2" × 48" |
| Tabletop supports2x4 | 3 | 1 1/2" × 3 1/2" × 15" |
Buy 15 boards at 8 ft.
4 boards
5 boards
1 board
5 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build two frames, either with pocket holes or with 2-1/2" self-tapping star bit screws. Check each frame for square by measuring opposite diagonals and adjusting until they match.
Adding the shelf slats from a later step now can help keep the frames square while you work — a frame that racks before the legs go on stays racked.
Attach the legs from the inside with 2-1/2" screws — pocket-hole users can simply drive pocket screws here instead. Drive the screws at a slight angle rather than straight in; it makes for a noticeably better structural joint.
Measure and mark the placement of the 2x2 shelf supports and attach with 2-1/2" screws.
Prefinish the slat boards before cutting, so only the cut ends need touch-up after assembly. Lay the slats out with even gaps and nail and glue them to the frame boards. Other stock — 1x3, 1x2, even 1x6 or 1x8 — substitutes if you'd rather a different look.
Attach the tabletop support boards, which give the island lateral bracing and an attachment point for the tabletop. Attach from inside with pocket holes facing upward if you have a jig, otherwise screw from the outside.
For the cleanest result, join the tabletop boards into one panel with a pocket-hole jig first, then attach the whole top from underneath with 2-1/2" screws. Without a jig, attach the boards individually the same way, keeping them tight and even.
