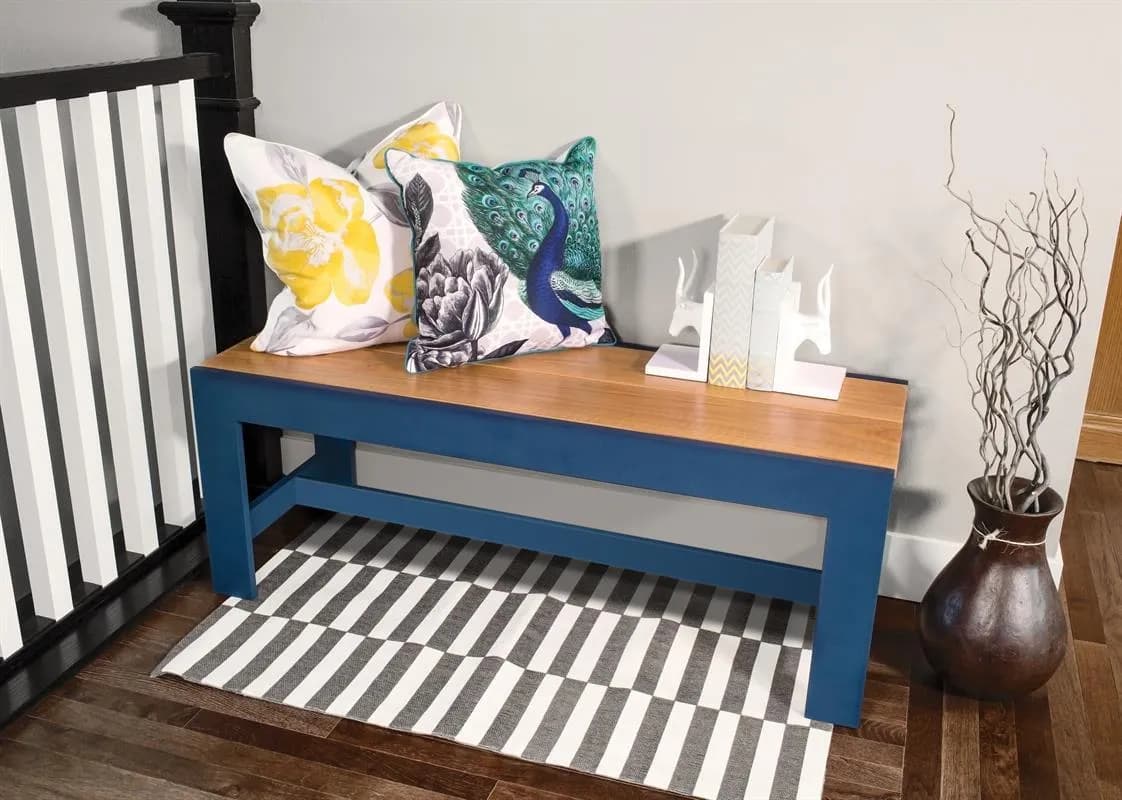

Easy, Elegant Bench – Metric

Instructions

1. 1Create the Legs and Side Rail

   Cut four Legs and two Side Rails to length from 19 x 89mm boards, as shown in the cutting diagram. Set your Kreg Jig for 19mm material, and then drill pocket holes in the ends of each of the Side Rails as shown.

2. 2Assemble the Side Frames

   Position two Legs against one Side Rail, as shown, and attach the Legs using 32mm fine-thread Kreg screws to create a leg frame. Repeat this to create the other leg frame.

3. 3Make the Bottom and Seat Rails

   • Cut four Seat Rails, as well as two Bottom Rails to length from a 19 x 63mm board, as shown in the cutting diagram.
   • Drill pocket screws into both ends of each Rail, and then set two aside. These will be Bottom Rails. In the remaining four rails, drill additional pocket screw holes along one edge, as shown. These will be Seat Rails.

4. 4Start Bench Assembly

   • With a leg frame lying flat on a work surface, position and install the two bottom rails using 32mm fine-thread Kreg screws.
   • Then position the Seat Rails, as shown. Make sure the pocket holes are oriented correctly for attaching the Seat Slats later.
   • Then attach the Seat Rails using 32mm coarse-thread Kreg screws.

5. 5Add the Other Side Frame

   Now position the assembly you just made on top of the second leg frame. Make sure everything is aligned, and then secure the assembly to the frame using 32mm fine-thread Kreg screws.

6. 6Add Support with a Stretcher

   Cut one Bottom Stretcher to length from a 19 x 63mm board, as shown in the cutting diagram. Then drill pocket holes in both ends of the Bottom Stretcher, as shown.

7. 7Install the Stretcher

   • Set the bench base assembly upright on your work surface.
   • Now position the Bottom Stretcher so it is centered on the length of the Bottom Rails. Secure the Stretcher using 32mm fine-thread Kreg screws. If you want to hide the pocket holes in the Bottom Stretcher and Bottom Rails, you can glue in pocket-hole plugs, and then sand them flush. The holes in the Seat Rails won’t show after the Seat Slats are installed.

8. 8Cut the Seat Slats

   Cut two seat slats to length from a 19 x 184mm board, as shown in the cutting diagram.

9. 9Finish, then Install the Seat Slats

   • Before you install the Seat Slats, it’s a good time to paint or finish the bench—especially if you plan to paint the base and clear-finish the slats, as we did.
   • Once the paint/finish has dried, you can position the Seat Slats, as shown, so that all the gaps are consistent (approximately 6mm wide).
   • Then attach the Slats to the bench base using 32mm fine-thread Kreg screws.
