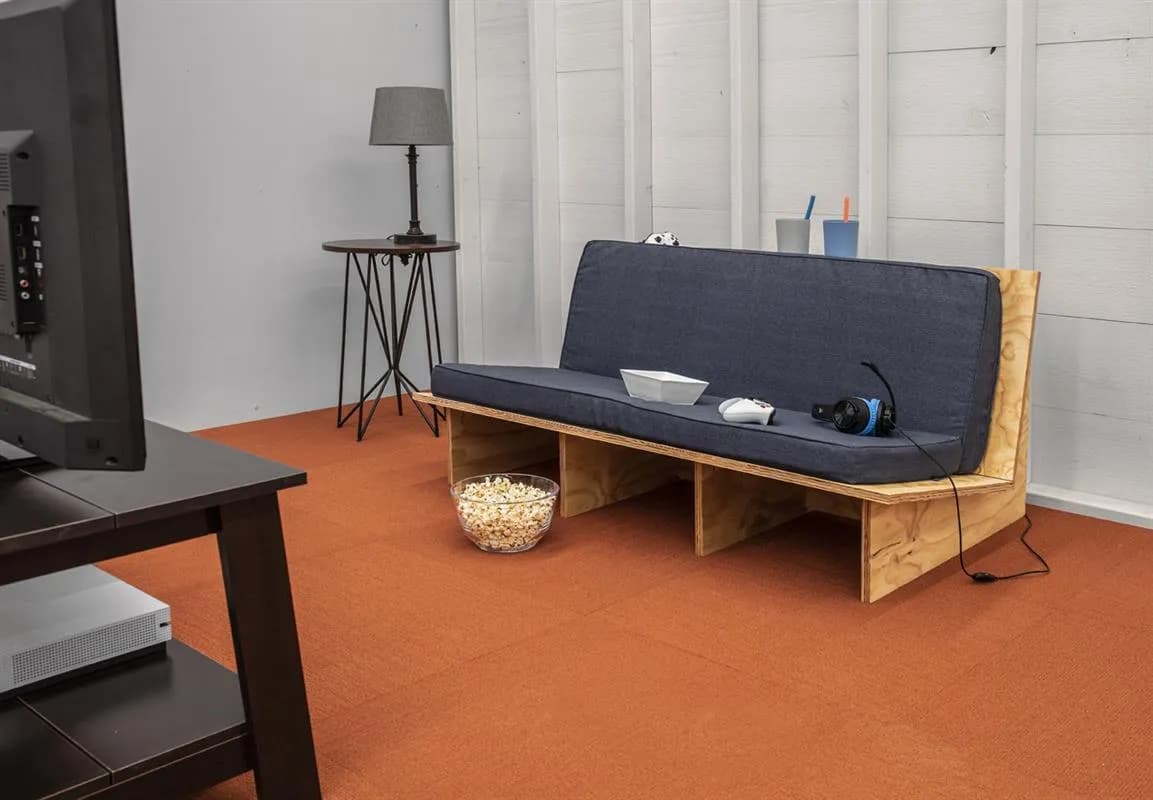

DIY Padded Sofa – Metric

Instructions

1. 1Make the Shelf and Braces

   • Start by ripping the one Shelf and three Braces from a sheet of 19mm thick sanded plywood, as shown in the cutting diagram. A saw guide makes it easy to make straight, accurate cuts. You can learn more in the How-To video below.
   • Next, cut each part to final length.
   • Set your Kreg Jig for 19mm thick material, and then drill pocket holes in the three Braces at the locations shown.
   • Sand the Braces and Shelf smooth, and set them aside for a later step.

2. 2Make the Supports

   • Use the dimensions shown to lay out the first Support where shown on the sheet of plywood.
   • Now cut this Support using a jigsaw. For best results, cut just on the “waste” side of your layout lines, rather than trying to stay on the lines exactly.
   • Then sand the edges up to the layout lines to get them flat and smooth. With the first Support done, use it as a pattern to trace out the remaining three Supports on the plywood, as shown. After you sand all the edges flat and smooth, drill pocket holes drill pocket holes on the four Supports at the locations shown. Note there are two “left” side and two “right” side Supports that mirror one another.
   • Sand the faces smooth.

3. 3Assemble the Supports and Braces

   • Start with two “left” Supports and one Brace.
   • Position the Brace where shown, making sure it sits straight and square, and then attach the Brace to the Supports using 32mm coarse-thread Kreg Screws.
   • Repeat the same process for the “right” Supports.

4. 4Add the Center Brace

   With the two side assemblies together, you can now add the center Brace to complete the base frame. Notice the center Brace is set 19mm farther toward the front of the sofa than the side Braces. This is to make sure the center Brace pocket hole screws are offset from the side Braces and don’t hit each other.

5. 5Attach the Seat

   • Cut a Seat to length and width, as shown in the cutting diagram.
   • Then sand the edges and faces smooth. To install the Seat, first lay the sofa base assembly on its back edges, as shown.
   • Position the Seat, making sure it overhangs each outside Support edge equally, and clamp the Seat in place. Secure the Seat to the Supports using 32mm-thread Kreg Screws.

6. 6Attach the Seat Back

   • Now cut a Seat Back to length and width, as shown in the cutting diagram, and sand it smooth.
   • Set the Sofa upright again and place the Seat Back in position so the edges are flush with the Seat edges.
   • Clamp the Seat Back in place, and then secure it using 32mm coarse-thread Kreg Screws.

7. 7Add the Shelf

   Finally, place the Shelf on top of the Supports as shown, making sure it overhangs equally on each end. Secure the Shelf to the Supports using 32mm coarse-thread Kreg Screws.

8. 8Apply the Final Finish

   • Do any touch-up sanding that’s needed, and then soften the exposed corner surfaces of the seat and seat back by sanding them. Brush or vacuum the sawdust from the sofa.
   • Then you can apply the finish. We chose to just wipe on a natural oil finish. Of course, you could paint the sofa, too.
   • Once the paint or finish dries, you can throw on the cushions, and relax in comfort on your new sofa.
