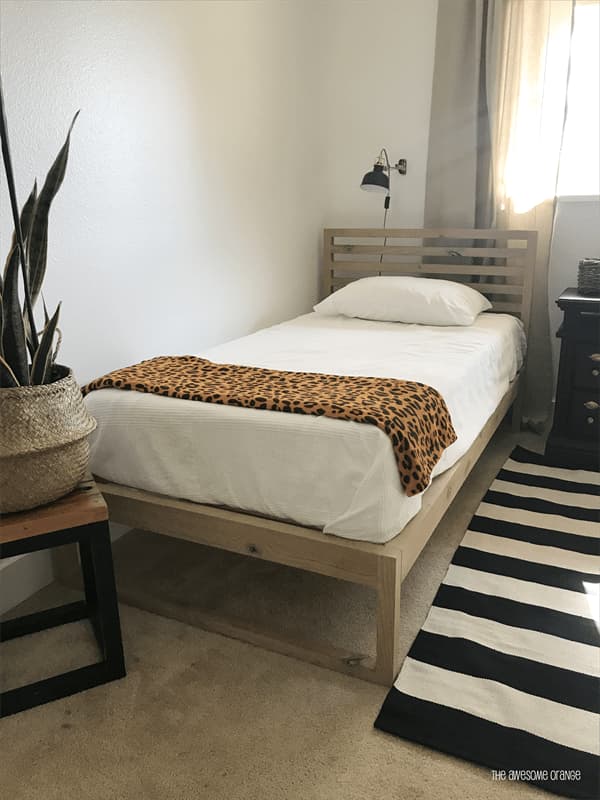

This easy-to-make diy modern twin bed plan will bring some awesome style to your guest bedroom or kids bedroom.
| Item | Qty |
|---|---|
| Board, 2x4 96" | 3 board |
| Board, 2x2 96" | 7 board |
| Bed Slat, 1x4 39" | 16 board |
| 2 1/2" Kreg Pocket Hole Screws | 36 each |
| 2" Spax Wood Screws | 14 each |
| Set of 4 - No Mortise Bed Frame Brackets | 1 each |
| 1 1/4" Spax Wood Screws | 32 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.

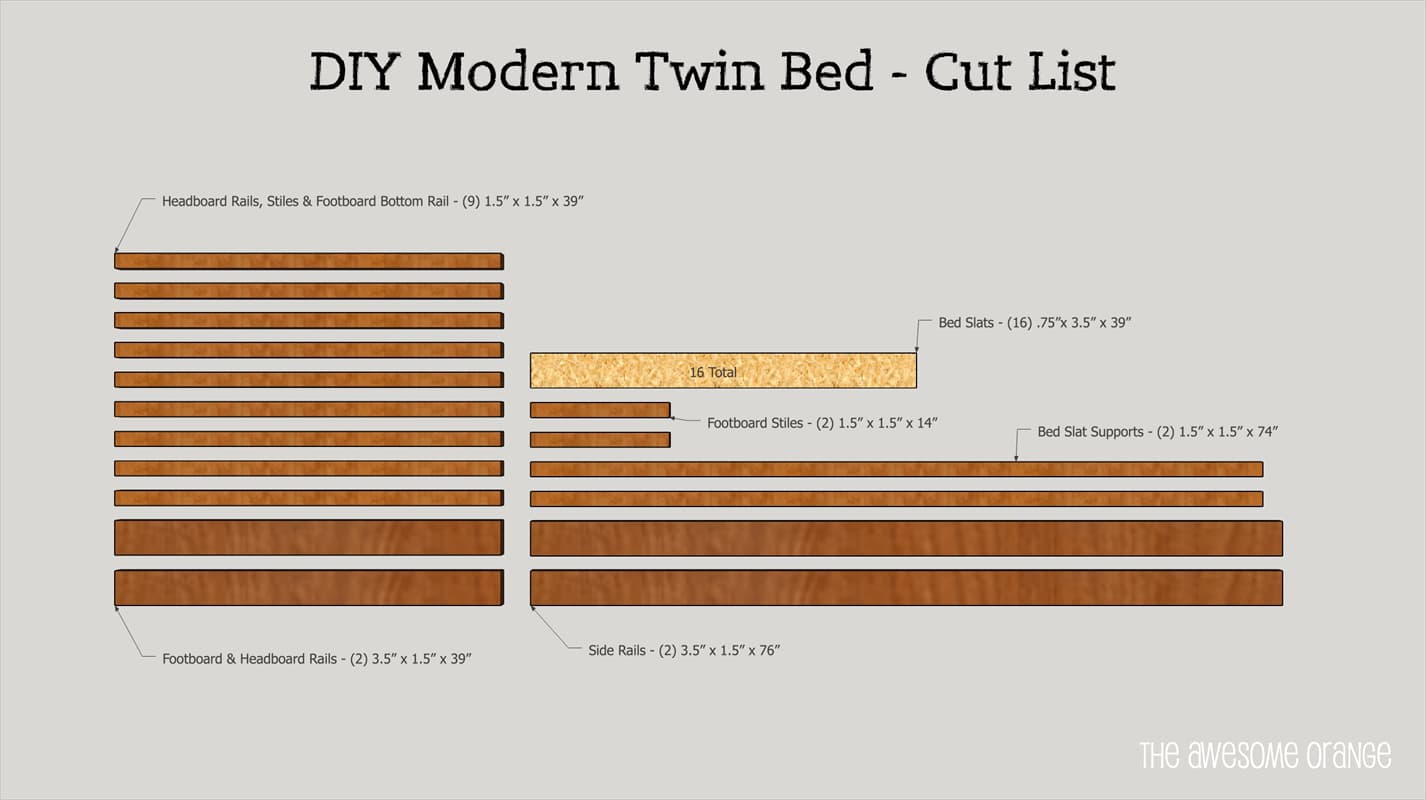

| Part | Qty | T × W × L |
|---|---|---|
| Headboard Rail, Stiles & Footboard Bottom Stile | 9 | 1 1/2" × 1 1/2" × 39" |
| Headboard & Footboard Rails | 2 | 1 1/2" × 3 1/2" × 39" |
| Footboard Stiles | 2 | 1 1/2" × 1 1/2" × 14" |
| Bed Slat Supports | 2 | 1 1/2" × 1 1/2" × 74" |
| Side Rails | 2 | 1 1/2" × 3 1/2" × 76" |
Buy 10 boards at 8 ft.
3 boards
7 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Cut all pieces to final lengths. I recommend using a stop block on your miter saw to create easy and accurate repeatable cuts.

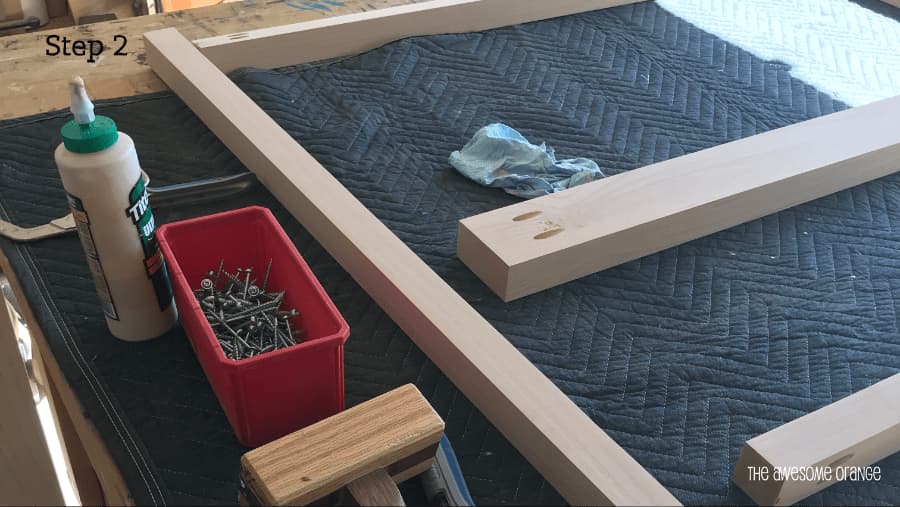

Drill two (2) 2 1/2" pocket holes on (7 of the 9) 39" L 2x2 boards & the two (2) 39"L 2x4 boards using your Kreg pocket hole jig.

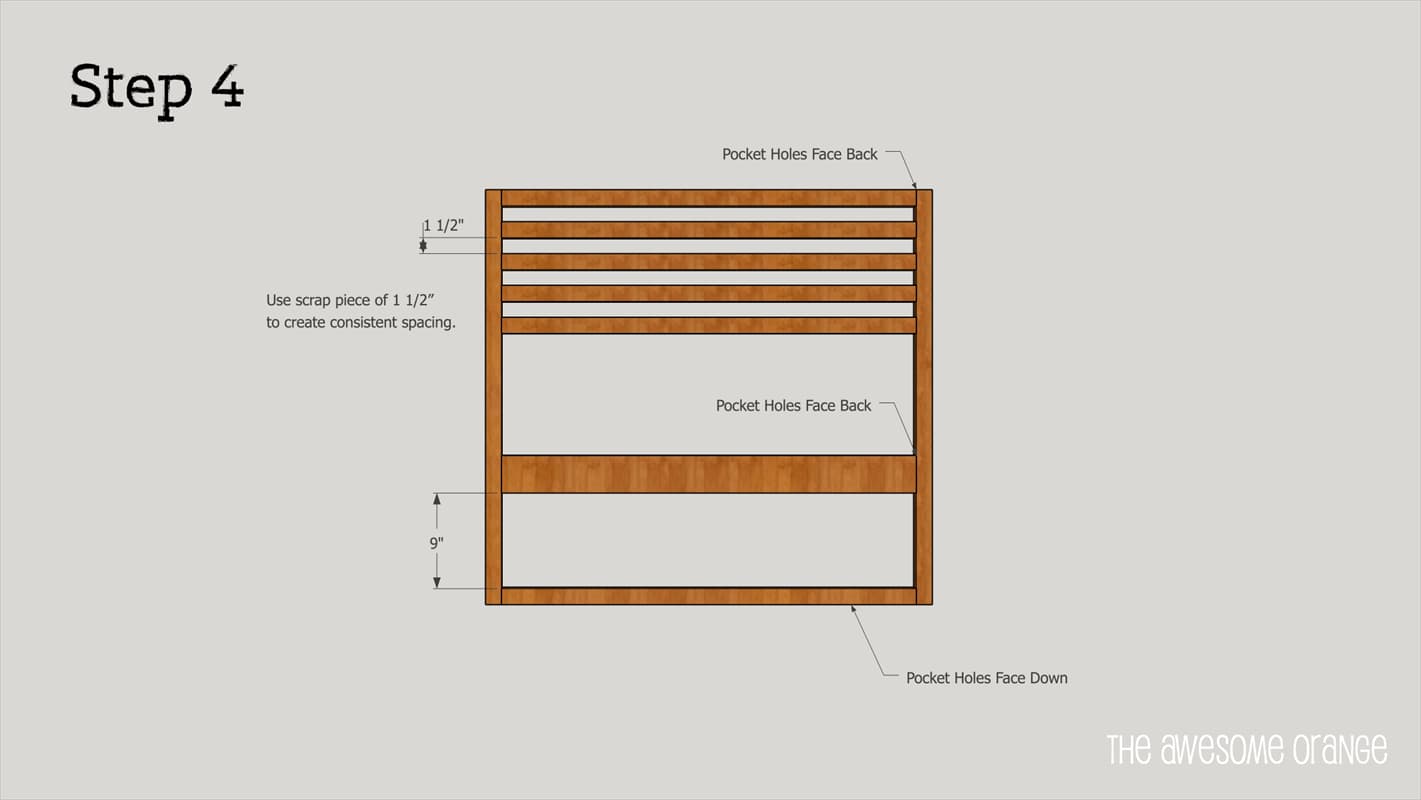

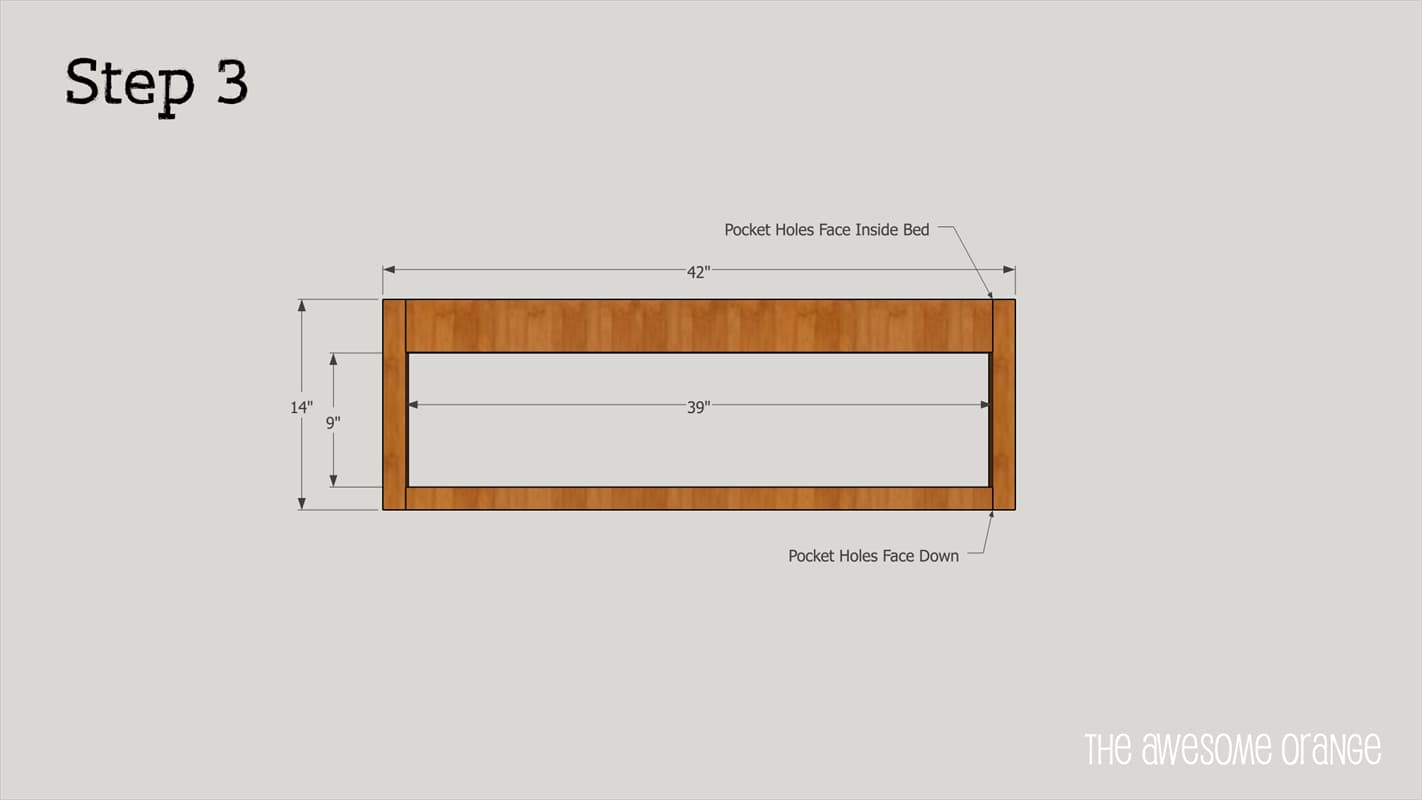

Assemble footboard. Pocket holes on the bottom 2x2 should be facing down and pocket holes on the 2x4 should be facing inside the bed frame to keep holes hidden.

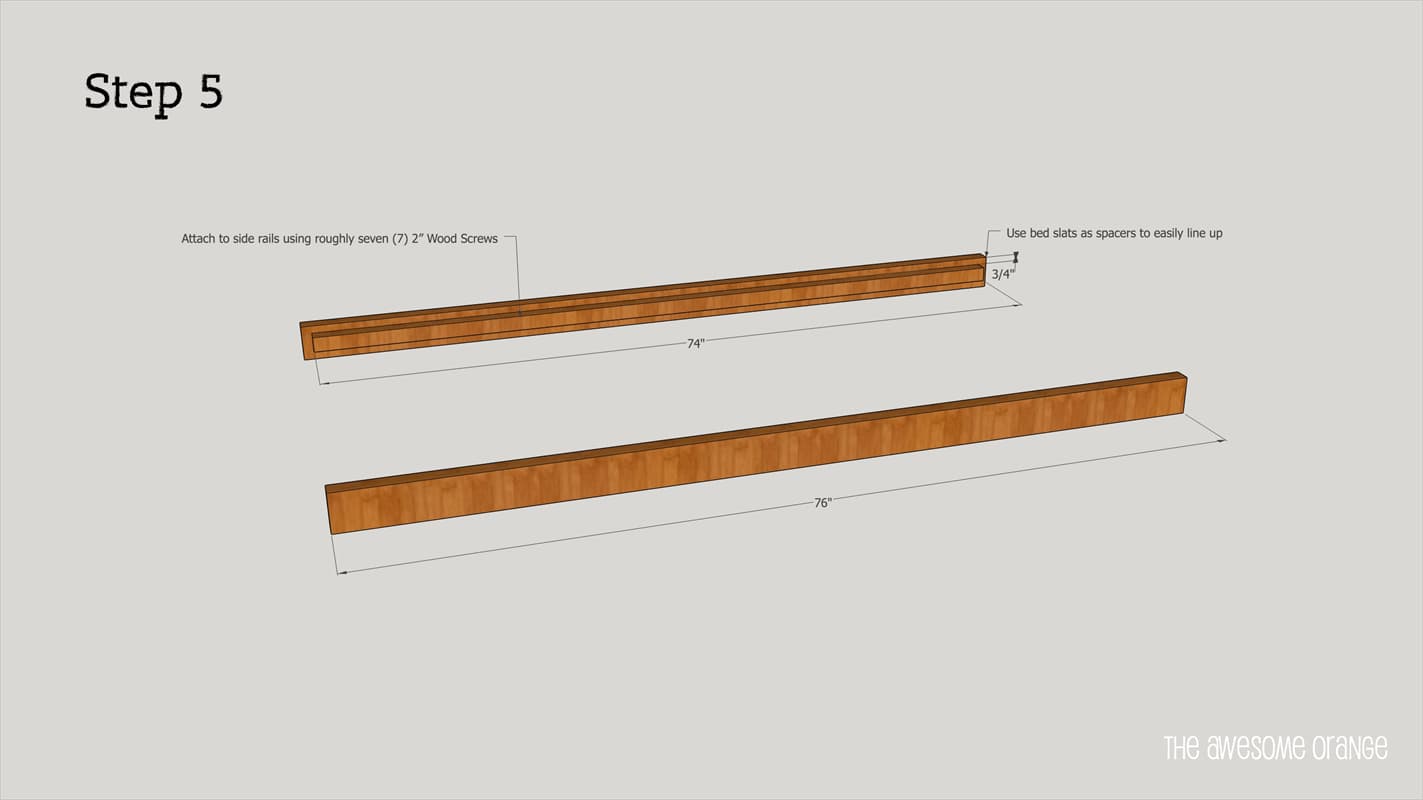

Attach slat supports to side rails using the 2" spax screws. I used a couple of bed slats to create the correct amount of spacing from the top.

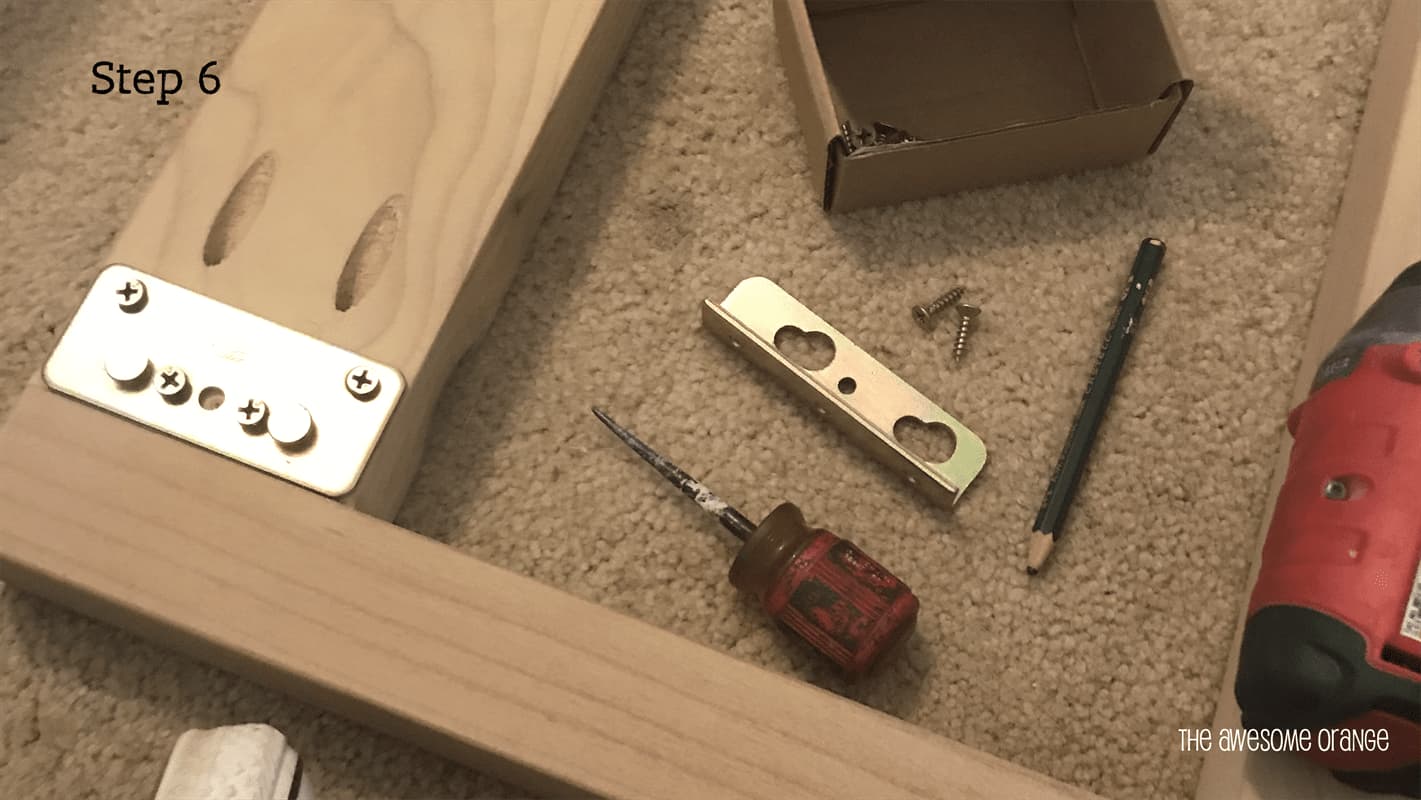

Hardware has a left and right side, so be sure to install proper bracket on each side using screws provided. Link to brackets I used in the Extras tab.

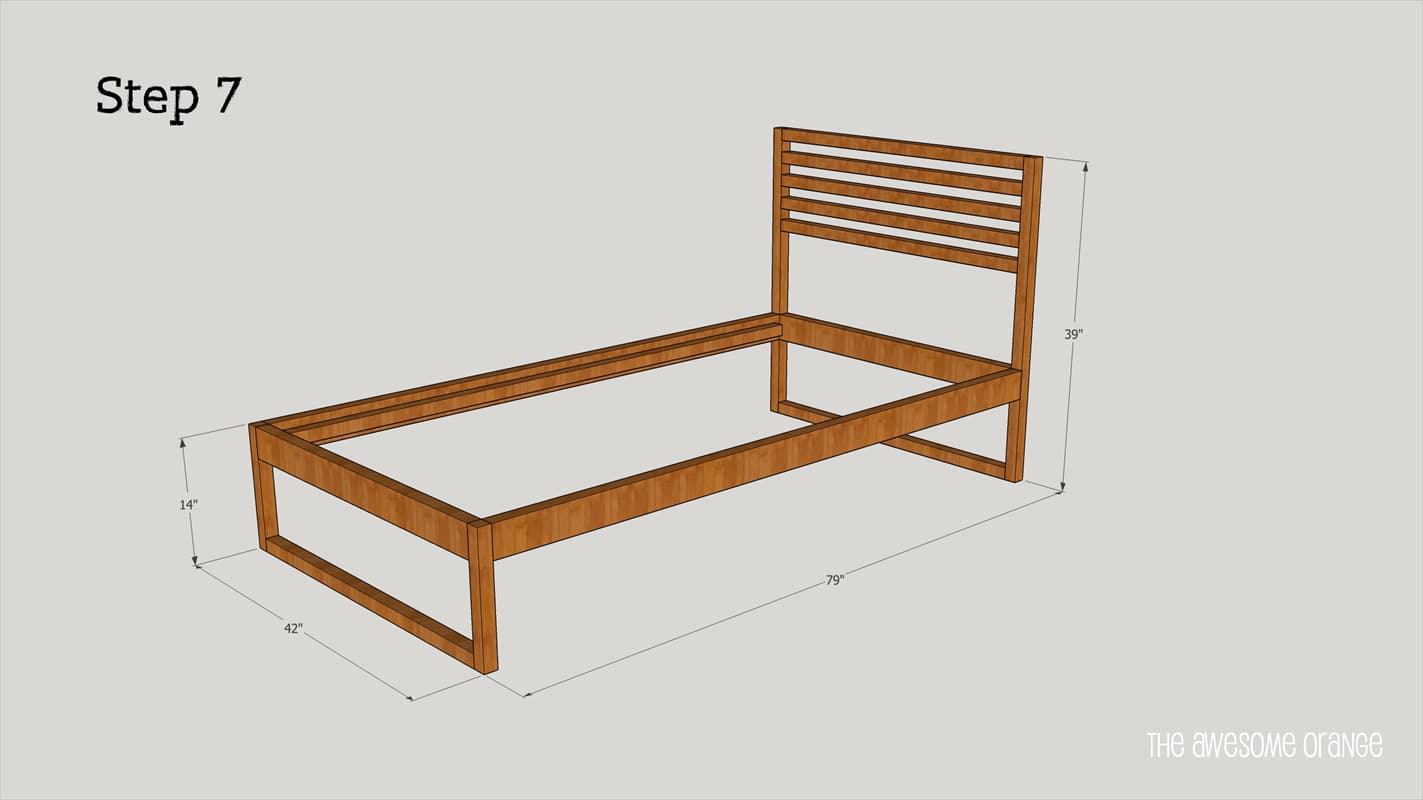

Attach rails to headboard and then attach to footboard.

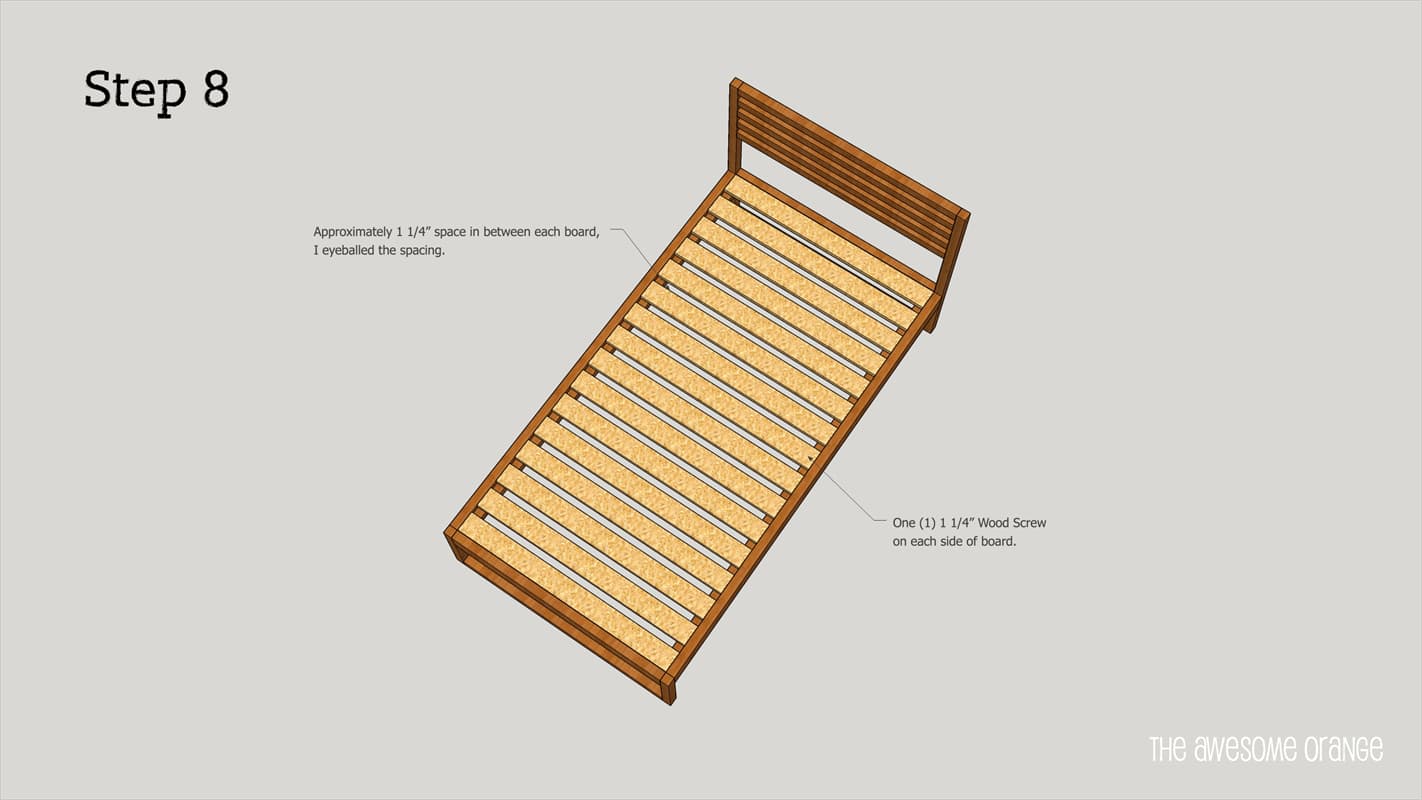

Lay out bed slats evenly and attach to slat support using 1 1/4" spax wood screws.
Visit my website www.theAwesomeOrange.com to get more details and photos of this build and other awesome DIY projects!
