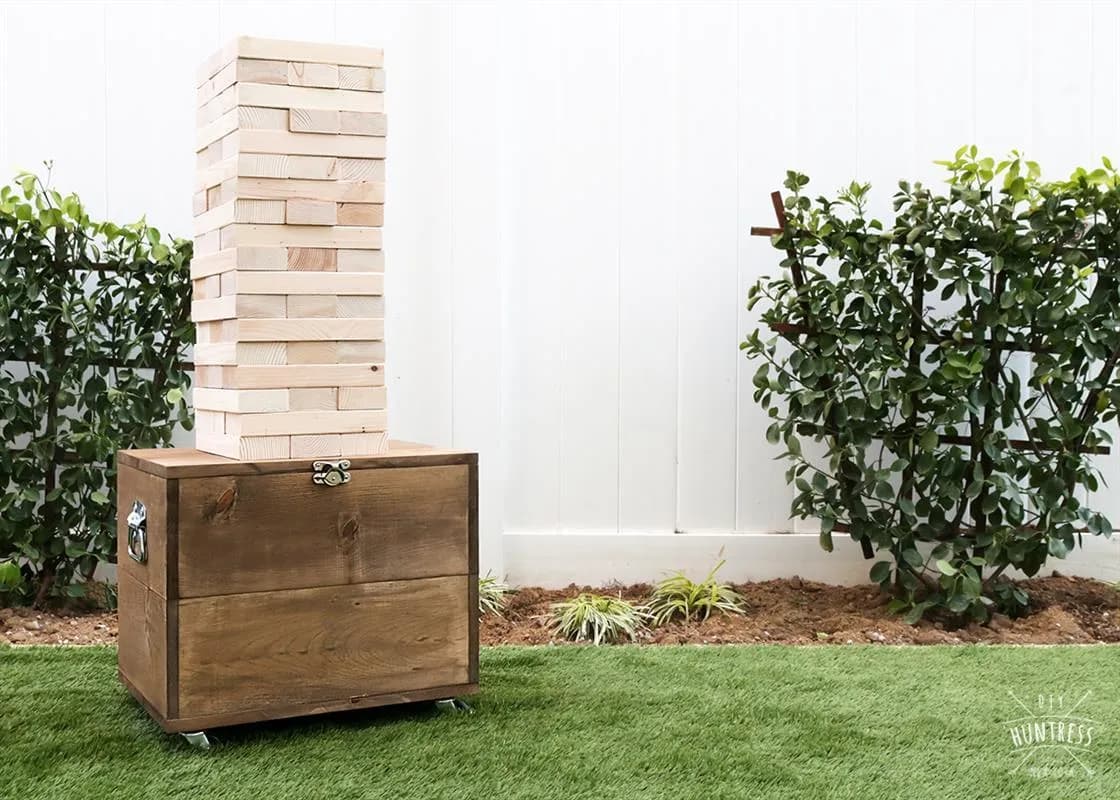

Learn how to make a fun Giant Yard Jenga set with a mobile carrying case with locking casters that doubles as a platform to play your game!
| Item | Qty |
|---|---|
| Board, 2x4 96" | 6 board |
| Board, 1x8 72" | 3 board |
| 1 1/4" Kreg Screws | 50 each |
| Hinges | 2 each |
| Lock | 1 each |
| 2" Casters | 4 each |
| Qt. Wood Stain | 1 each |
| Bottle of Wood Glue | 1 each |
| 1 1/4" Wood Screws | 10 each |
| Handles/Pulls | 2 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Jenga Pieces | 54 | 2" × 4" × 10" |
| Top Panel Pieces | 2 | 1" × 8" × 21" |
| Bottom Panel Pieces | 2 | 1" × 8" × 21" |
| Short Side Pieces | 4 | 1" × 8" × 14" |
| Long Side Pieces | 4 | 1" × 8" × 20" |
Buy 9 boards at 8 ft.
6 boards
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

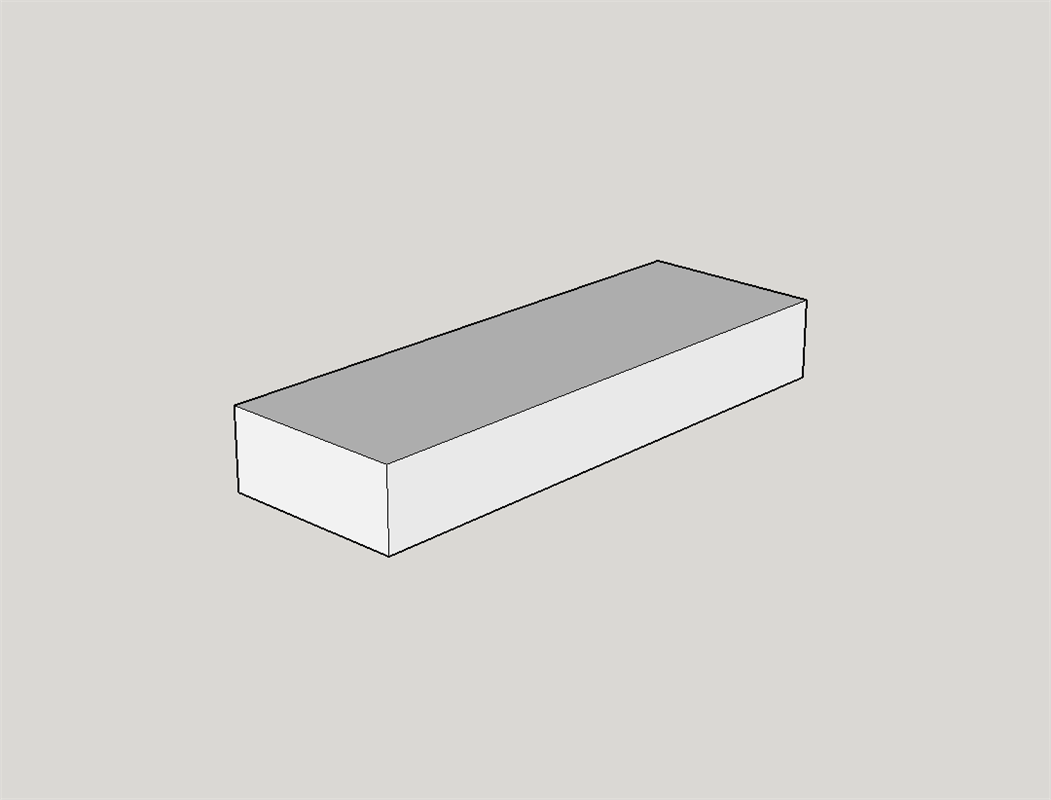

Create your giant Jenga pieces by cutting your six 2x4's into 54 pieces. Each piece will be 10 1/2" long.

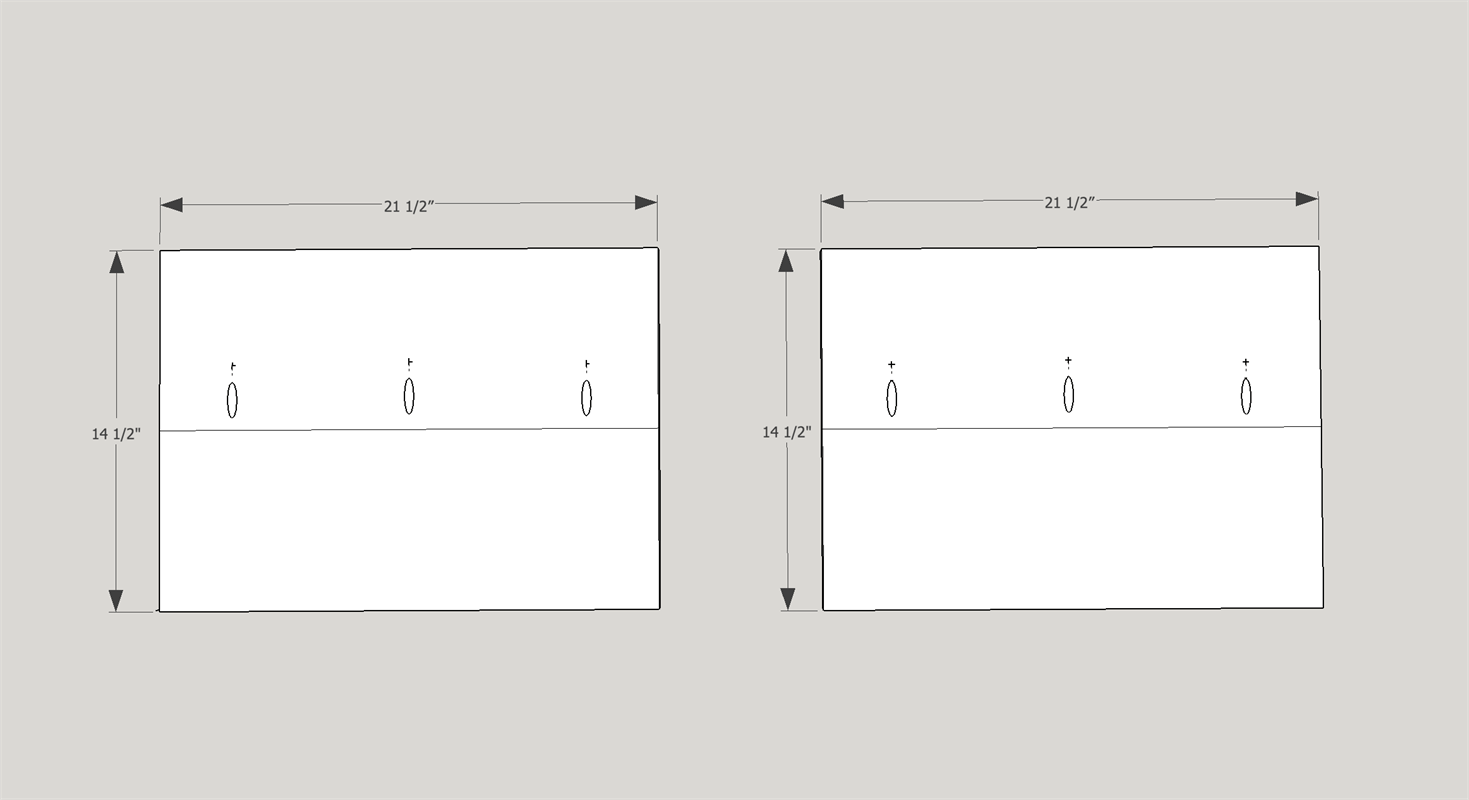

Assemble your 21 1/2" long top and bottom panels with 1 1/4" pocket hole screws and wood glue.

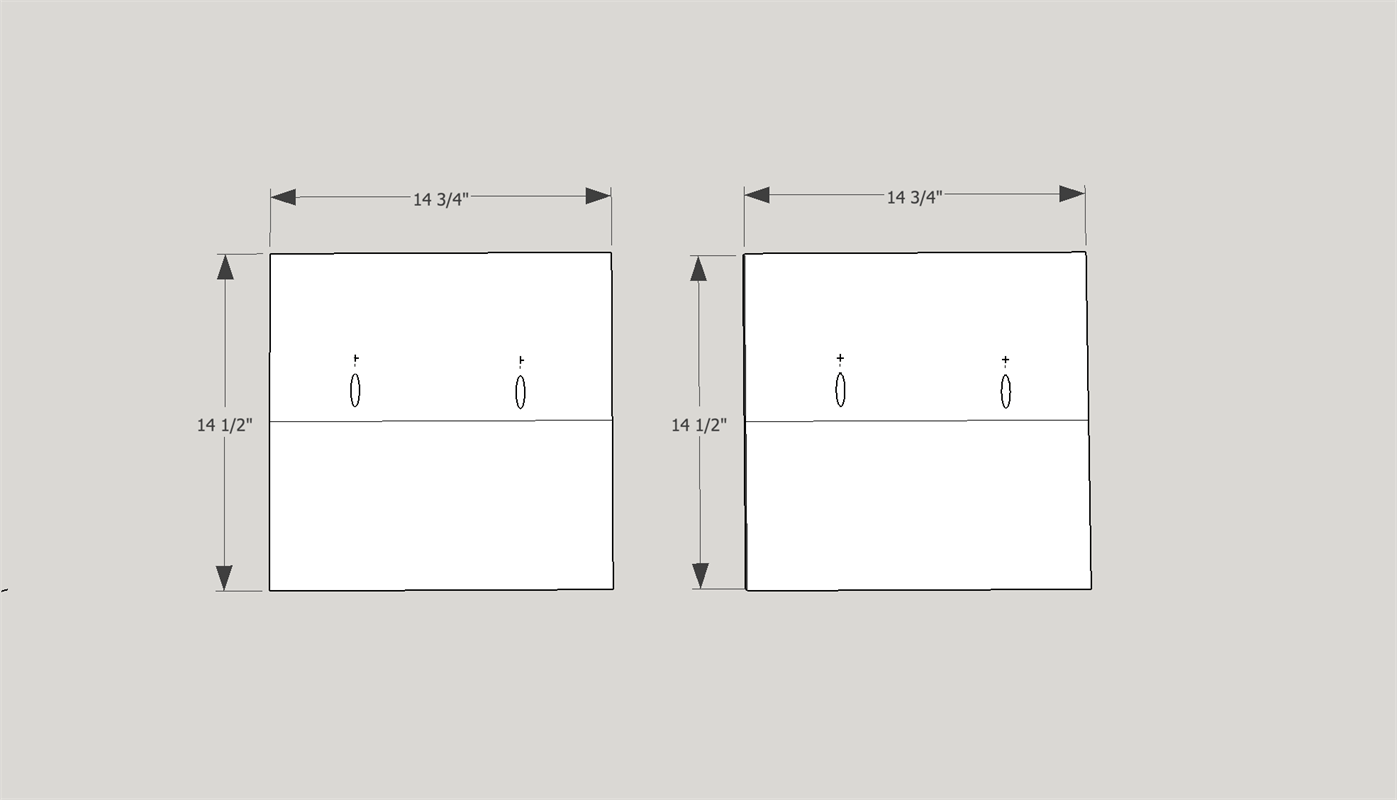

Assemble two 14 3/4" short side panels for your box with 1 1/4" pocket hole screws and wood glue.

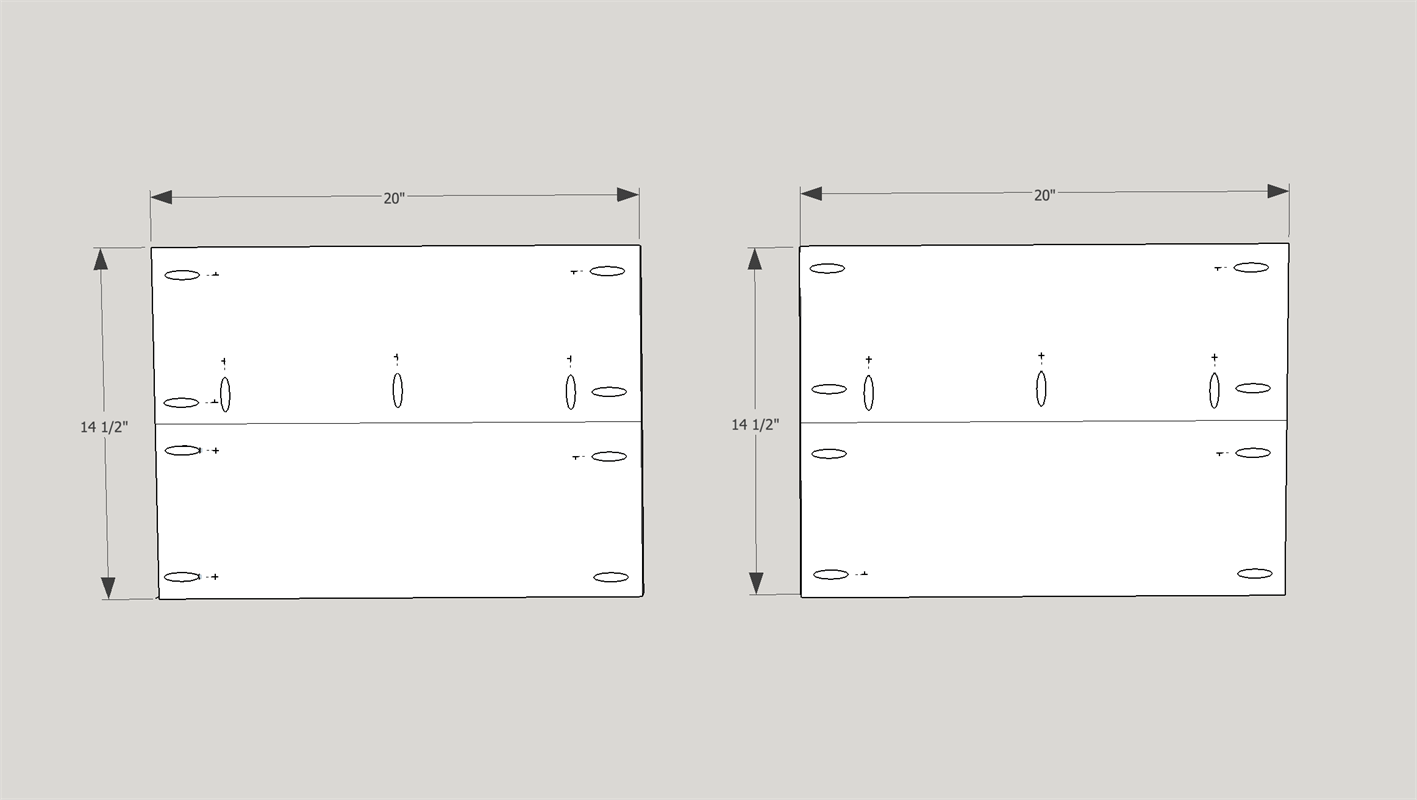

Assemble the two 20" long side panels of the box with 1 1/4" wood screws and glue. You will also need to drill pocket holes on both ends of the panels to attach them to the small side panels.

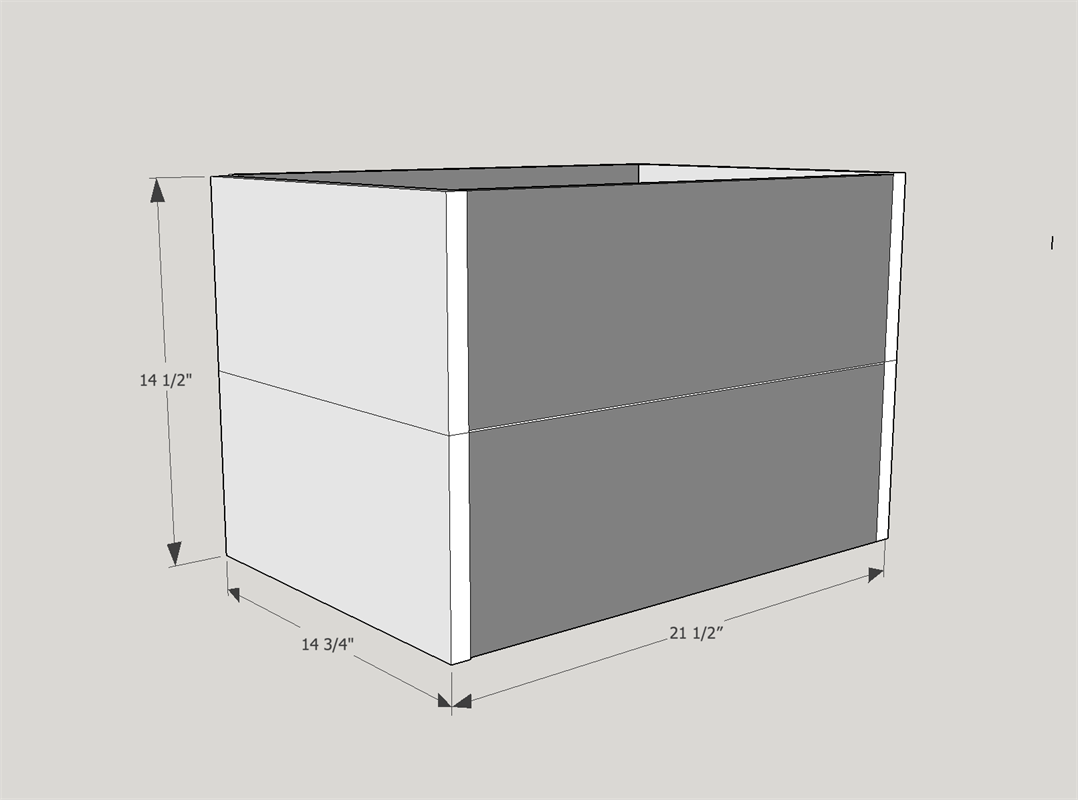

Assemble your box frame by attaching the long side panels to the inside face of the short panels with 1 1/4" pocket hole screws & glue.

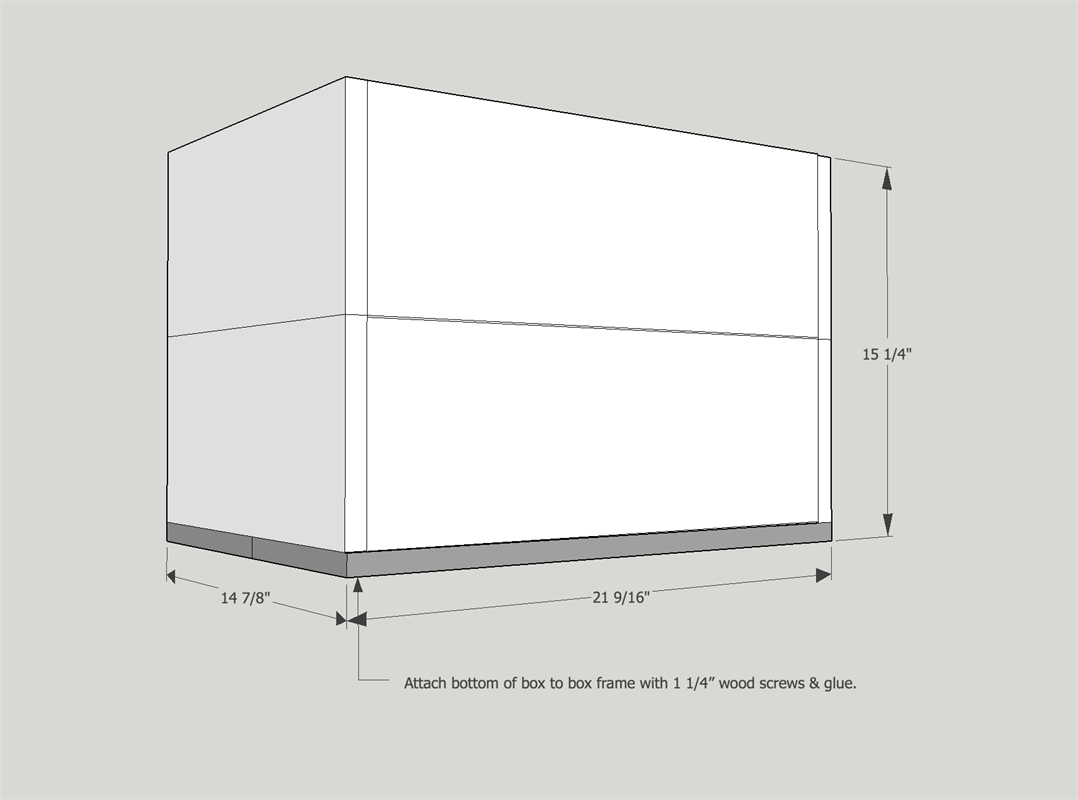

Add the bottom panel to the box frame with wood glue and 1 1/4" wood screws.

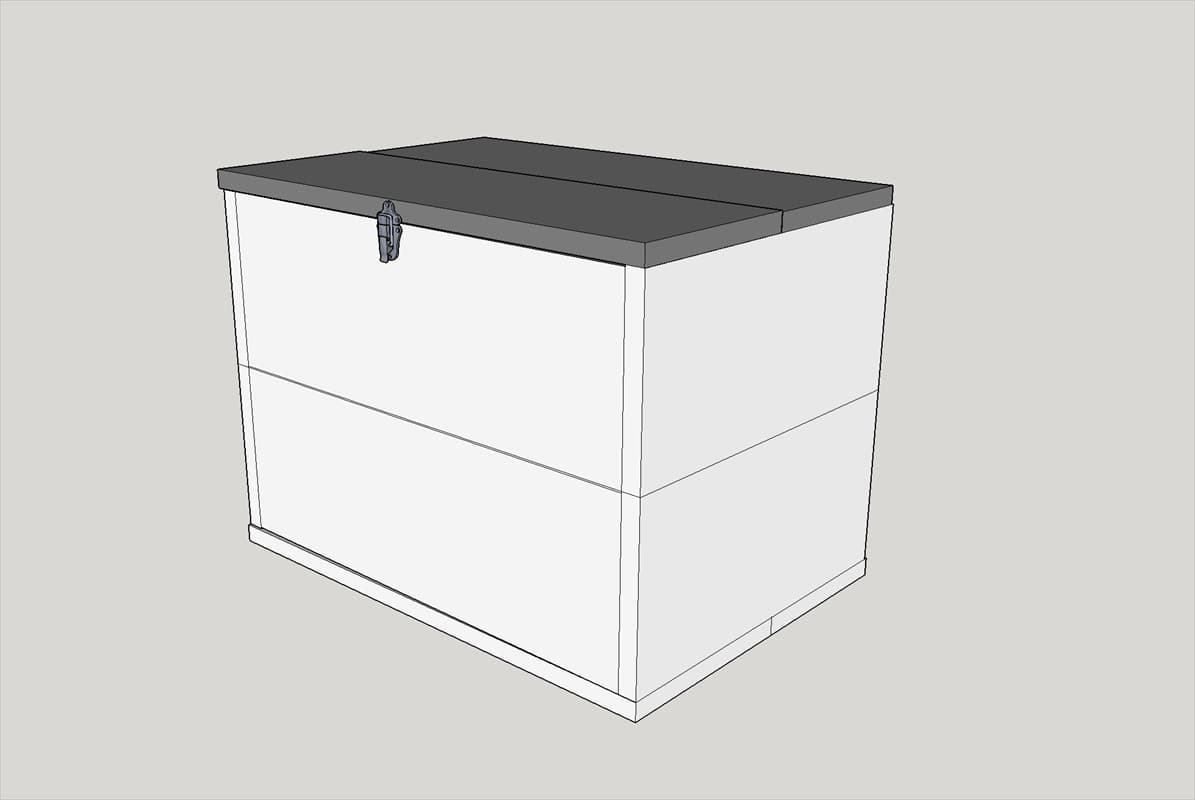

Attach top panel with two hinges and lock/latch.

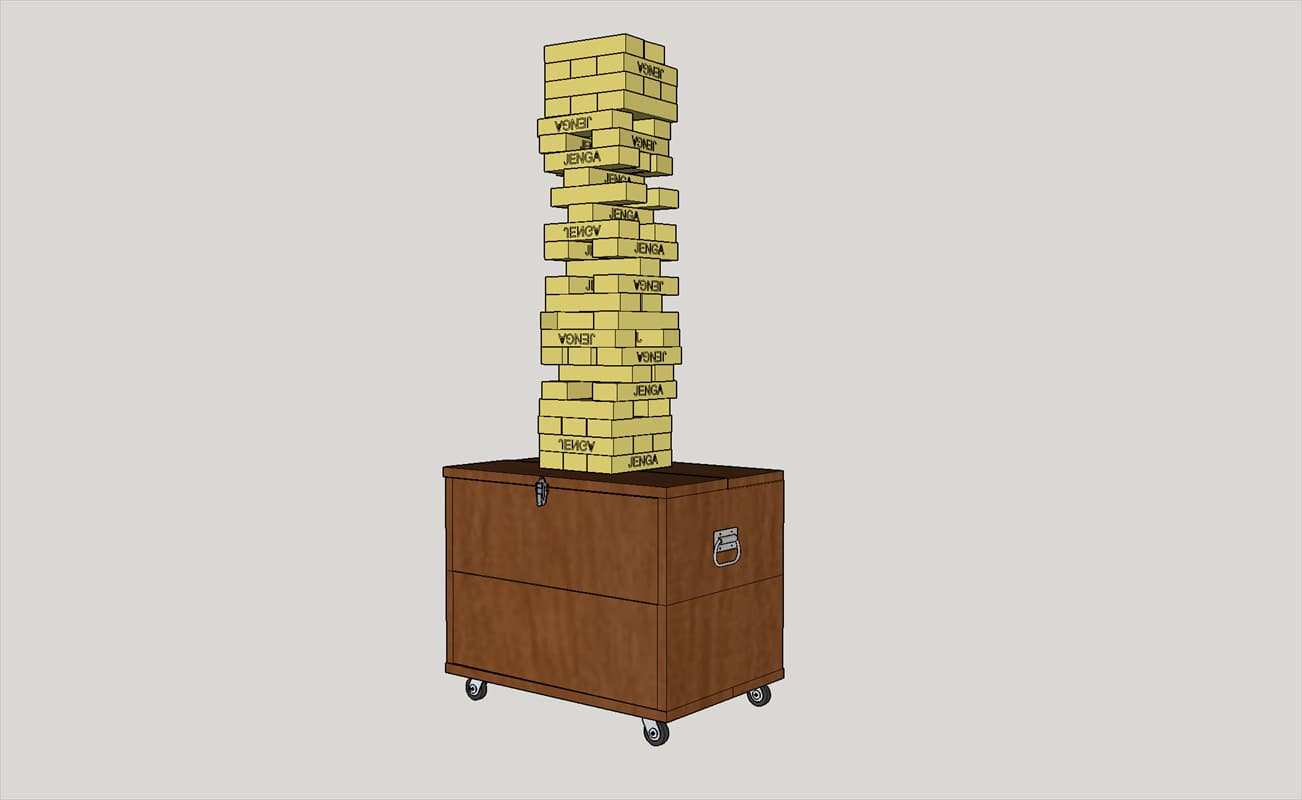

Sand and stain box. Add handles and locking casters for easier transportation!
