Notch- Difficulty
- Intermediate
- Time
- 4.5–8.8 hours
- Cost
- $$$
About this build

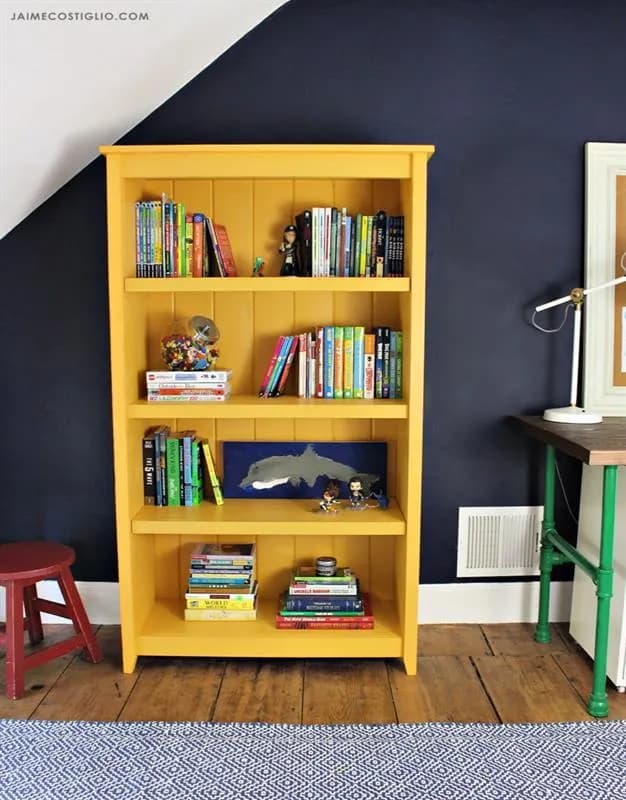

A classic cottage style bookshelf complete with tongue and groove backing. I designed this simple bookshelf with clean, easy lines and a nod to the cottage aesthetic. It’s plenty deep shelf space at over 12 inches can hold almost any size book. Tons of storage and two adjustable shelves.
Tools
Essential
- Circular Saw
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Table Saw
Optional / nice to have
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Plywood, 3/4" Thick Full Sheet | 1 board |
| Plywood, 3/4" Thick Half Sheet | 1 board |
| Board, 2x2 72" | 4 board |
| Board, 1x2 96" | 1 board |
| Board, 1x3 72" | 2 board |
| Tongue & groove, 1x6 96" | 6 board |
| 1 1/4" pocket hole screws | 50 each |
| 2" wood screws | 4 each |
| 1 1/4" wood screws | 24 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Legs | 4 | 1 1/2" × 1 1/2" × 4" |
| Side trim | 4 | 3/4" × 2 1/2" × 12" |
| Side panels | 2 | 3/4" × 12" × 56" |
| Shelves | 2 | 3/4" × 12" × 31" |
| Top (carcass) | 1 | 3/4" × 12" × 33" |
| Shelf trim | 2 | 3/4" × 2 1/2" × 2" |
| Shelf trim | 1 | 3/4" × 2 1/2" × 2" |
| Shelves (movable) | 2 | 3/4" × 12" × 31" |
| Shelf trim (movable) | 2 | 3/4" × 1 1/2" × 4" |
| Top | 1 | 3/4" × 15" × 36" |
| Backing (tongue & groove) | 6 | 3/4" × 5 1/2" × 4" |
What to buy
Buy 8 boards at 8 ft.
1 1/2" × 1 1/2"
1 board
3/4" × 15"
1 board
3/4" × 12"
3 boards
3/4" × 5 1/2"
1 board
3/4" × 2 1/2"
1 board
3/4" × 1 1/2"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

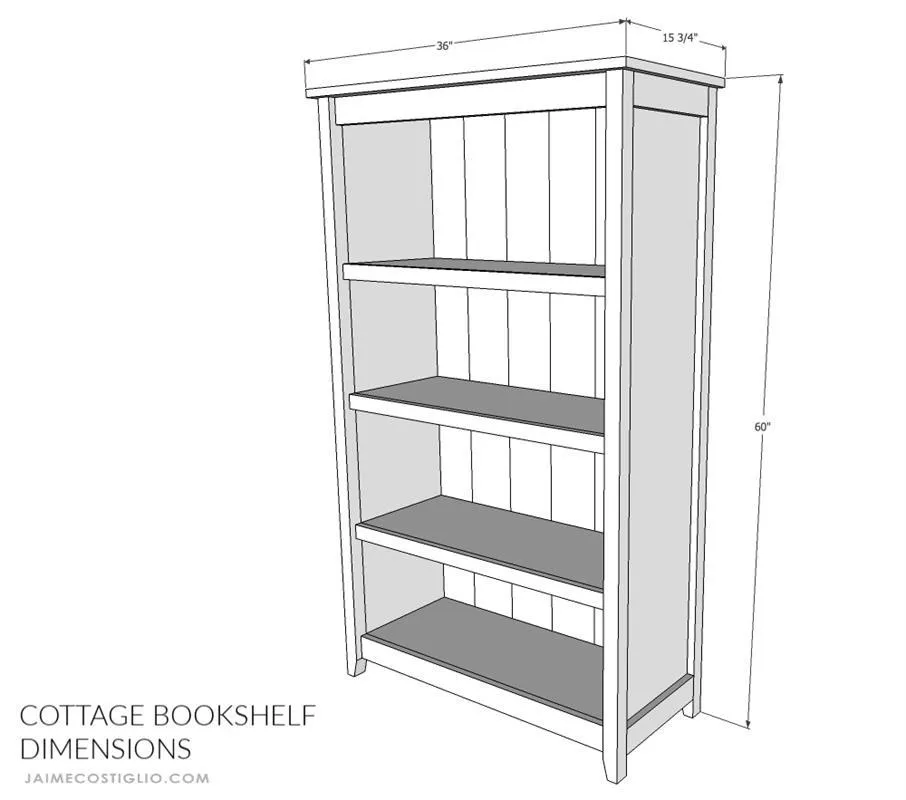

1Dimensions
Overall dimensions: 60"h x 36"w x 15 3/4"d

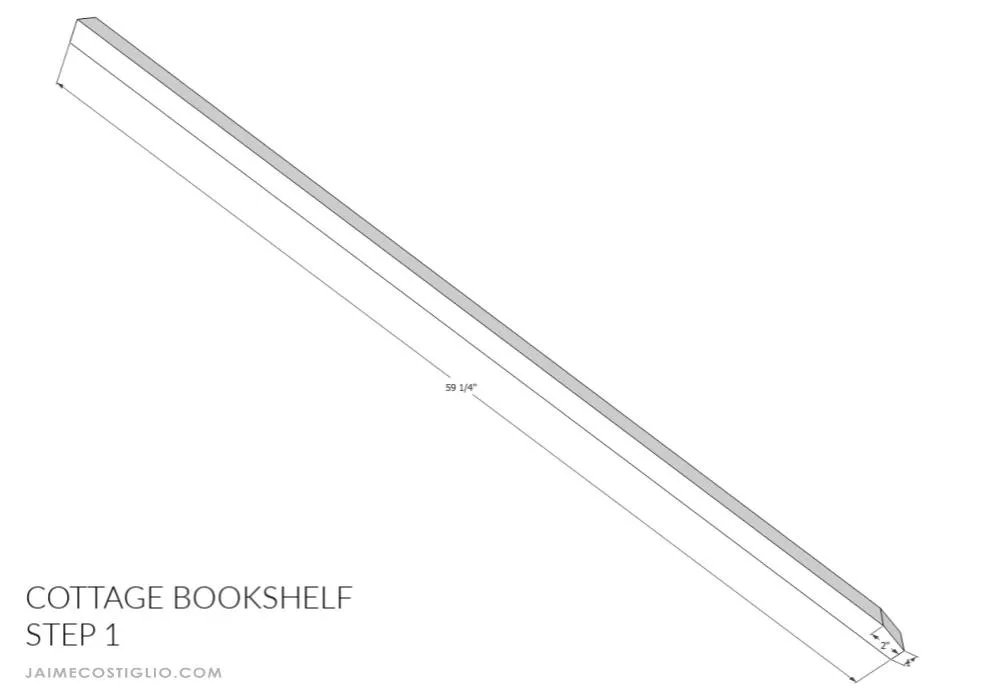

2Step 1
Create the tapered end on each leg using a jigsaw or table saw.

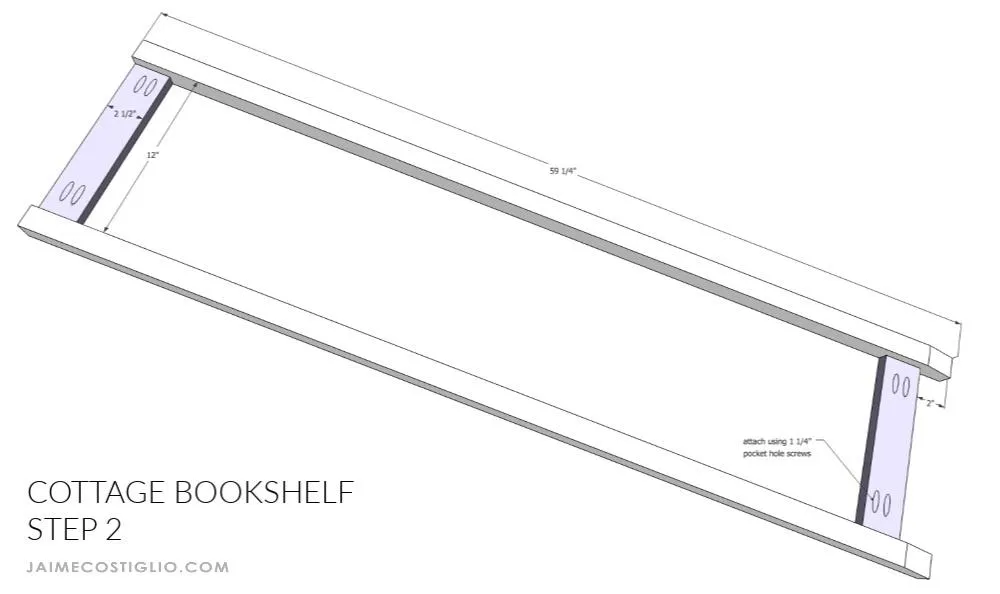

3Step 2
Attach the side panel cross supports using pocket holes and 1 1/4" pocket hole screws. Make 2.

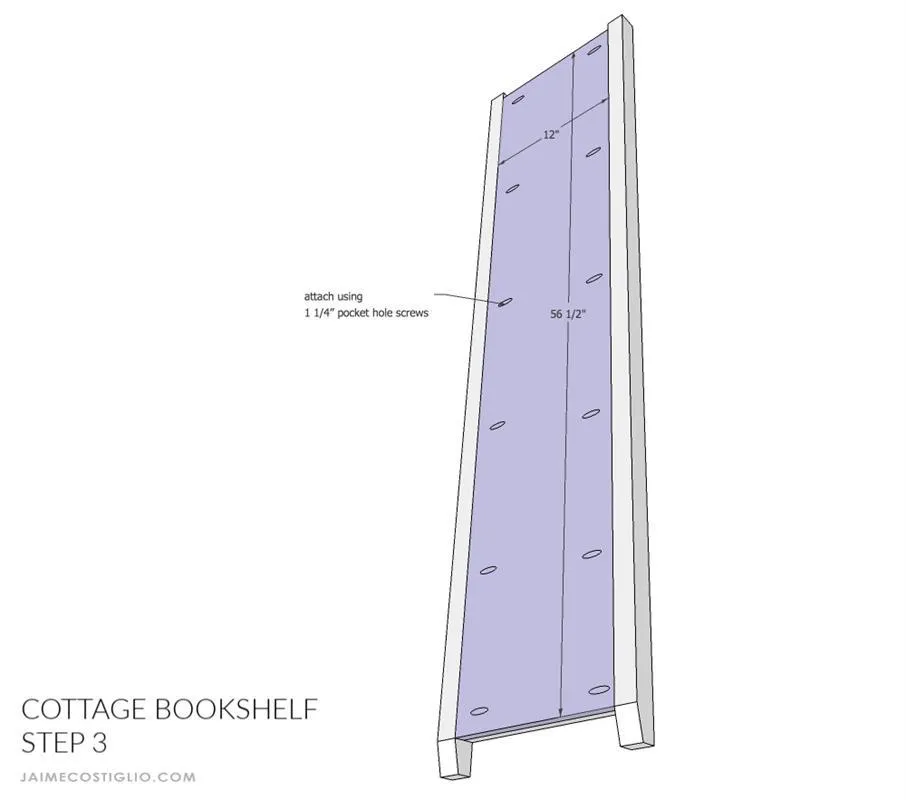

4Step 3
Attach the side panel into the frame using 1 1/4" pocket hole screws. Make 2.

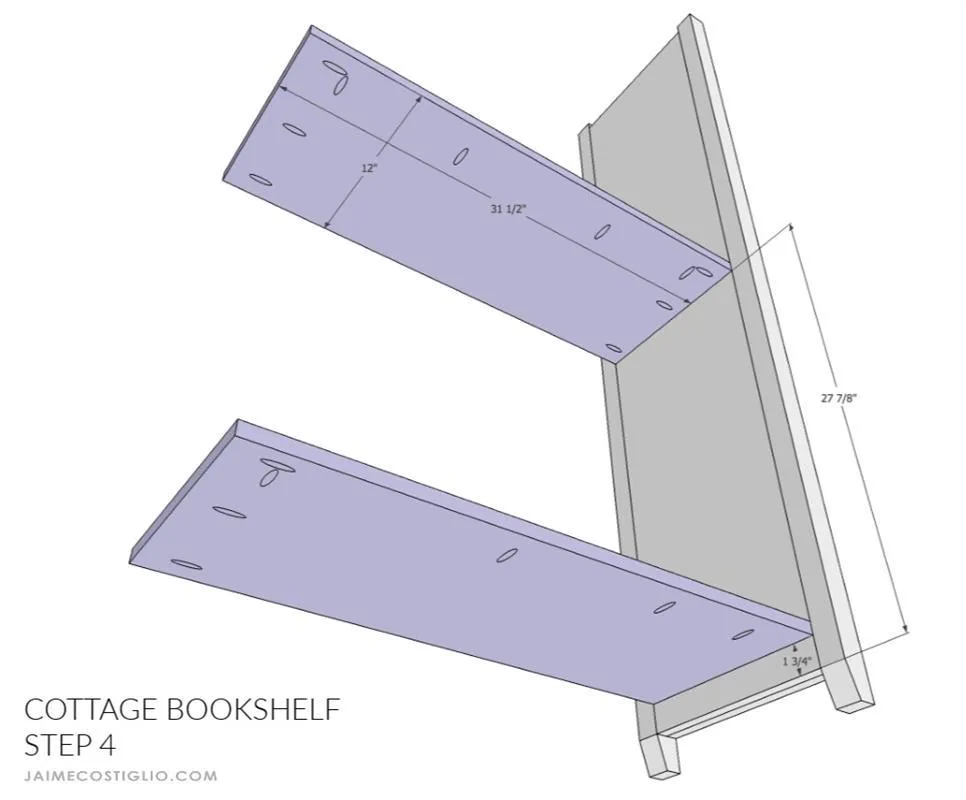

5Step 4
Attach fixed shelves to side panel using 1 1/4" pocket hole screws.

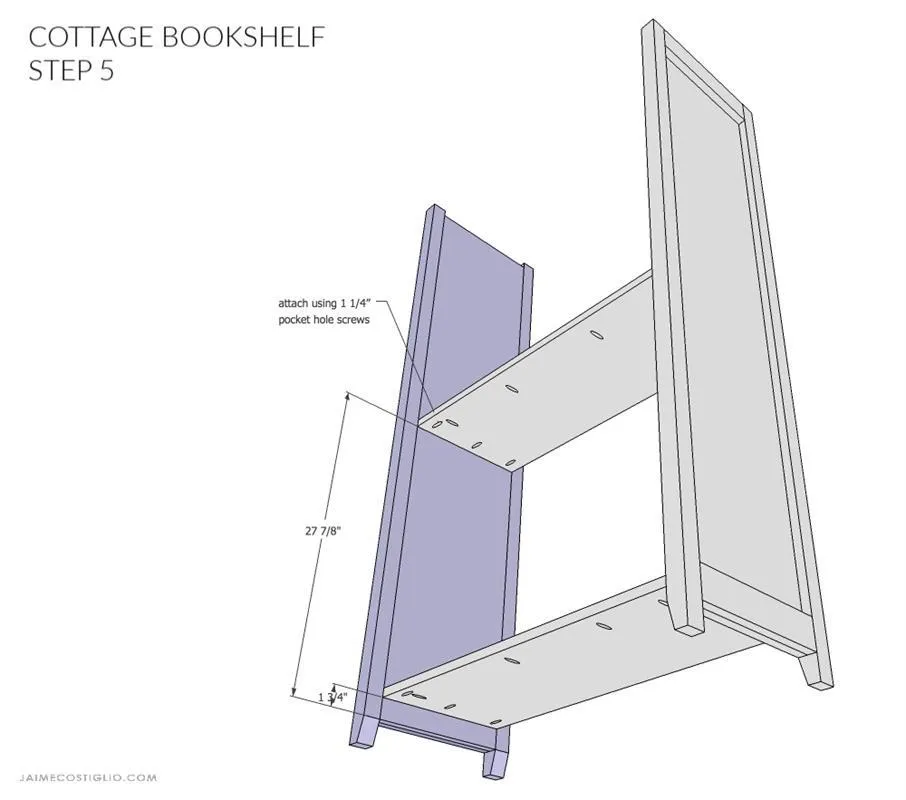

6Step 5
Attach second side panel to other end of fixed shelves using 1 1/4" pocket hole screws.

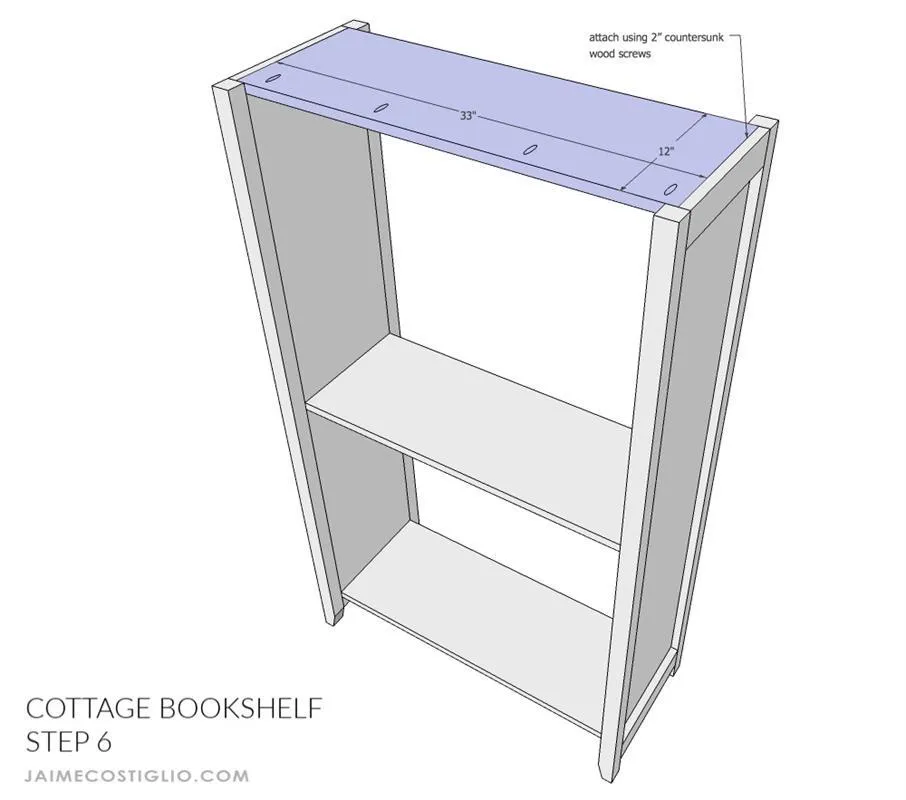

7Step 6
Attach carcass top to side panels using countersunk 2" wood screws.

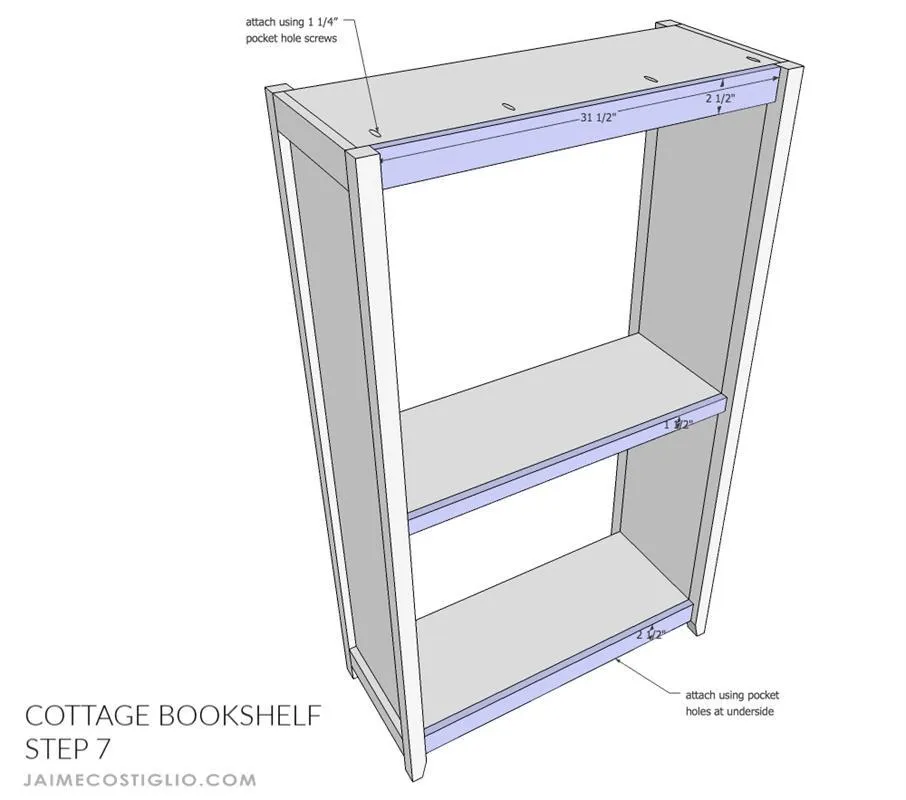

8Step 7
Attach front trim to shelves using 1 1/4" pocket hole screws.

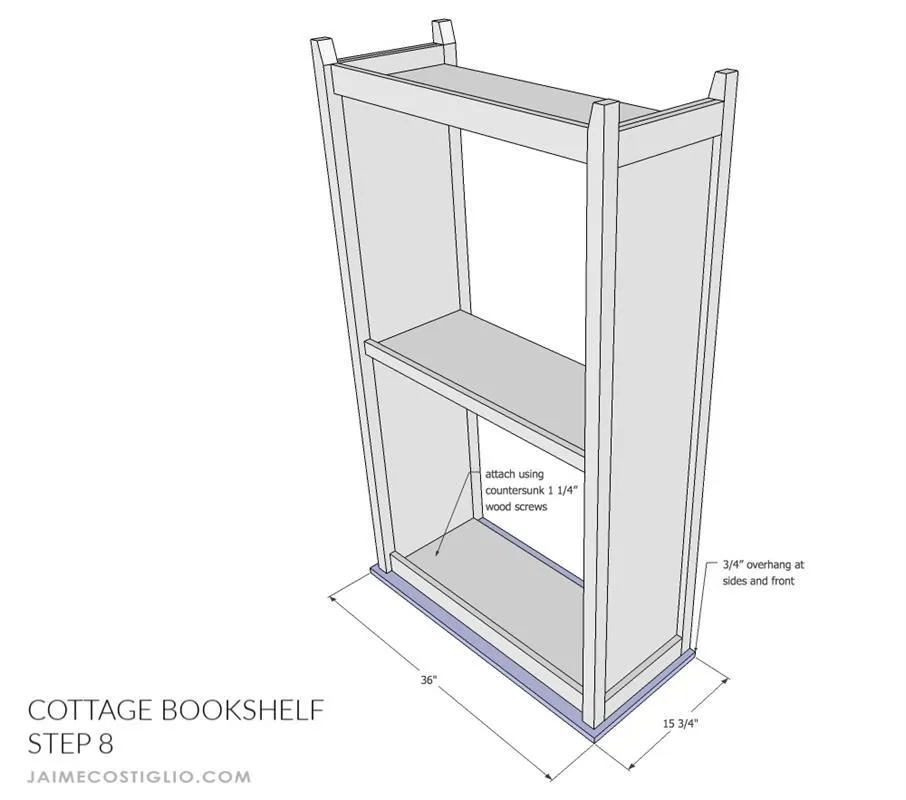

9Step 8
Attach top to carcass using countersunk 1 1/4" wood screws.

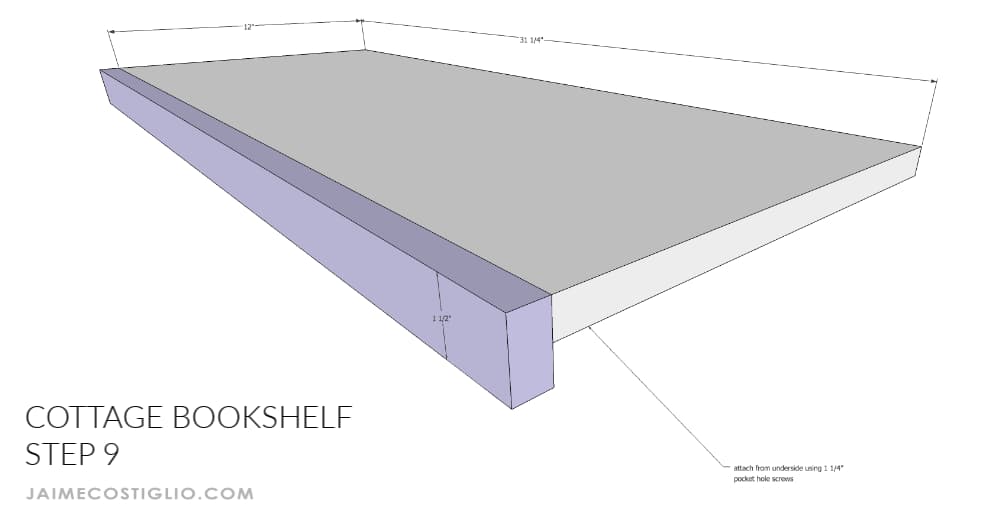

10Step 9
Make two movable shelves. Attach front trim to shelf using 1 1/4" pocket hole screws.

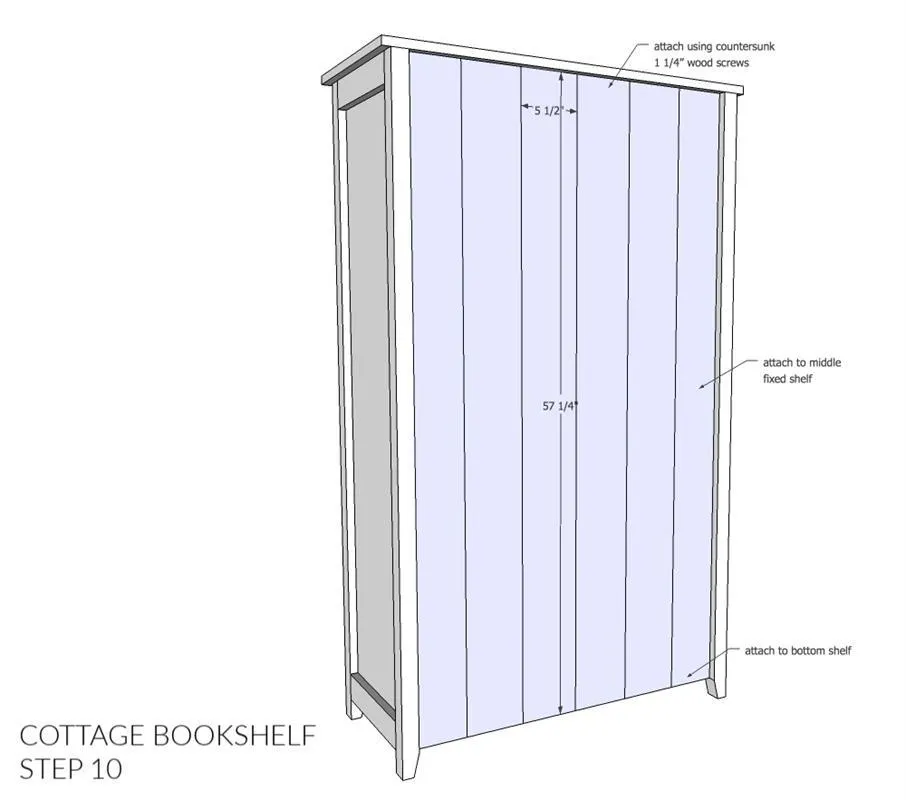

11Step 10
Attach tongue and groove backing to carcass using countersunk 1 1/4" wood screws.
