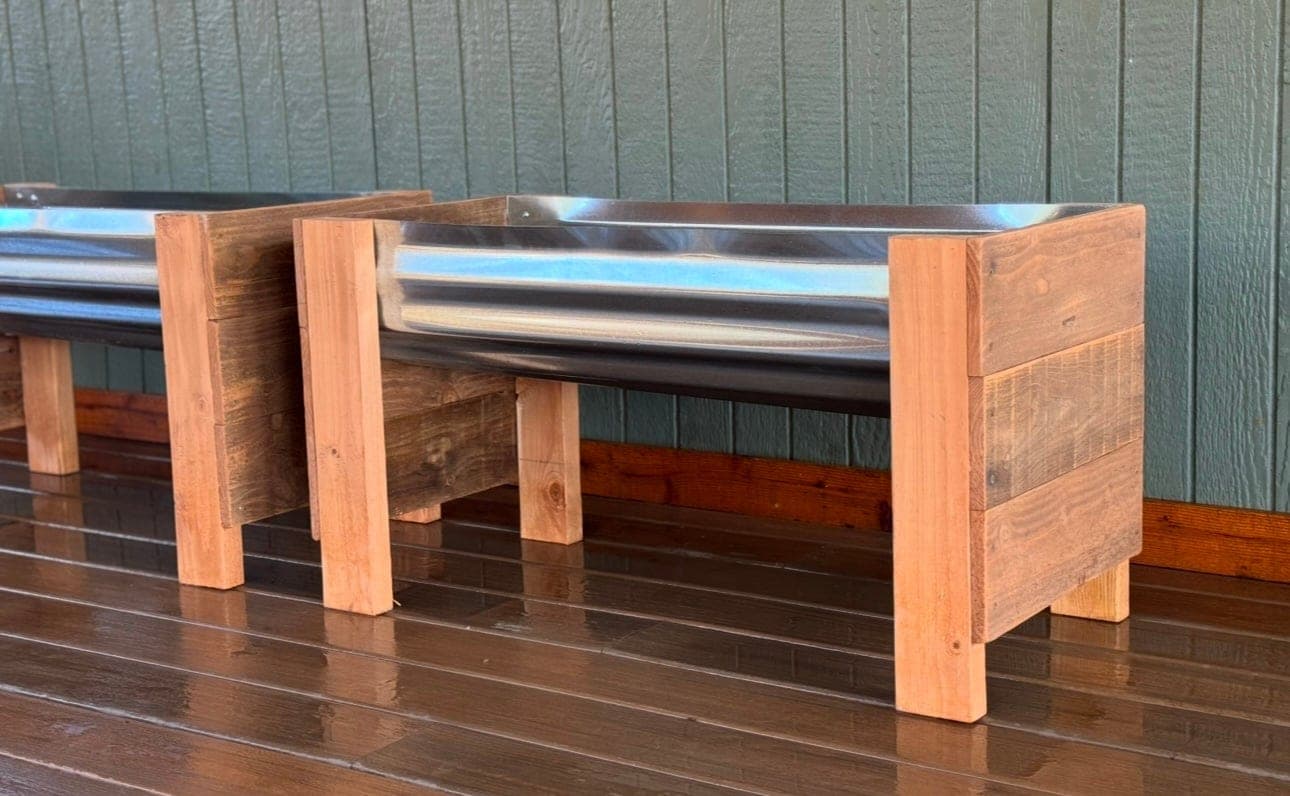

This is the raised bed for people who want to be planting by lunch. The wood part is just two end assemblies — 2x4 legs clad with short cedar picket boards — and the entire body of the planter is a piece of corrugated metal roofing screwed to them. The corrugations do the structural work a wall of lumber would normally do: that ribbed profile is why roofing panels can span rafters, and here it's why the sides don't need studs, rails, or a frame between the ends.
The listed panel is 26" x 36", but the design scales with the material: a 36"-wide panel makes a deeper bed, and longer panels make longer beds — the pickets and 2x4s don't care. Metal roofing is sold in standard widths at every farm store, usually cheaper per square foot than any wood you'd replace it with.
Two things the steps won't forgive you for skipping. First: cut metal edges are SHARP, and so are the corrugation ends. File or tape any edge that ends up near the soil line where hands will work, or hide the cut edges against the wood ends. Second: use actual roofing screws (the kind with bonded rubber washers) to attach the tin — plain screws through metal leave ragged holes that weep rust streaks down the panel after the first watering.
Line it with landscape fabric, fill, plant. Choose red-toned or treated 2x4s — the legs sit against damp soil and ground splash for their whole service life.
| Item | Qty |
|---|---|
| 2x4, 8 ftRed-toned or treated — the legs live against damp soil. | 1 each |
| Cedar fence picket, 5-1/2" x 72", not dog-earedEnd cladding. | 2 each |
| Corrugated metal roofing, 26" x 36" panelA 36"-wide panel makes a deeper bed; longer panels make longer beds. Farm-store standard sizes. | 1 each |
| Exterior screws, 1-1/2", self-tapping, star driveWood-to-wood: legs and cladding. | 24 each |
| Roofing screws with washers, 1-1/4"The gasketed kind — they seal their own holes and stop rust streaks. | 16 each |
| Exterior wood glue | 2 oz |
| Landscape fabricLiner. Soil goes in it, not against bare tin and cedar. | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Legs2x4 | 4 | 1 1/2" × 3 1/2" × 20" |
| End claddingCedar fence picketThree boards per end, screwed across the leg pairs. | 6 | 5/8" × 5 1/2" × 18" |
Buy 3 boards at 8 ft.
1 board
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
For each end, lay a pair of 20" legs parallel and screw three 18" picket boards across them with the 1-1/2" screws and glue — a little ladder, pickets on the outside face.
Build the second one on top of the first so they match exactly. These two frames are the entire skeleton; if they agree with each other, the planter comes out square on its own.
Bend the corrugated panel around between the two end assemblies and screw it to the legs with the gasketed roofing screws — drive through the ribs into the 2x4s, snug enough to seat the washer without crushing the corrugation. Space the screws evenly; the tin carries the soil load out to the legs through those fasteners.
Check for any sharp cut edge at the soil line and file or hide it. Line the inside with landscape fabric, set the bed in its final sunny spot, fill with soil, and plant. Total elapsed time should embarrass every other project you own.
