Christmas Bell Stand

Instructions

1. 1Introduction

   Please be sure to read through complete instructions before you begin any work on this project.

2. 2Cut all parts from 3/4" board

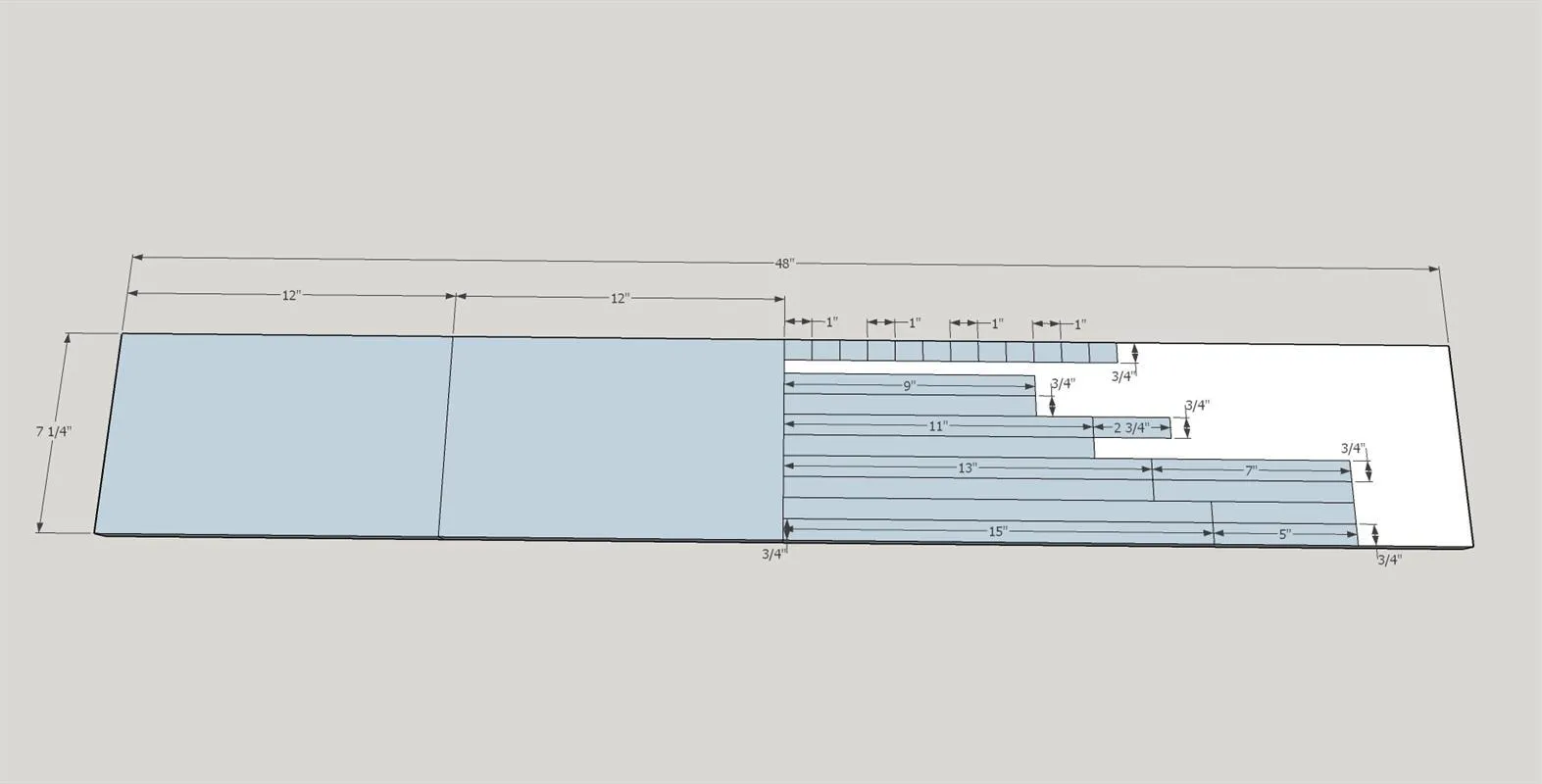

   Cut all of the parts from 3/4" board (I used Oak).

3. 3Edge Join the base pieces

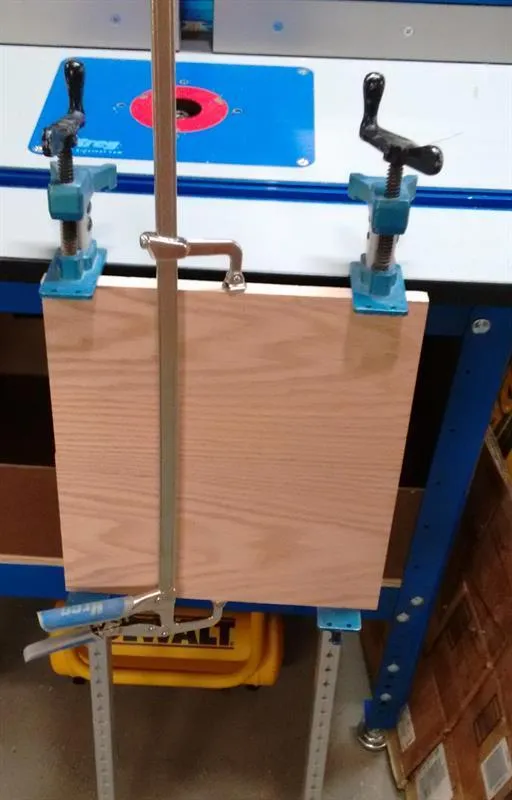

   For the base we edge glue the two 3/4" X 12" X 7 1/4" boards. If you are uncomfortable doing this I have attached one site with good information on the process. Please feel free to look at other sites. I normally use my Jet jointer to square and flatten the edges. Lay out the boards to provide the best looking grain. Use multiple clamps to bring the boards together. Make sure that the edges fit together well. Release the clamps and spread Titebond glue along all of the edges to be joined. Avoid using excess glue. Realign the boards and clamp snugly. A picture of the clamp up follows.

4. 4Preparing the beam ends

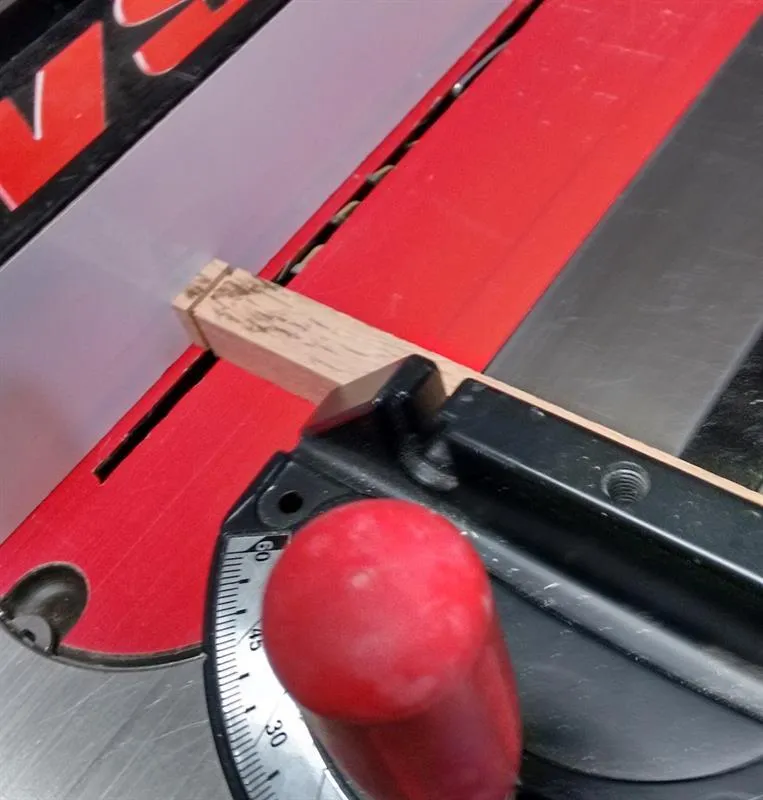

   Small dados are cut around the ends of the 12 cross beams. Use a table saw with the rip fence set at 1/4" and the blade depth set at 1/16" to cut dadoes in all four sides of each end of the cross beams. Use the mitre guage to hold the beams square to the blade.

5. 5Drill the cross beams

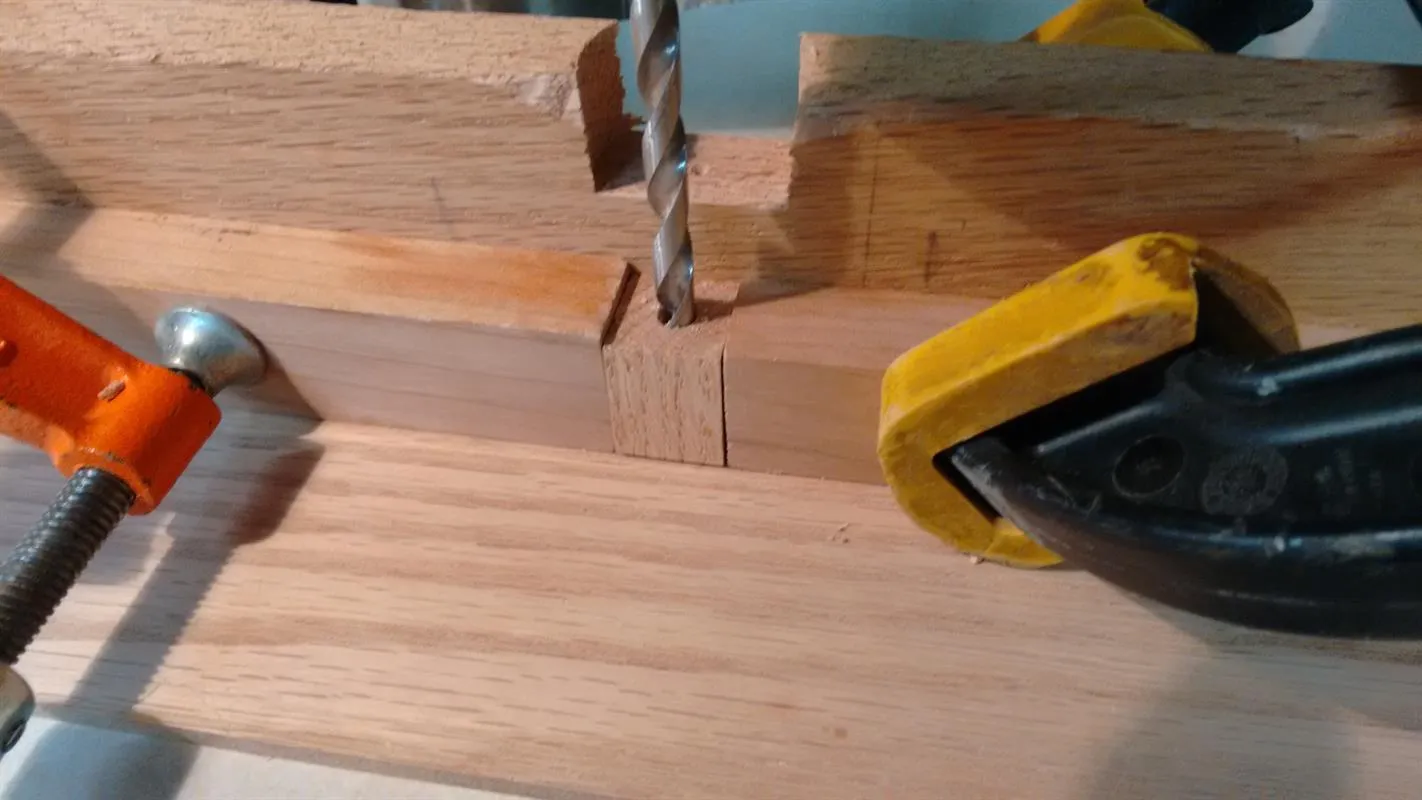

   Use a drill press with a 1/4" bit to put a hole in the exact center of all 12 cross beams.

6. 6Drill the spacers

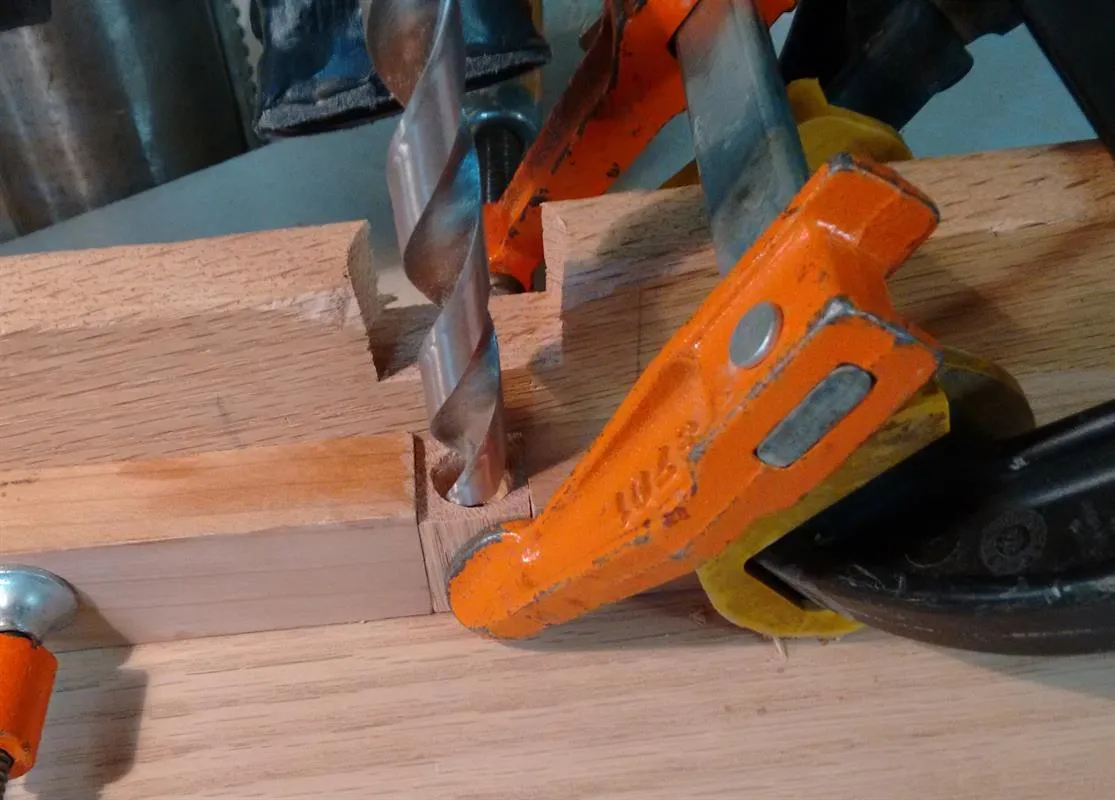

   Using a drill press with a 1/4" bit put a hole in the center (top to bottom) of the 12 short spacers and the bottom spacer.

7. 7Countersink the top spacer

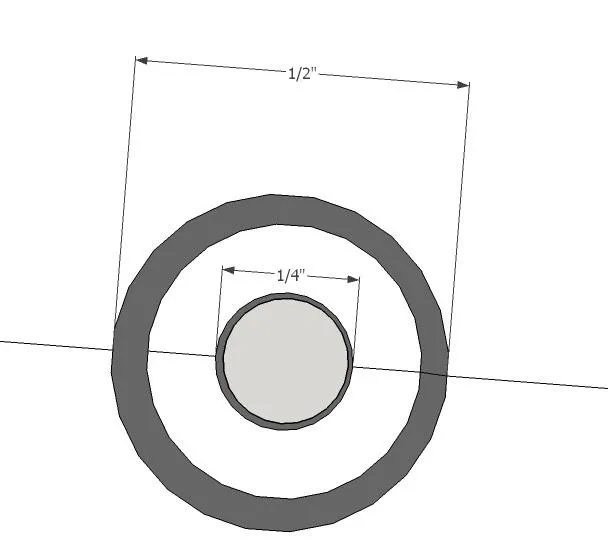

   Using a drill press with a 1/2" bit make a 1/2" deep countersink in the top spacer. This will hold the upper lock nut.

8. 8Prepare the base

   Once the base is dry, cut it to its 12" X 12" final dimension. Use a roundover bit, in your router table, to smooth all four edges of the base. On the bottom of the base use a drill press to first drill a 1/2" wide by 1/2" deep countersink and then a 1/4" hole through the exact center of the base.

9. 9Layout the upper stand

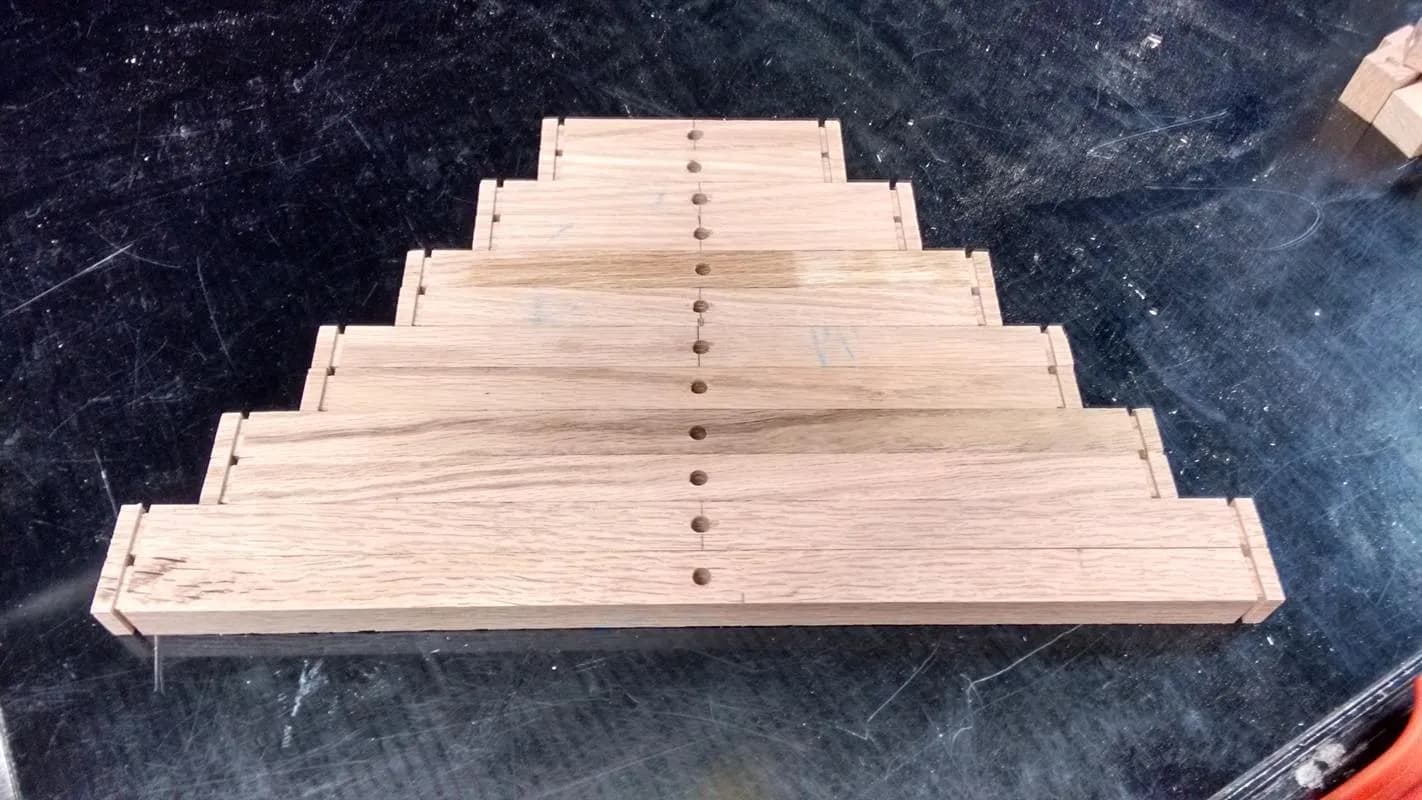

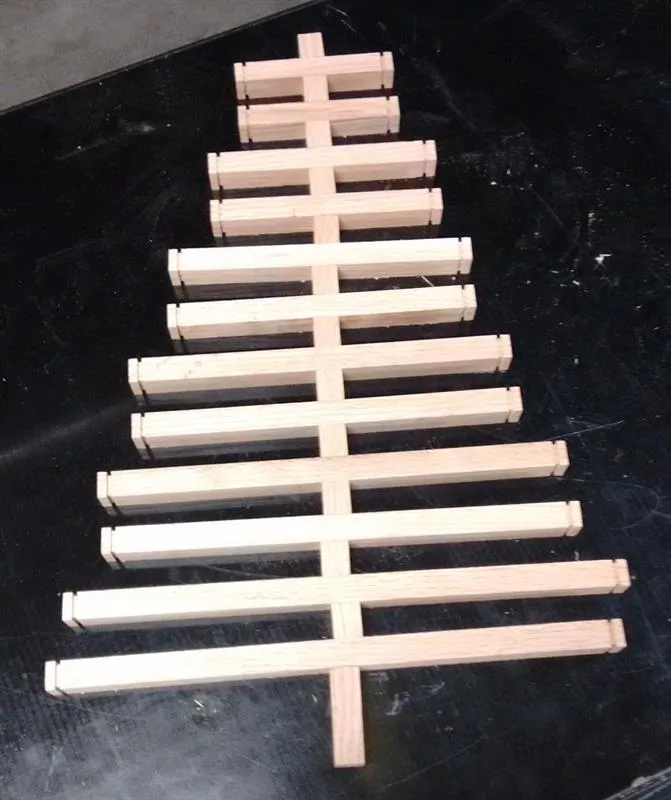

   Layout the cross beams and spacers which make up the upper stand as shown in the following picture.

10. 10Assemble the stand

    Put a locking nut on one end of the 1/4" threaded rod. Starting at the top of the upper stand begin sliding the end of the rod, without the nut, through the top spacer and cross beam - continue doing this until all cross beams and spacers are on the rod. Finish by sliding the rod through the 1/4" hole in the top of the base. From the bottom of the base place the other 1/4" locking nut on the end of the rod. Tighten the nuts until the assembly is held together and moving the cross beams requires some effort.

11. 11Sand and display the stand

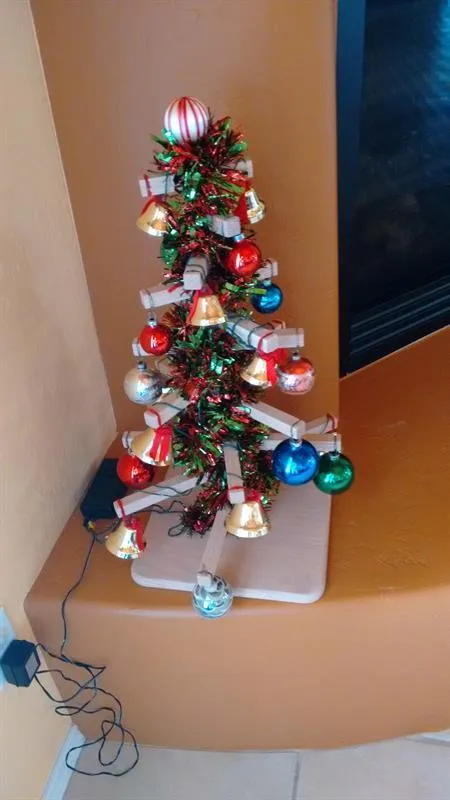

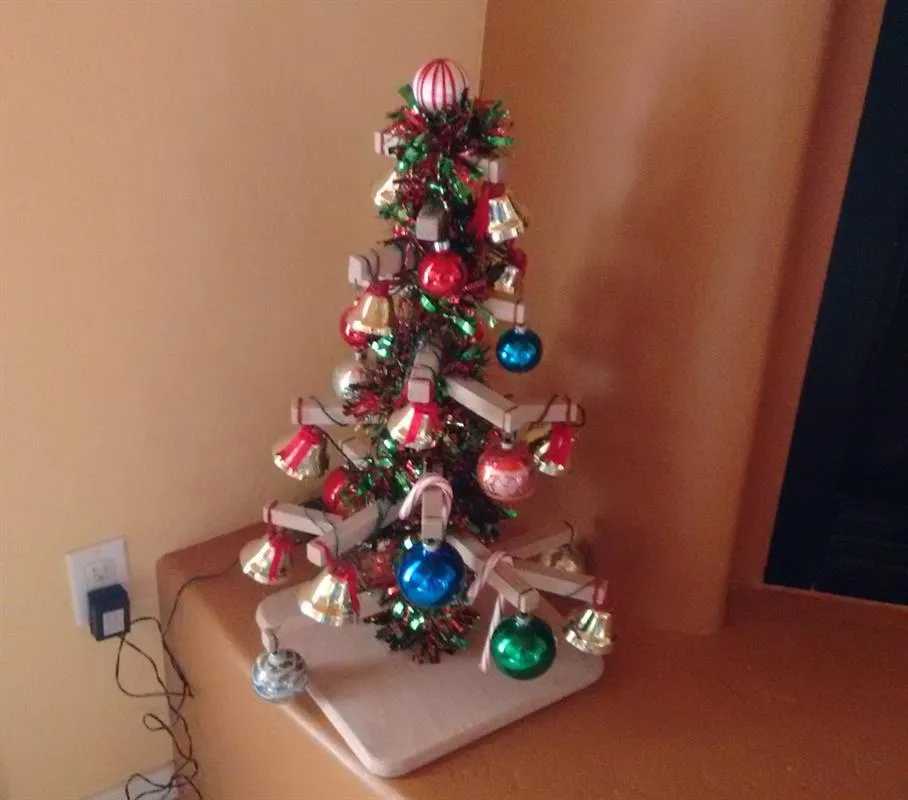

    Use 100 through 220 grit sandpaper to smooth out the surfaces of the stand. Now use your garland, candy canes, beads, bells, balls and ornaments to finish your holiday display.
