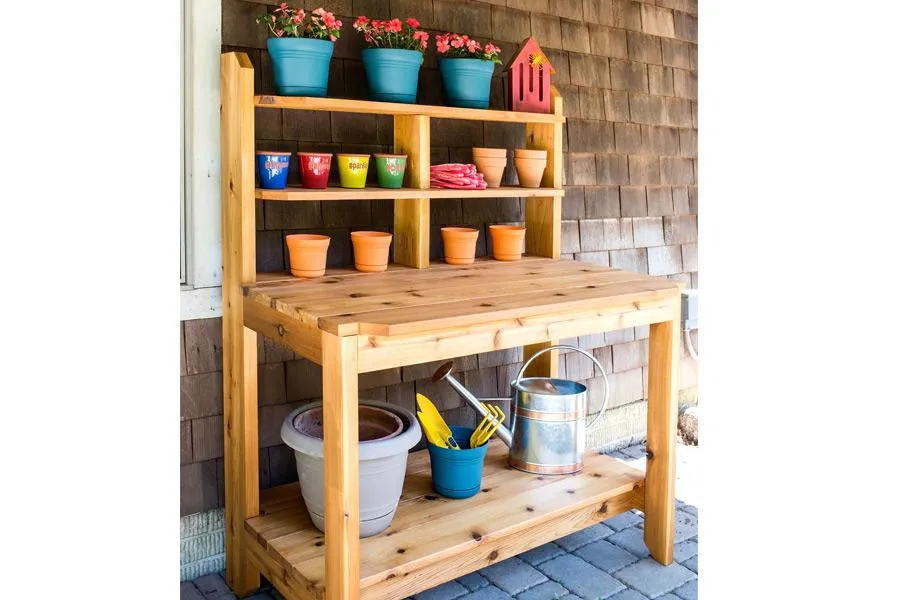

Built-To-Last Potting Bench

Instructions

1. 1Make the Legs

   Cut two Front Legs to length from a 2x4 board (we used cedar for this bench), and cut two Back Legs to length from a 2x6 board, as shown in the cutting diagram. Then, using a miter saw of jig saw, cut the angled ends on each Leg, as shown.

2. 2Make the End Rails

   • Cut four End Rails to length from 2x4 boards, as shown in the cutting diagram. With your Kreg® Pocket-Hole Jig set up for 1 1/2"-thck material, drill pocket holes in the ends of all four pieces, as shown.
   • Now change your jig and bit setup to 1" material.
   • Then drill holes along the edge of two pieces to make a pair of Top End Rails.
   • Then drill pocket holes along the edge of the other two pieces to create Right and Left Bottom End Rails, as shown. Note that on the Bottom End Rails, the pocket-hole spacing id different.

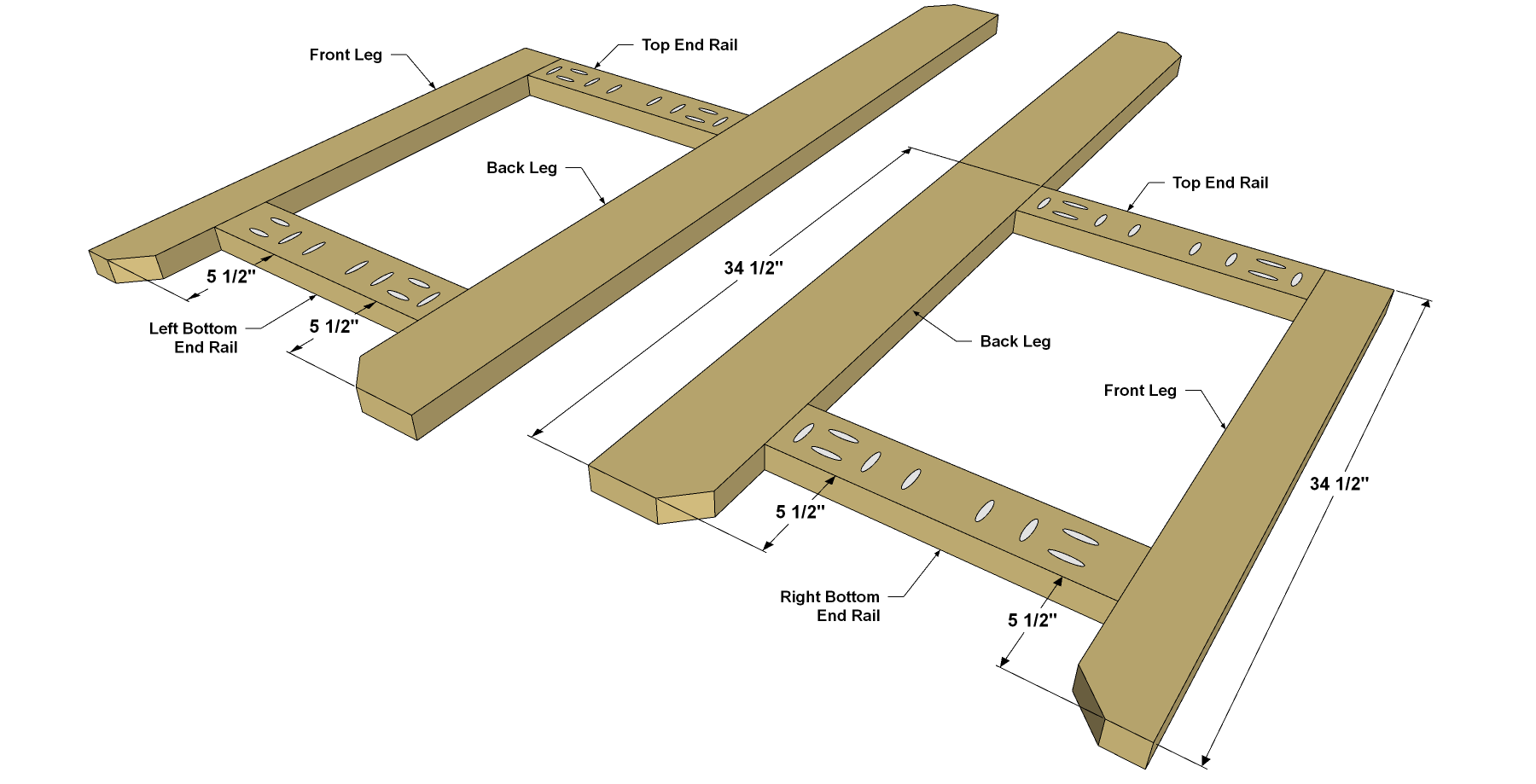

3. 3Create the Ends

   Now you can attach the End Rails to the Legs using 2 1/2" Kreg Blue-Kote™ Pocket-Hole Screws. Make sure you have all of the End Rails in the proper positions, and that the pocket holes are all oriented in the same direction.

4. 4Make Side Rails and Stretchers

   • Cut four Side Rails, two Top Stretchers, and two Bottom Stretchers to length from 2x4 boards, as shown in the cutting diagram. With your pocket hole jig set up for 1 1/2" material, drill pocket holes in the ends of all of the pieces, as shown.
   • Now change your jig and bit setup to 1" material.
   • Then drill holes along the edge of all the pieces, as shown.

5. 5Assemble the Top Rails and Stretchers

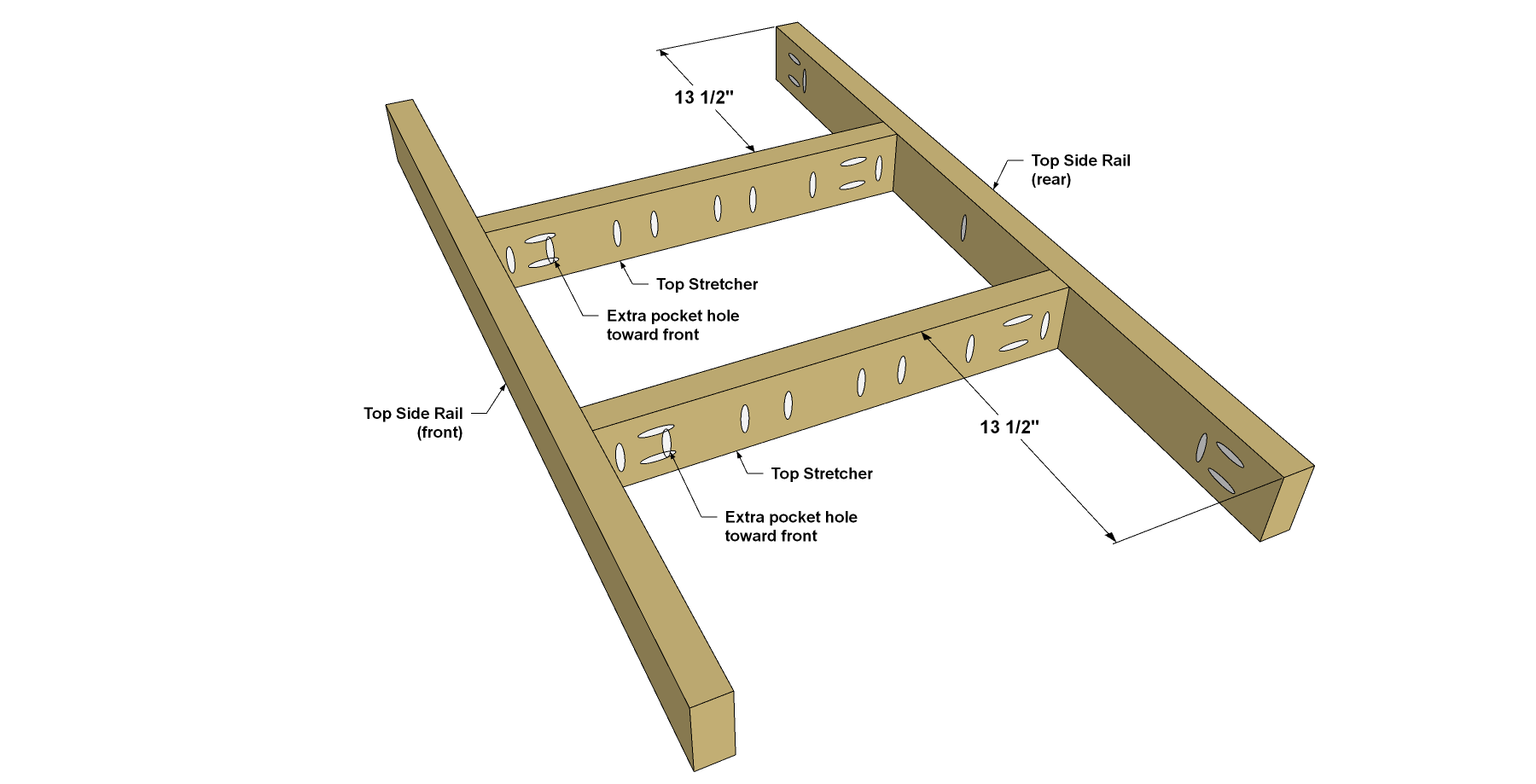

   Now you can attach the Top Stretchers to the Top Side Rails using 2 1/2" Kreg Blue-Kote™ Pocket-Hole Screws. Make sure that the pocket holes are all oriented in the same direction.

6. 6Assemble the Bottom Rails and Stretchers

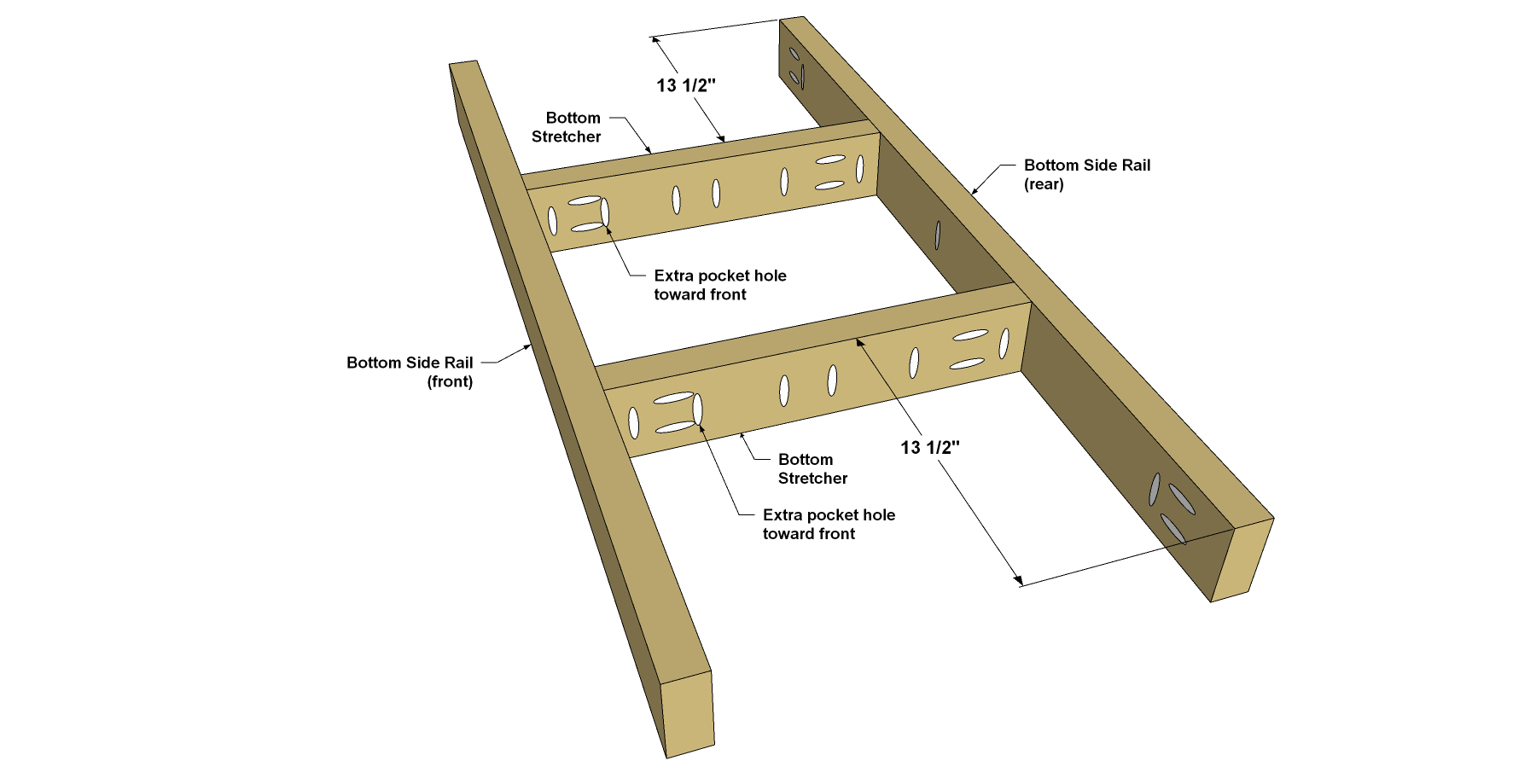

   Next, attach the Bottom Stretchers to the Bottom Side Rails using 2 1/2" Kreg Blue-Kote™ Pocket-Hole Screws. Make sure that the pocket holes are all oriented in the same direction.

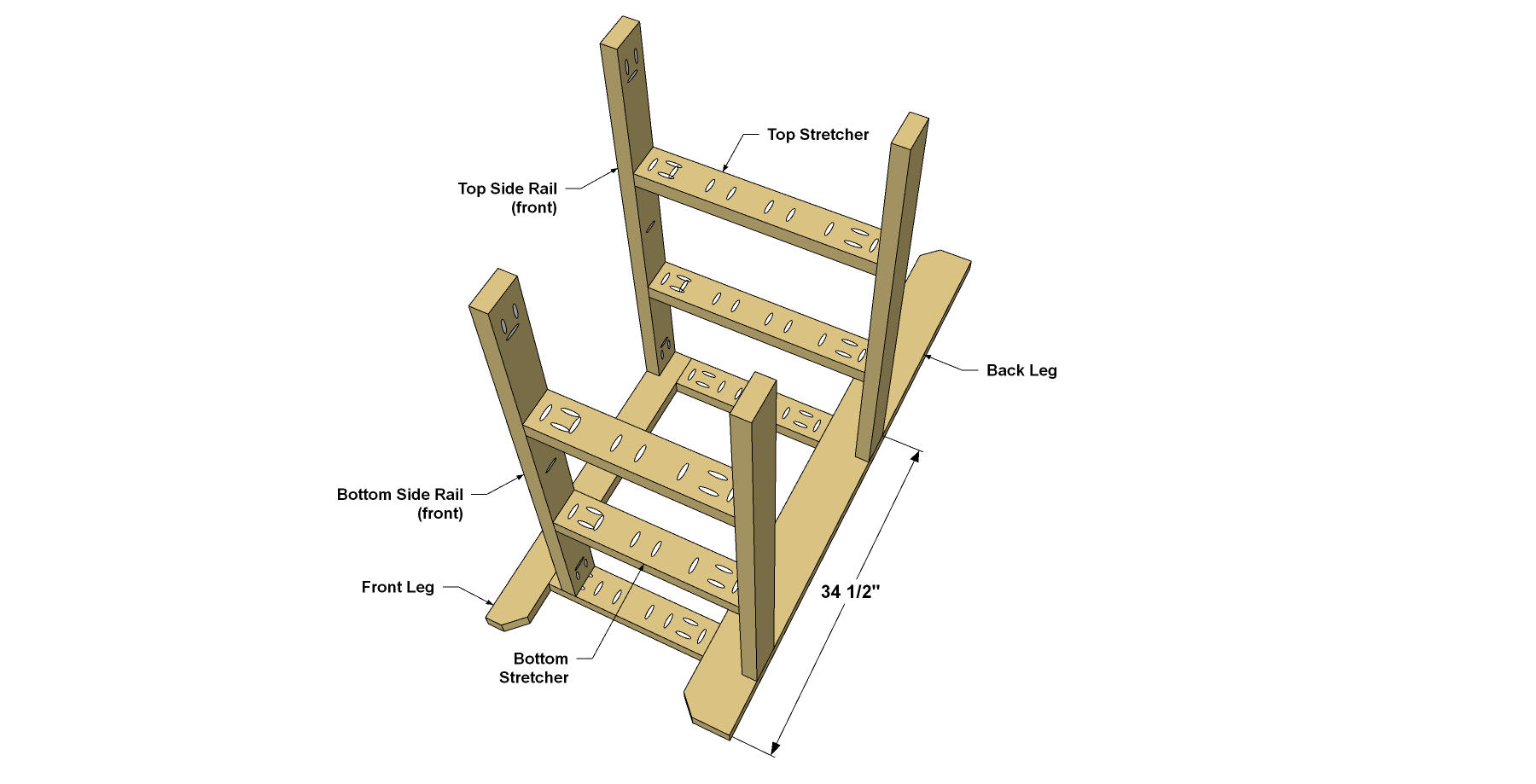

7. 7Attach the Leg Assemblies

   With these Rail/Stretcher assemblies complete, you can attach them to the Leg assemblies using 2 1/2" Kreg Blue-Kote™ Pocket-Hole Screws. Attach to one Leg assembly first, and then add the other Leg Assembly. Make sure that the pocket holes in the Rails and Stretchers are oriented correctly for attaching the Slats later.

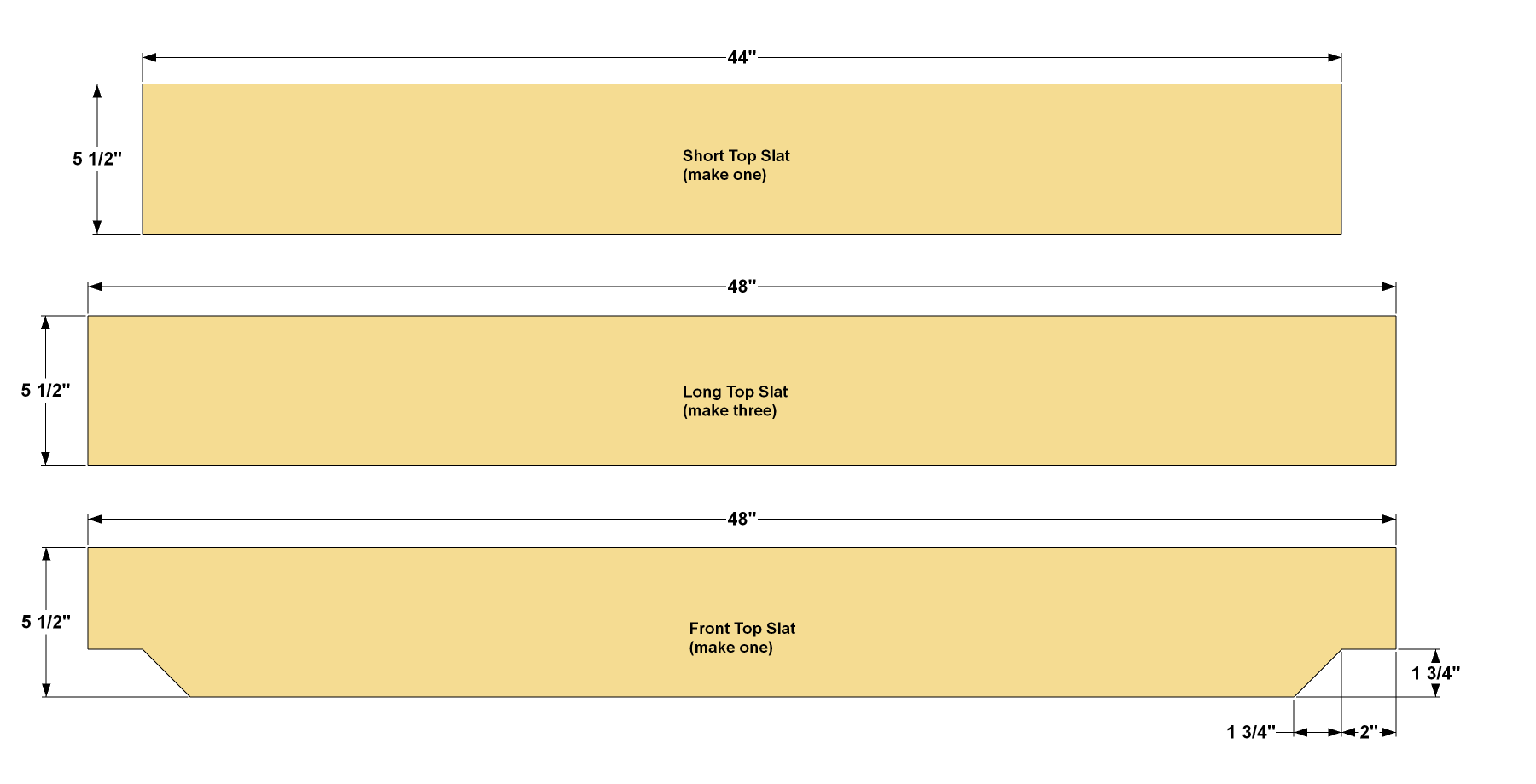

8. 8Cut Top Slats to Size

   Cut three Long Top Slats, one Short Top Slat, and one Front Top Slat to size from 5/4 (1"-thick deck boards, as shown in the cutting diagram. Then cut the notches on the Front Top Slat, as shown.

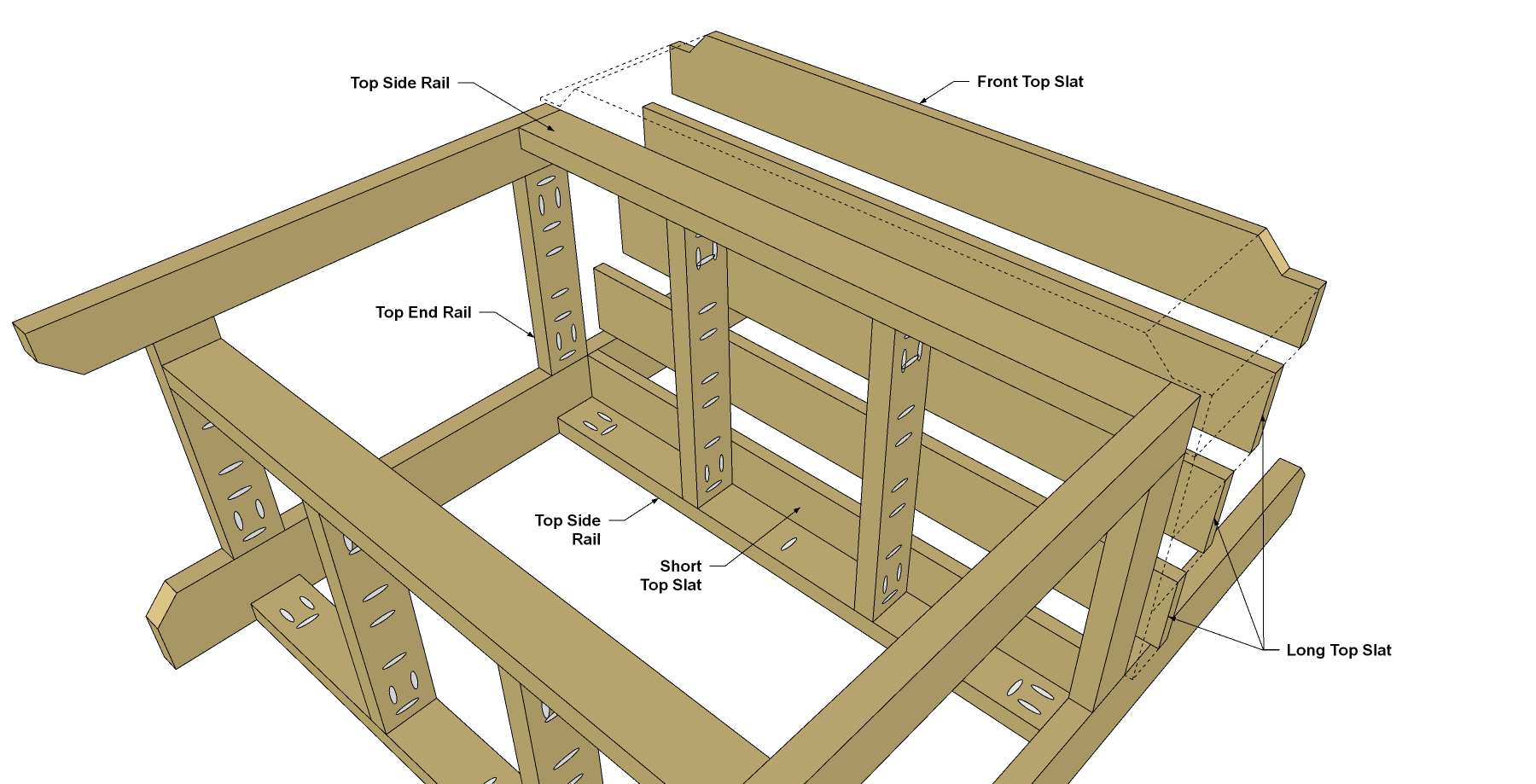

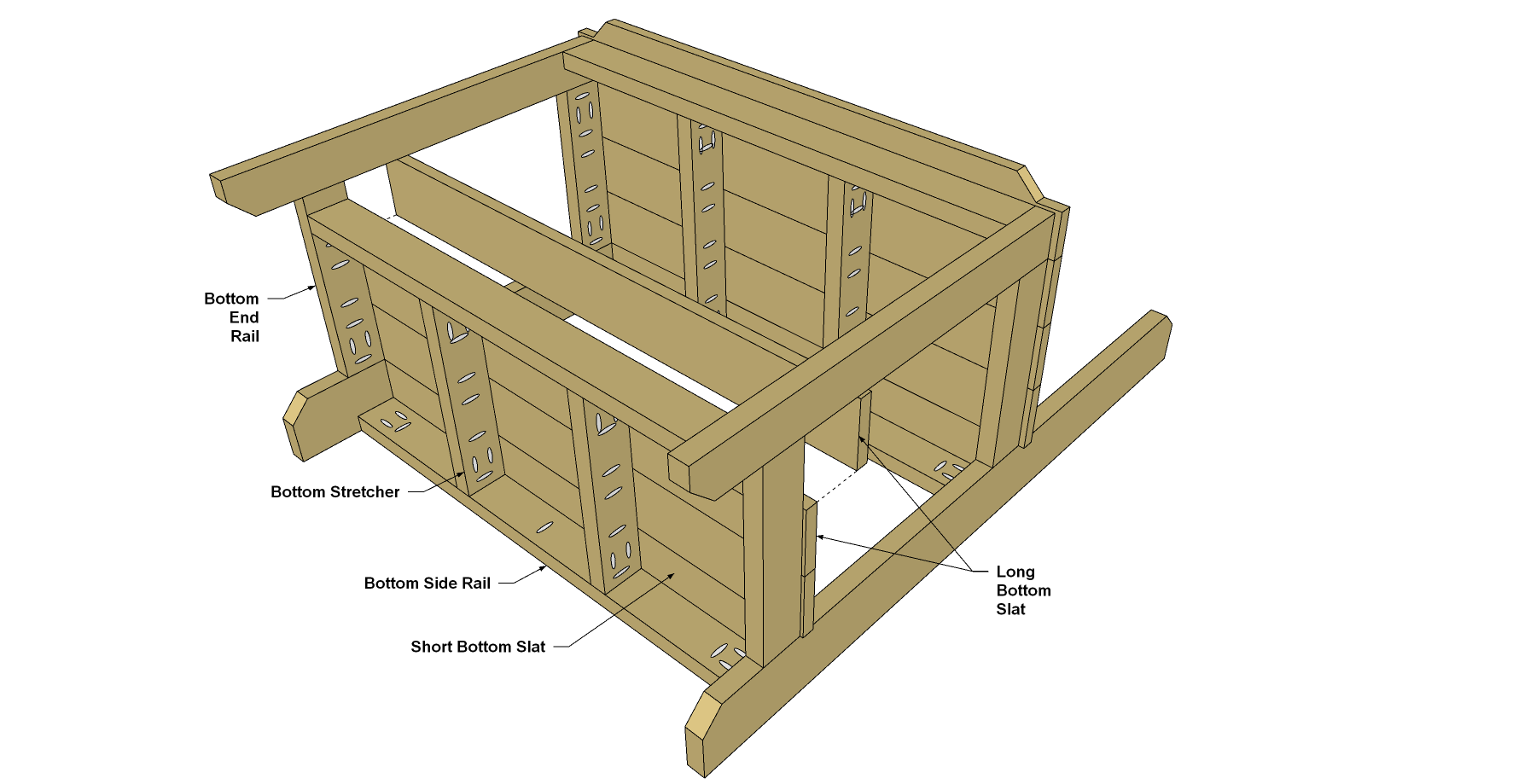

9. 9Attach the Top Slats

   • Next, attach the Top Slats to the base of the bench.
   • Start by aligning the Short Top Slat with the Rear Top Side Rail.
   • Then position the Long Top Slats so they overhang equally on each end.
   • Finally, position the Front Top Slat.
   • Attach them all using 1 1/2" Kreg Blue-Kote™ Pocket-Hole Screws.

10. 10Add the Bottom Slats

    • Cut three Long Bottom Slats, and one Short Bottom Slat to size from 5/4 (1"-thick) deck boards, as shown in the cutting diagram.
    • Then attach them to the bench base using 1 1/2" 1 1/2" Blue-Kote™ pocket-hole screws. Make sure the Long Bottom Slats overhang equally at each end.

11. 11Cut the Shelves and Risers

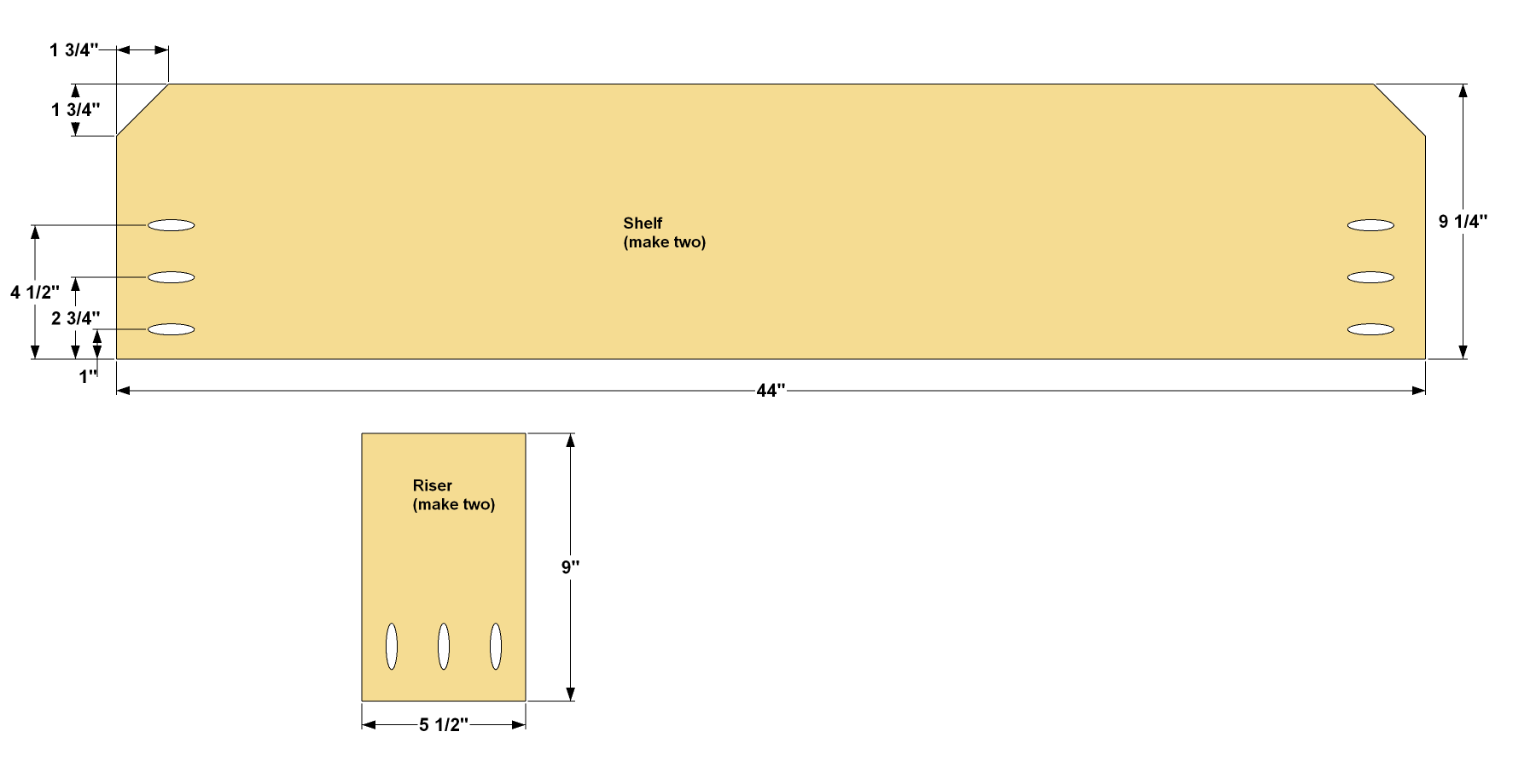

    • Cut Two Shelves to length from a 1x10 board, as shown in the cutting diagram.
    • Then cut the notches on the ends of the Shelves. With your pocket hole jig set up for 3/4"-thick material, drill pocket holes in the Shelves, as shown.
    • Cut Two Shelf Risers to length from a 2x6 board, as shown in the cutting diagram. With your pocket hole jig set up for 1" material, drill pocket holes in the Risers, as shown.

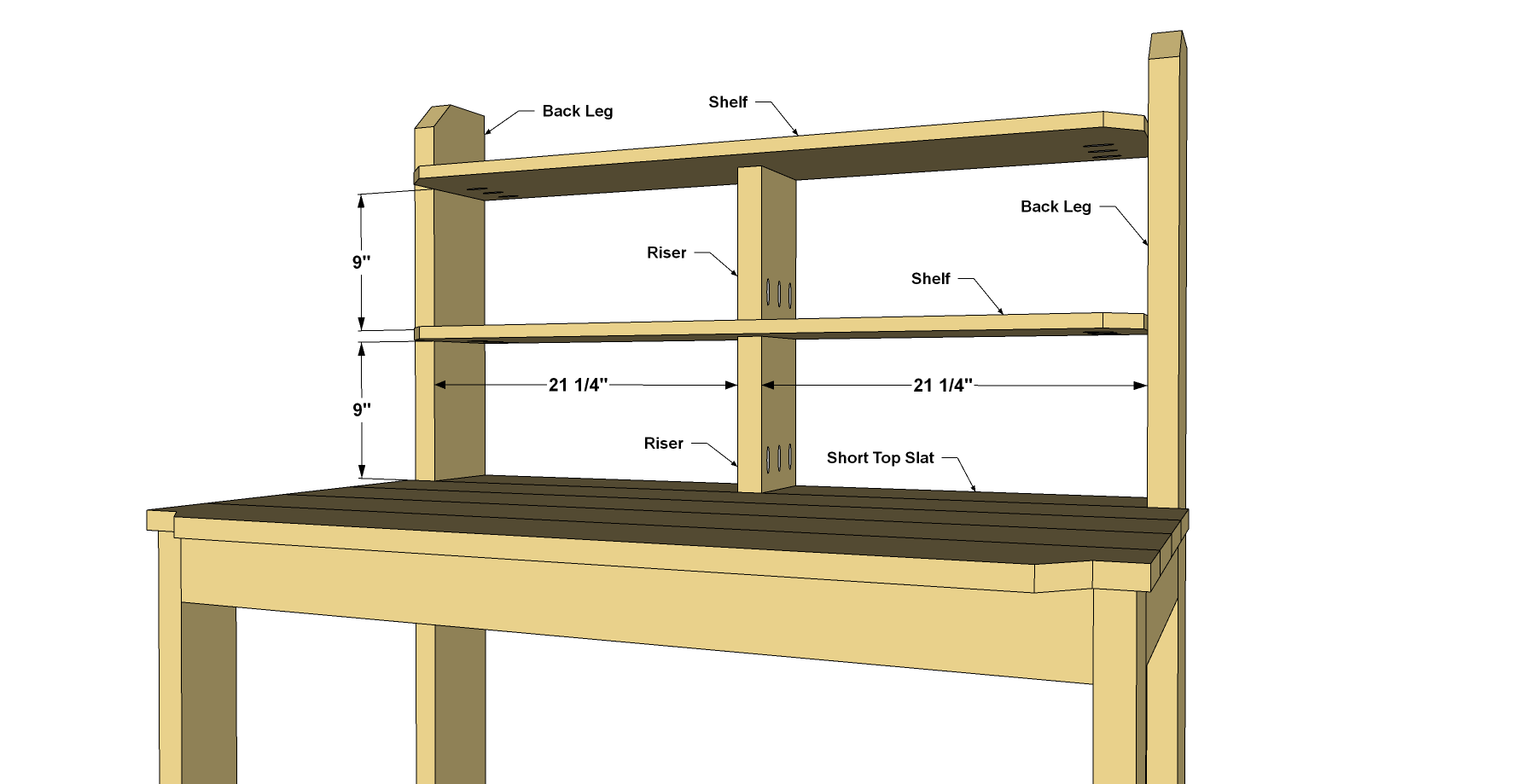

12. 12Install the Shelves

    • Attach the Bottom Riser to the Short Top Slat using 1 1/2" Blue-Kote™ pocket-hole screws.
    • Attach the first Shelf to the Back Legs using 1 1/2" Blue-Kote™ pocket-hole screws.
    • Then attach the Top Riser to the Bottom Back Shelf using 1 1/2" Blue-Kote™ pocket-hole screws.
    • Finally, add the Top Back Shelf by attaching it to the Back Legs using 1 1/2" Blue-Kote™ pocket-hole screws. Protect your potting bench with outdoor stain or exterior paint.
