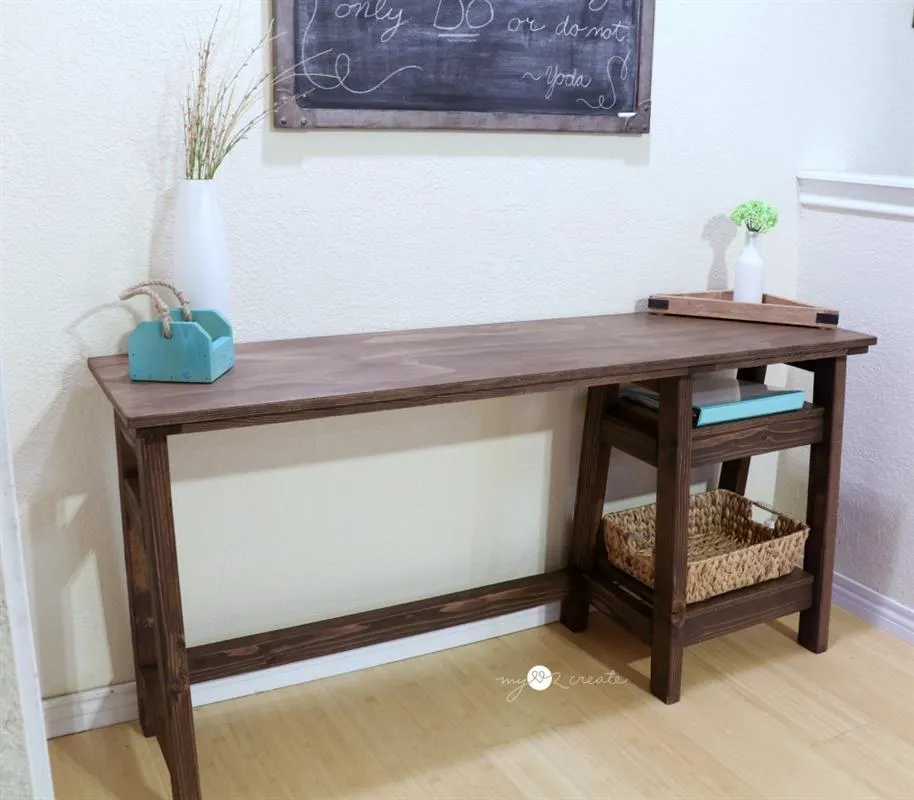

Update your home office with this beautiful contemporary desk! Featuring a narrow a-frame design and two fixed shelves for extra storage. This desk combines function and style to compliment your working and decorating needs perfectly!
| Item | Qty |
|---|---|
| Plywood, 3/4" Thick Half Sheet | 1 board |
| Board, 2x3 96" | 4 board |
| Board, 1x3 96" | 2 board |
| 2 1/2'' Pocket hole screws | 150 each |
| 1 1/4'' Pocket hole screws | 50 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Plywood Desk Top | 1 | 3/4" × 16" × 60" |
| Plywood Top Shelf | 1 | 3/4" × 10" × 16" |
| Plywood Bottom Shelf | 1 | 3/4" × 12" × 16" |
| A-frame top rail | 3 | 1" × 2" × 6" |
| A-frame middle rail | 3 | 1" × 2" × 7" |
| A-frame bottom rail | 3 | 1" × 2" × 10" |
| A-frame legs | 6 | 1" × 2" × 27" |
| Shelf Supports | 4 | 1" × 2" × 16" |
| Back Bottom Support | 1 | 1" × 2" × 37" |
| Top frame rails | 4 | 3/4" × 2" × 10" |
| Top frame stiles | 2 | 3/4" × 2" × 59" |
Buy 9 boards at 8 ft.
4 boards
1 board
1 board
1 board
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

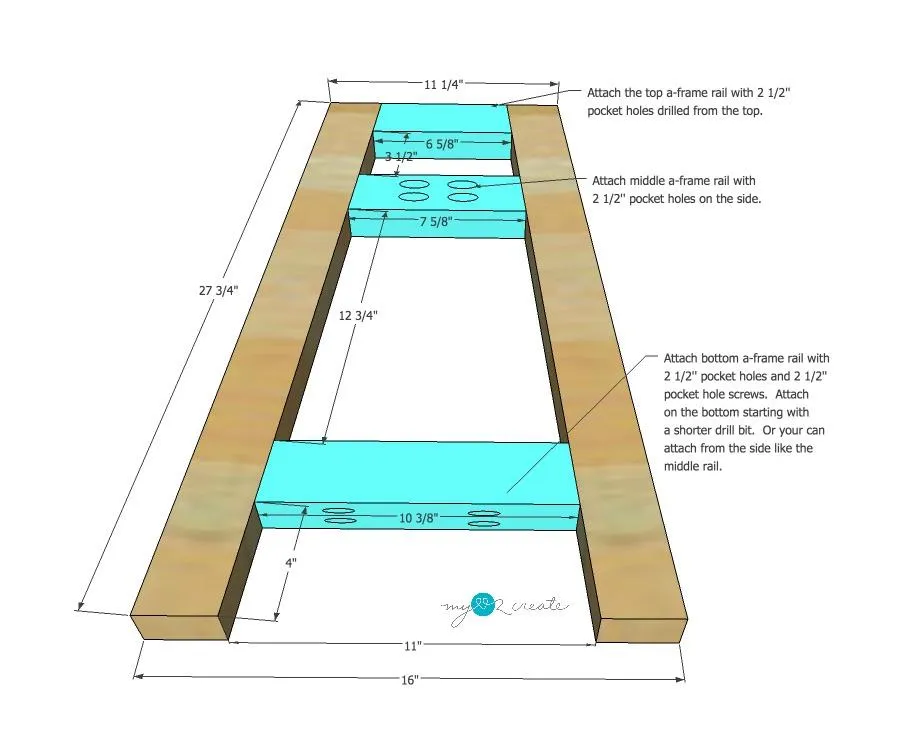

You will need to build three a-frame sides as shown in the photo. Each side will have two legs and an a-frame top, middle and bottom rail. Drill 2 1/2'' pocket holes into the rails. For the top rail drill them into the 1 1/2'' top (short side), the middle rail on the 2 1/2'' sides, and the bottom on the 1 1/2'' bottom (long side). Use wood glue and clamps to secure your sides as you drill. For tighter areas, you may need to use a shorter drill bit to get started (bottom).

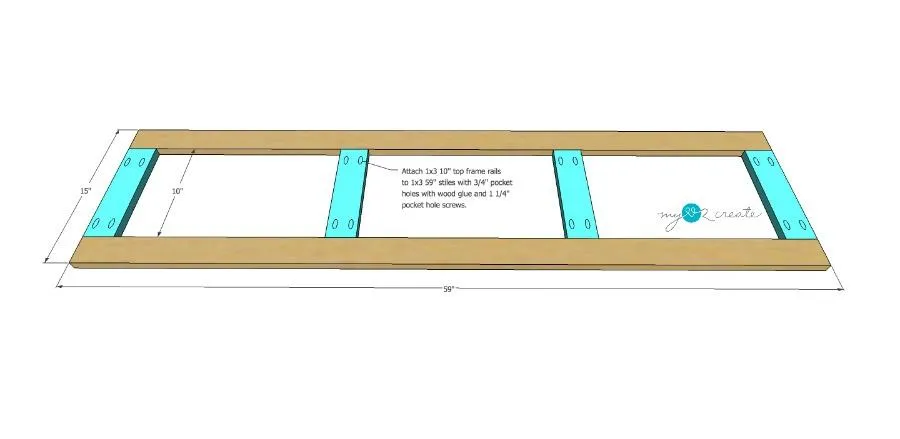

Build the top frame as shown by attaching the rails to the stiles with 3/4'' pocket holes and 1 1/4'' pocket hole screws and wood glue. Always clamp your joints to keep them secure when adding your screws to avoid the wood shifting.

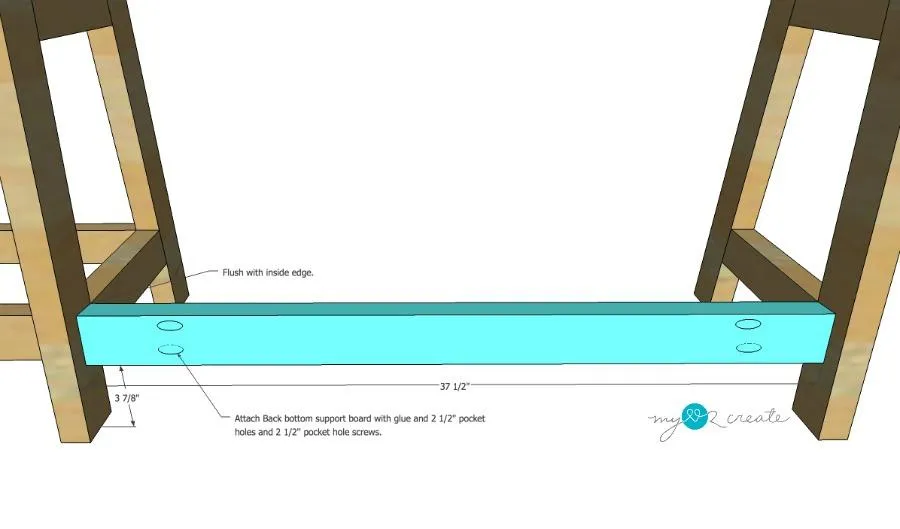

Attach the last A-frame side with the back bottom support board using 2 1/2'' pocket holes and 2 1/2'' pocket hole screws as shown.
