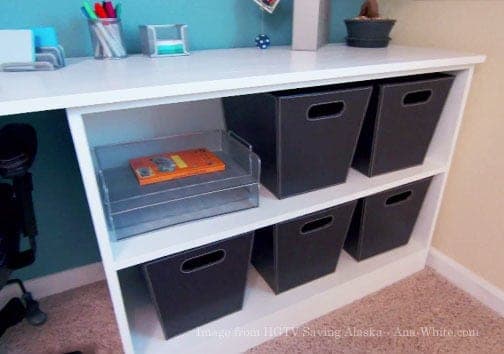

This is a component build rather than a finished piece on its own: a simple two-shelf plywood box, sized 16" deep so it reads as a proper bookshelf rather than a shallow desk pedestal, meant to stand alongside other base modules under a shared desktop. Fixed shelves rather than adjustable ones keep the box itself rigid, which matters more here than in a standalone bookcase since this base also has to carry the desktop's load without racking.
The back panel is optional in the source but worth adding even though it isn't strictly needed to hold books: it's attached to the center shelf specifically for extra support, the same logic behind adding backing to any wide, deep shelf carrying real weight. If you're building more than one base for a full system, cut every module's sides from the same sheet in one session — sheet goods vary slightly between batches, and matching modules built weeks apart is where an otherwise-invisible seam shows up.
| Item | Qty |
|---|---|
| Plywood, 3/4", half sheetRipped into 15-3/4" wide strips at the store — about 12 ft total needed. | 1 each |
| Pine, 1x2, 8 ft | 1 each |
| Pine, 1x4, 8 ft | 1 each |
| Pocket hole screws, 1-1/4" | 1 box |
| Brad nails, 1-1/4" | 1 box |
| Wood glue | 2 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| SidesPlywood | 2 | 3/4" × 15 3/4" × 29 1/4" |
| ShelvesPlywood | 2 | 3/4" × 15 3/4" × 39 1/2" |
| Bottom footerPine | 2 | 3/4" × 3 1/2" × 39 1/2" |
| Top supportsPine | 2 | 3/4" × 1 1/2" × 39 1/2" |
Buy 4 boards at 8 ft.
2 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the 1x4 footer boards to the bottom of the sides with pocket holes, all set on the 3/4" jig setting with 1-1/4" pocket hole screws.
Attach the shelves with pocket holes as fixed shelves — fixed rather than adjustable is what keeps this base rigid enough to carry a desktop's load. Also attach the middle shelf to the footer boards with 1-1/4" finish nails and glue for extra reinforcement.
Attach the 1x2 top supports with pocket holes on top — the desktop will hide them once installed. Attach the desktop (minimum 16" wide x 41" long) from underneath into these 1x2s.
A back panel from 1/4" plywood, attached to the center shelf, adds support if this base will carry real weight regularly.
